Trane Foundation ECC180-300 - Downflow Unit Clearance and Economizer Views

14
RT-SVX50M-EN

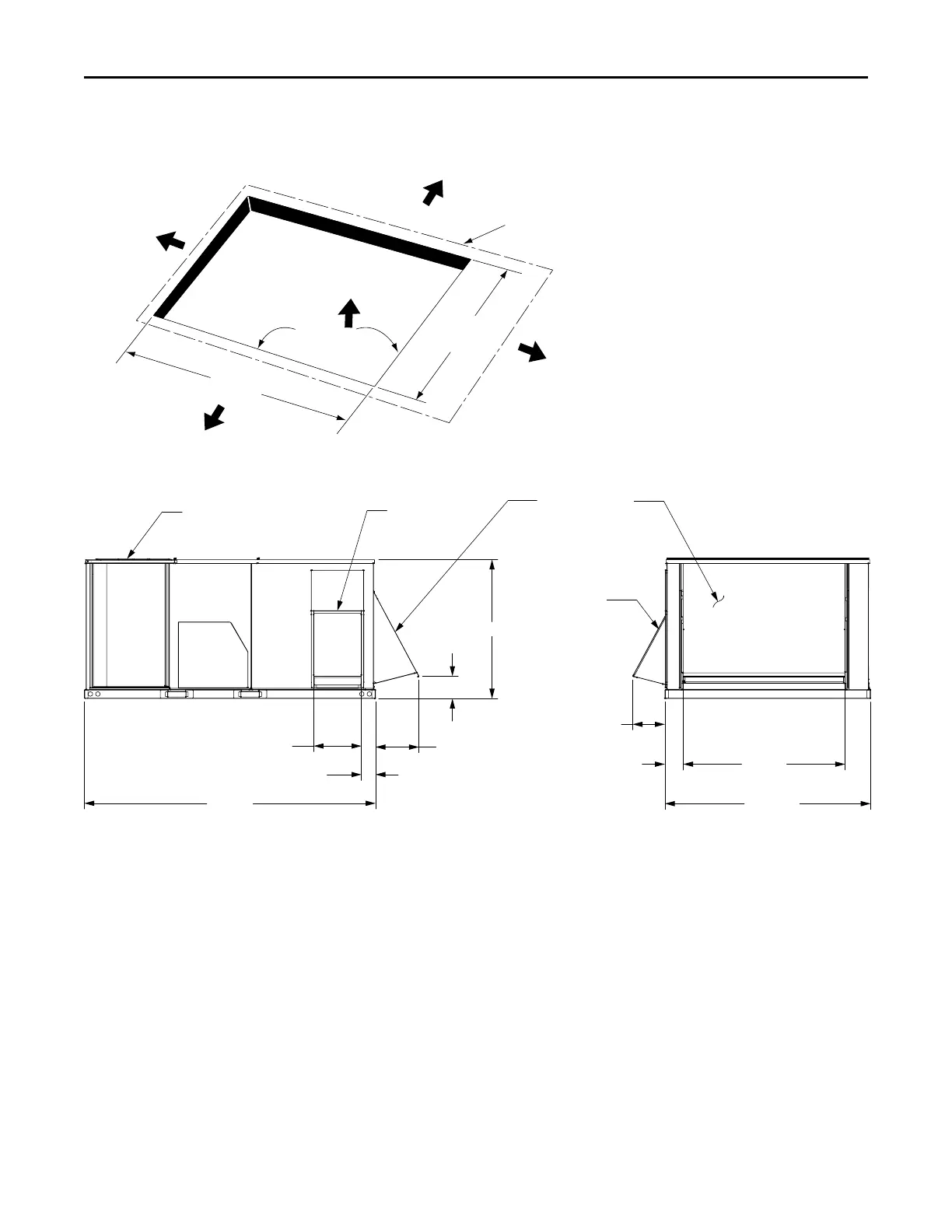

Figure 8. Cooling with optional electric heat — downflow unit clearance
UNIT OUTLINE
CLEARANCE 36”
914 MM
CLEARANCE 48”
1219 MM
CLEARANCE 60”
1524 MM
CLEARANCE 68”
1727 MM
76 1/2”
1943 MM
81”
2057 MM
ROOF
OPENING
CLEARANCE FORM
TOP OF UNIT 72” MM (1829 MM)
Figure 9. Cooling with optional electric heat — barometric relief and economizer
NOTES:
1. VERIFY WEIGHT, CONNECTION AND ALL DIMENSIONS WITH INSTALLER DOCUMENTS BEFORE INSTALLATION.
2.BAROMETRIC RELIEF IS FOR USE WITH A DOWNFLOW ECONOMIZER ONLY.
BACK VIEW OF UNIT
ECONOMIZER LEFT VIEW OF UNIT
123 1/8”
5 15/16”
20 3/16”
18 5/16”
(20 5/8” FOR LOW LEAK)
58
9 3/8”(5 3/8”
FOR LOW L
EAK)
BAROMETRIC
RELIFE
FAN
68 3/8”
86 15/16”
7 3/4”
13 5/8”
BA
ROMETRIC
RELIFE
ECONOMIZER OR
MOTORIZED DAMPER HOOD
Dimensional Data
