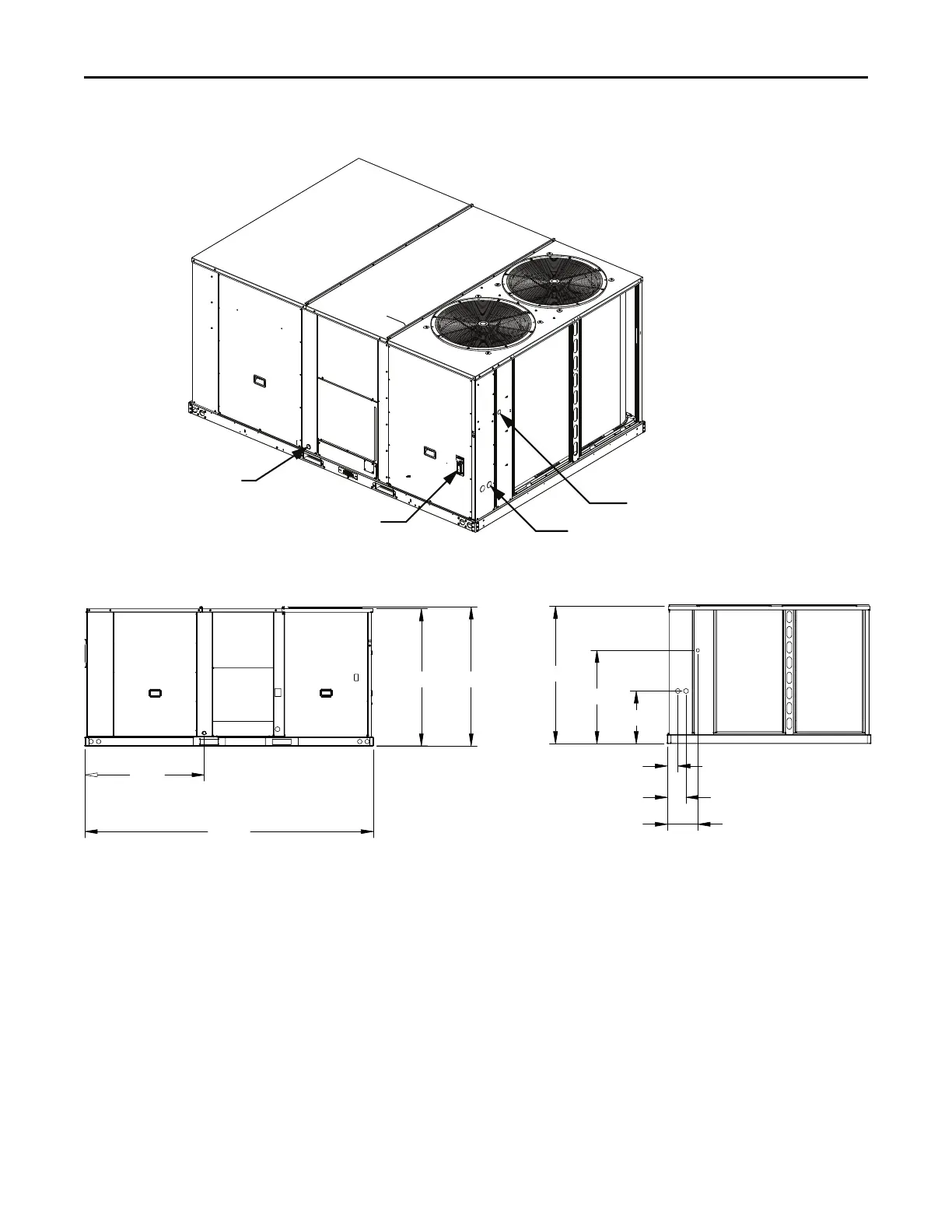

Figure 2. Cooling with optional electrical heat — overview (electric/electric)
CONDENSATE DRAIN
CONNECTION
DISCONNECT
SWITCH ACCESS
CUSTOMER POWER
CONDUIT CONNECTION (ALTERNATE)
REFRIGERANT GAUGE ACCESS
Figure 3. Cooling with optional electrical heat — front and side views (electric/electric)
NOTES:
1.THROUGH THE BASE ELECTRICAL IS NOT STANDARD ON ALL UNITS.
2.VERIFY WEIGHT, CONNECTION, AND ALL DIMENSIONS WITH INSTALLER DOCUMENTS BEFORE INSTALLATION.
13”
7 15/16”
4 1/2”
22 7/16”
39 13/16”
58 5/8”
58 5/8” 59 5/16”
123 1/8”
50 7/8”
Dimensional Data
