Table 9. Ground wire torque
Ground wire size (AWG) Torque(in-lbs)
10 - 14 35
8 40
4 - 6 45
2/0 - 0 50
Note: Wire size for the length of run should be determined
using the circuit ampacity found on the unit
nameplate and the N.E.C.
4. Route low voltage (class II), control wiring through hole
in base of unit but not through high voltage conduit.
Feed control wiring through bushing provided on side
panel. Route wires through loose wire ties provided.
5. Tighten the wire ties. Secure the excess wire bundle
under the wire ties in the outdoor section. Do not leave
excess wire in the electrical enclosure. Use the unit
wiring diagram to make the low voltage connections.

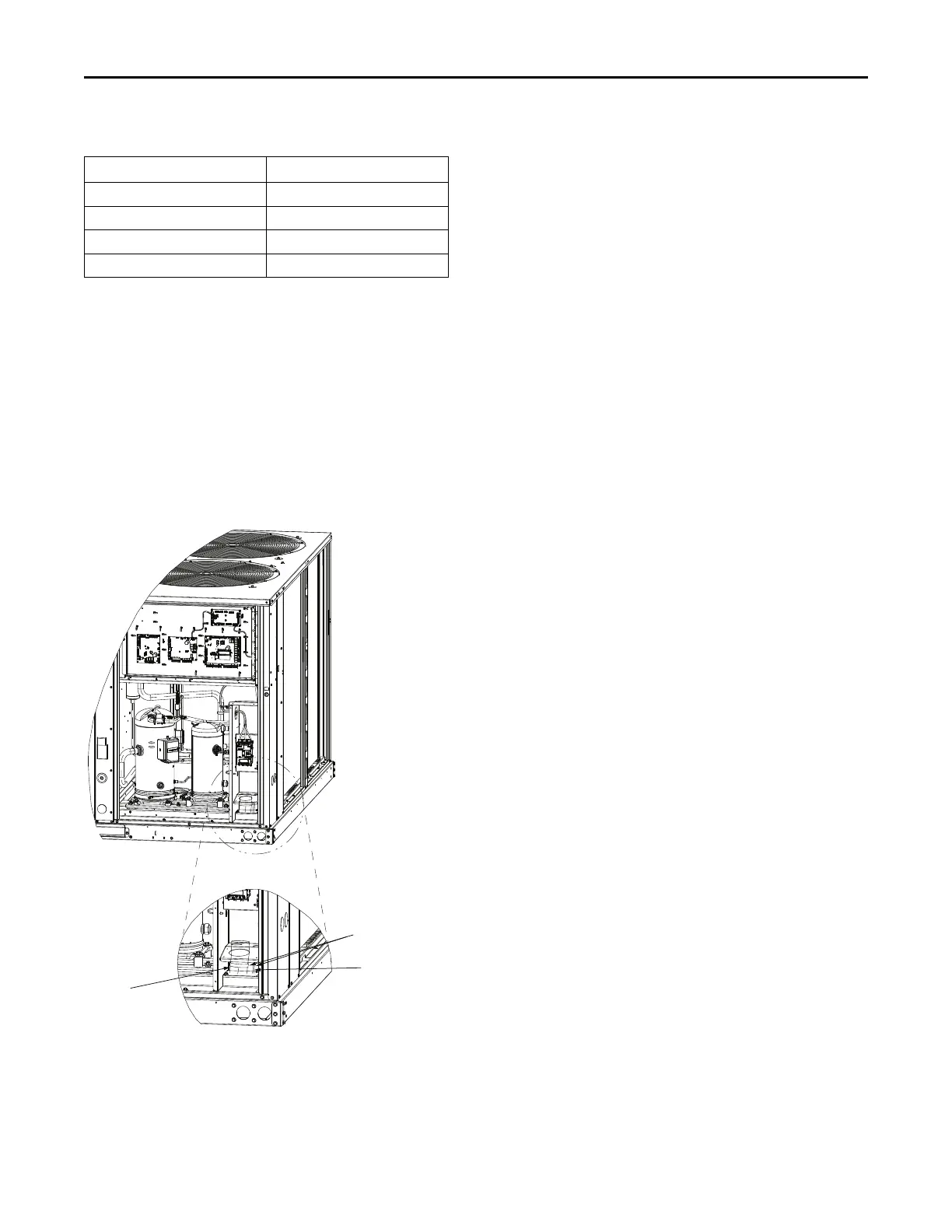

Figure 15. Filed wiring route
Power Wiring
Conduit
Control Wiring
Conduit
Seal Between Wiring and
Conduit with Weather Proof
Sealer to Prevent Air Leakage
