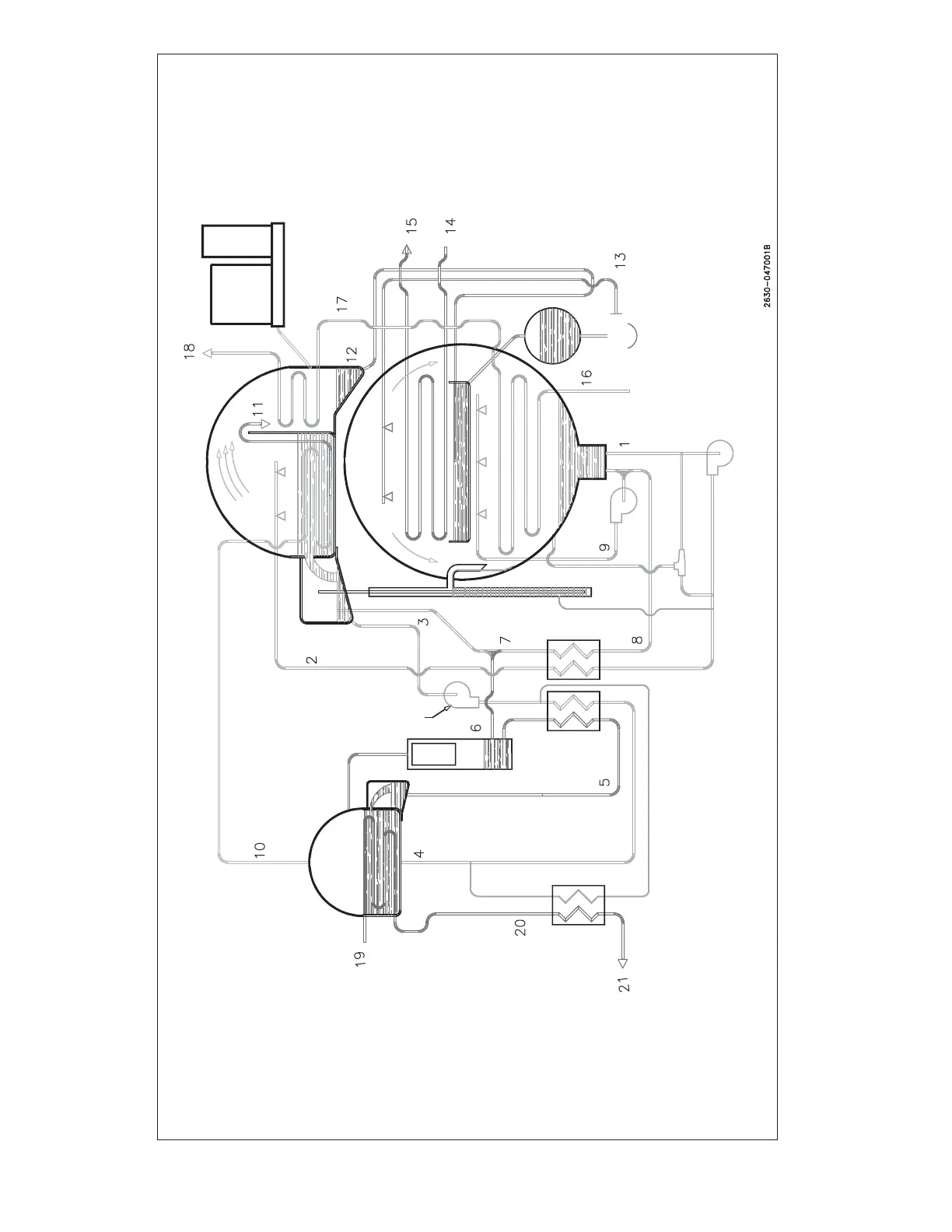

Figure 1. ABTF fluid cycle - (Ref. Table 1)
Steam-Fired Absorption Unit
Steam-Fired Generator
Condenser Heat Exchanger (HXER)
High Temperature Heat Exchanger (HXER)
Low Te m- perature Heat Ex- changer (HXER)
High Temperature Generator Pump
Low Temperature Generator
Evaporator
Condenser
Purifier Purge
Evaporator Spray Pump
Low Temperature Generator Pump
EDUCTOR
Absorber Spray Pump
Absorber
Refrigerant storage
