Horizon’s Adaptive Cycle Management

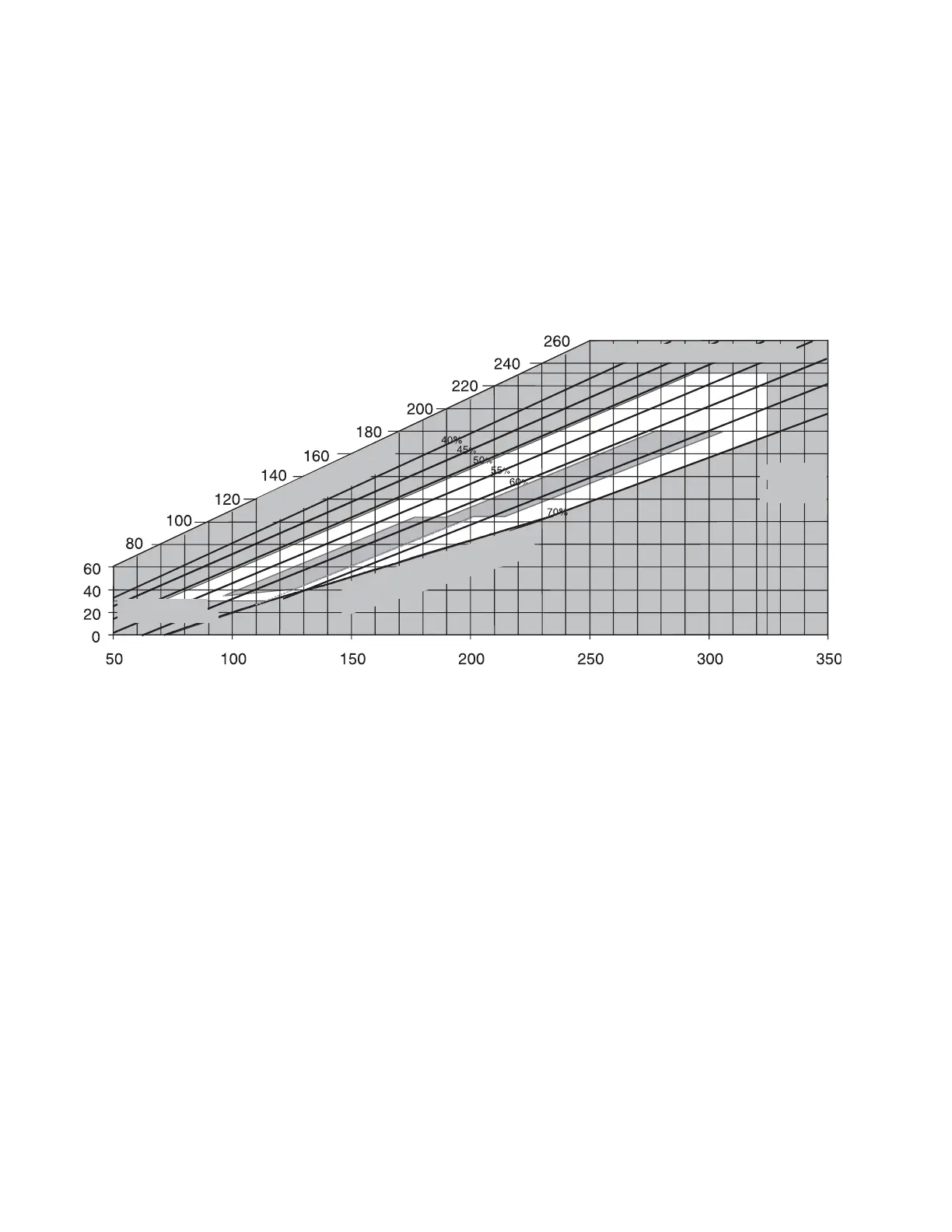

The Equilibrium chart below illustrates the Generator
Temperature Limit, the Interstage Pressure Limit and the
Low Refrigerant Temperature Limit areas with respect to
the normal cycle operation. These three limits along with
PID Concentration and Solution Controls provide complete
cycle management.
The white area in the middle of the chart illustrates the safe
cycle operating area. Solution Concentration Control
provides a margin of safety from the cycle to the Lithium
Bromide Crystallization Line.
Cycle Management
Refrigerant
Temperature ° F
Lithium Bromide Crystallization Line
Loss of Refrigerant
Interstage Pressure Limit
Generator
Temperature
Limit
Solution Temperature, °F
Management Functions
• Low Refrigerant Temperature Limit Control - Freeze Protection
• High Generator Solution Temperature Limit Control - Prevents Hydrogen Generation
• High Interstage Pressure Limit Control - Prevents Generator Over Pressure
• Solution Concentration Control - Prevents Crystallization and Loss of Refrigerant
Low Refrigerant
Temperature Limit
