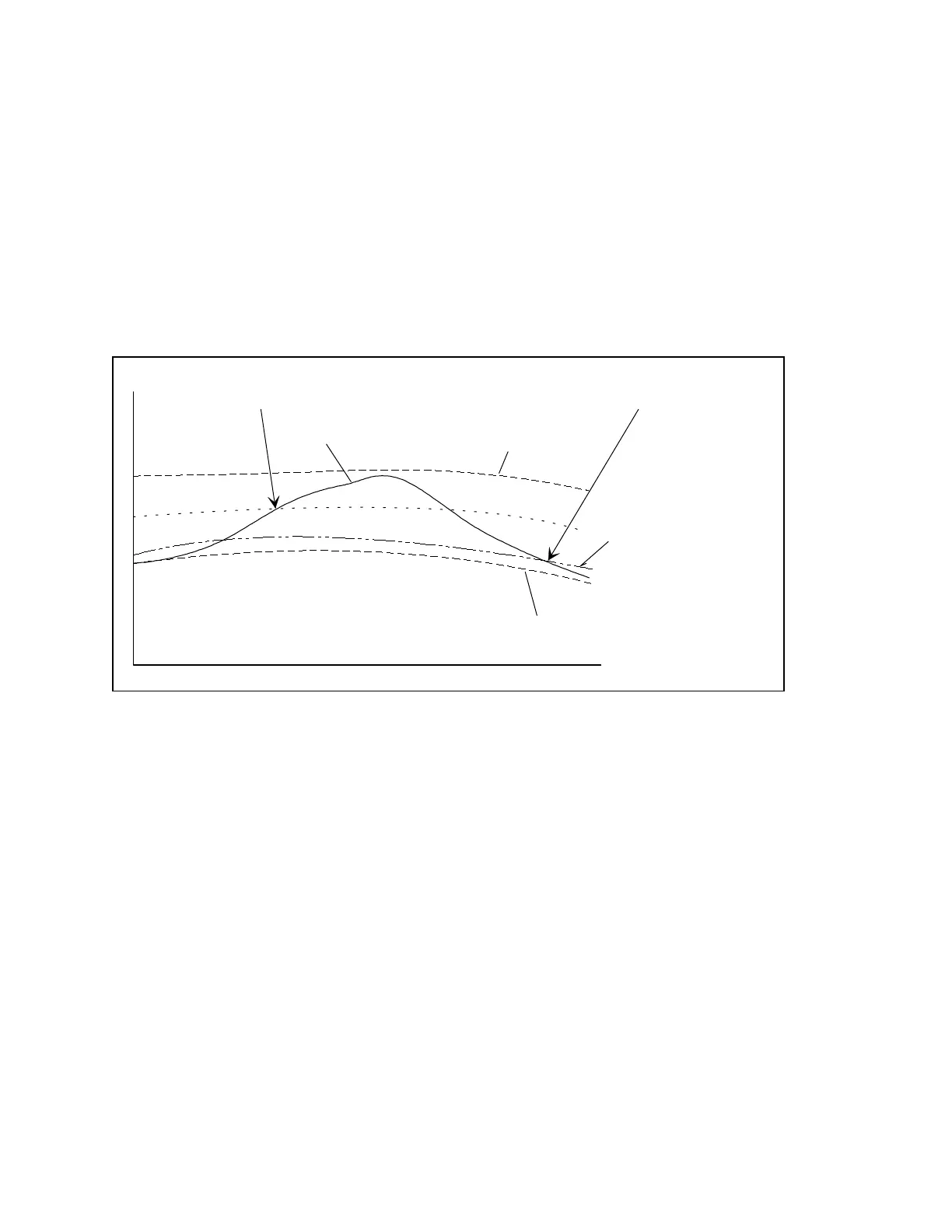

Diagram Illustration of an SDR Occurrence
• Figure 23 illustrates a typical SDR trip temperature
(center dotted line) and crystallization sensing detection
sensor temperature (solid).
• The left arrow point indicates where the solid line
crosses the dotted line. This is where the SDR trip
criteria is met and recovery mode is initiated.
• The right arrow point indicates where the SDR
temperature has been reduced to the recovery
temperature (SDR sensor temperature is below the low
temperature solution temperature + 3°F) required for
operation. Operation will be restored after the 11 minute
recovery cycle is complete.
Figure 23
An indication that the
CDR was Successful
Crystallization Detection and
Recovery (CDR) Trip
Recovery Temperature
LTG Solution +3 Degree
Temperature
Time
Crystallization Detection
Temperature
Solution Temperature Leaving Low Temperature Generator LTG
Solution Temperature
Leaving Float Valve
