Introduction

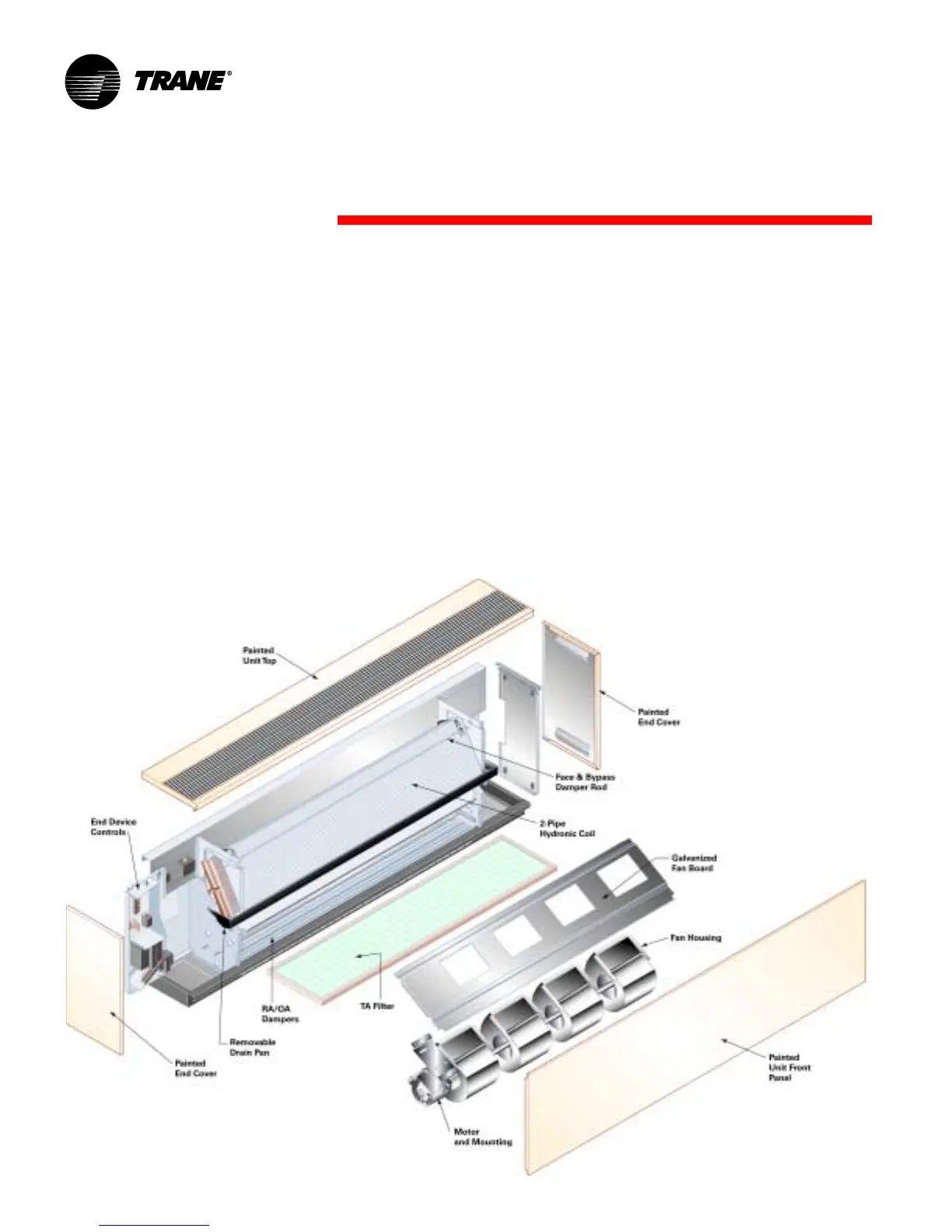

The vertical unit ventilator is a floor mounted air-conditioner. The unit is mounted flush to the wall with the
fresh air opening in the back or top inlet, and the return opening in the front or back. Front panels are retained
by Allen wrench operated tamper proof camlocks which open with a 180-degree rotation. The unit is construct-
ed of 14 and 16-gauge zinc coated steel. Each unit contains two end pockets which are easily accessible and
provide field hook-up to piping and controls. A pipe chase is provided across the back of the unit for field in-
stallation of crossover piping. The unit fan board is made of 14-gauge corrosive resistant galvanized metal. All
cooling specified units contain a non-corrosive, positively sloped drain pan that is removable for cleaning pur-
poses. Leveling legs are provided at both ends of the unit to facilitate alignment and leveling. Feature high-
lights include:
• Tracer
TM
ZN520 controls for
automation of the mechanical
system
• Blow thru supply-air design for
freeze avoidance
• Varying coil combinations to fit
a variety of applications
• Factory installed piping
• ASHRAE Cycle II
• ARI 840 certification for
ventilation control
• Maintenance accessibility for
coil fin cleaning
• Factory commissioning of DDC
controls
• Field reversible drain pan
• Quality construction
• Indoor air quality features
