Trane IntelliPak SCWF 90 - Dimensional Data

24
SCXF-SVX01Q-EN
Dimensional Data

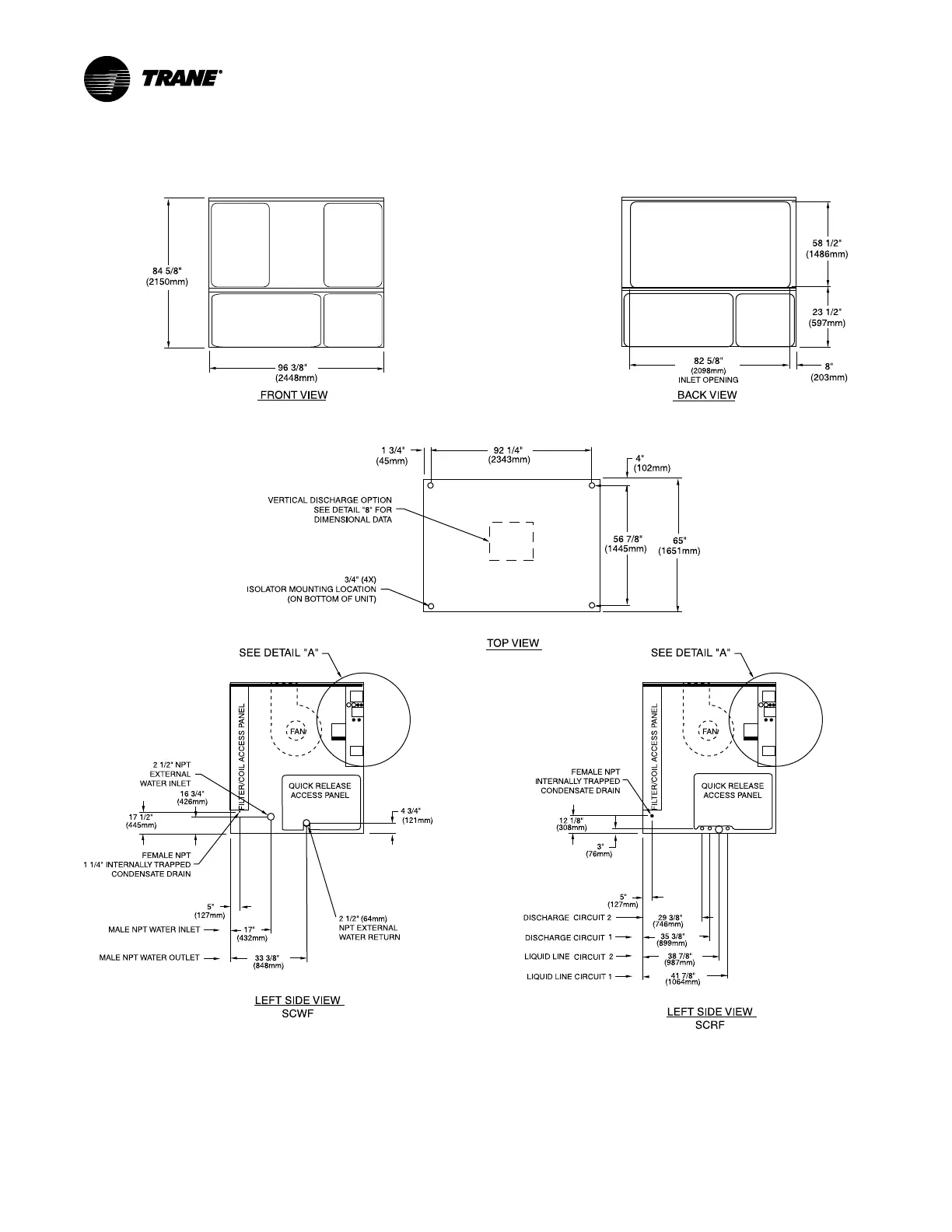

Figure 5. 20 to 38 ton self-contained
NNootteess::
1. All unit weights include refrigerant, water, controllers, electric heat and valves.
2. Add 150 lbs. to total weight to obtain approximate shipping weight.
