Trane IntelliPak SCWF 90 User Manual

SCXF-SVX01Q-EN
91

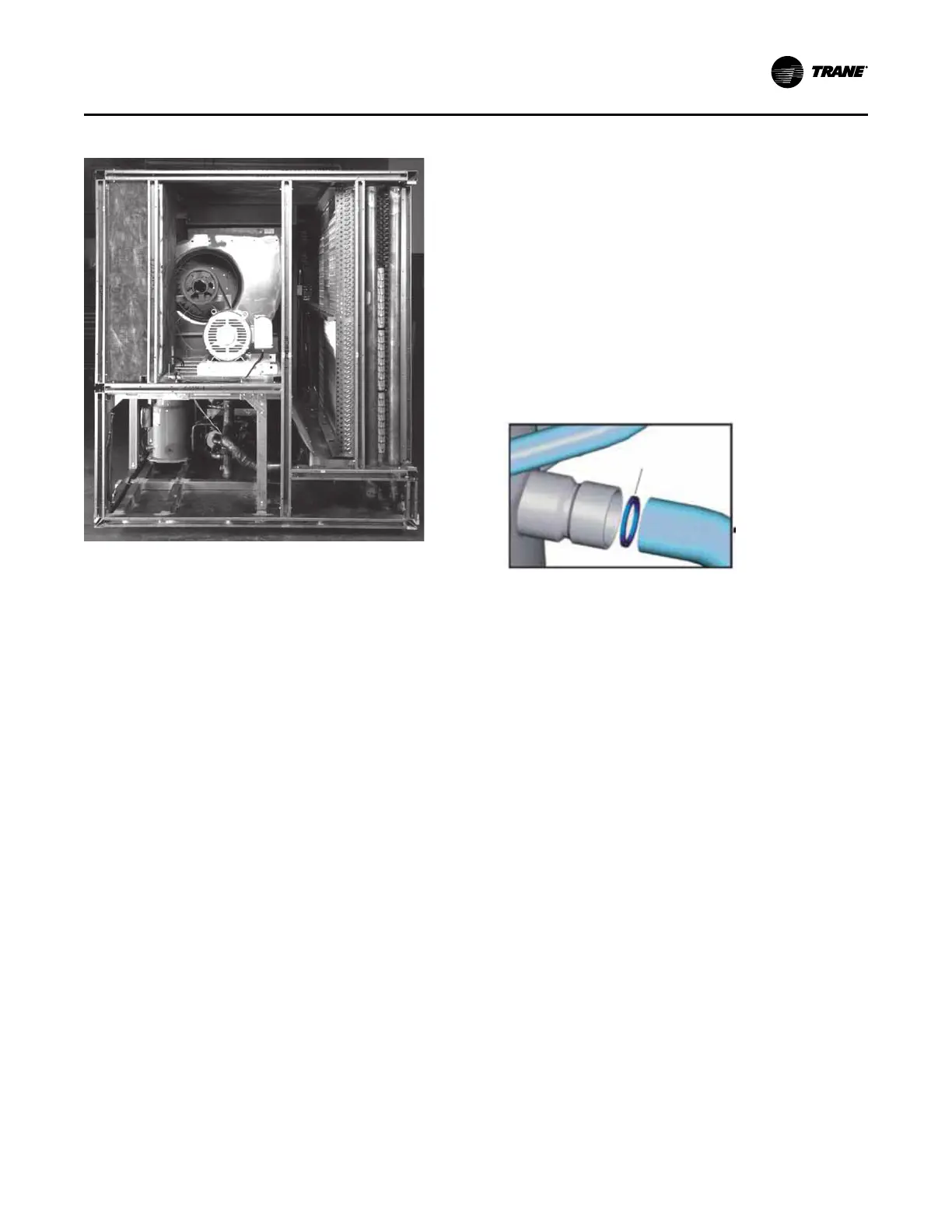

Figure 44. Right-side view of the self-contained unit
Image Tag Expected within Figure Tag
Figure 45. Fan assembly
Compressors
Scroll Compressor Failure Diagnosis and
Replacement
If compressor failure is suspected, refer to COM-
SVN01A-EN for detailed information regarding
compressor failure diagnosis and replacement of scroll
compressors.
IImmppoorrttaanntt:: If compressor replacement of a manifold
set is required, DO NOT alter manifold
piping. The design is critical to proper
refrigerant flow.
40 Ton Air-Cooled Compressor Suction
Restrictor Replacement
The 40T air-cooled unit has a manifold compressor set
on one circuit. A restrictor in the 10 ton compressor
suction connection balances refrigerant flow.
Instructions below are for installation if compressor
replacement is required.
Figure 46. Restrictor installation
MMaaiinntteennaannccee
