Trane LCD Control Series User Manual

ACYSTAT-IOM-EN
17

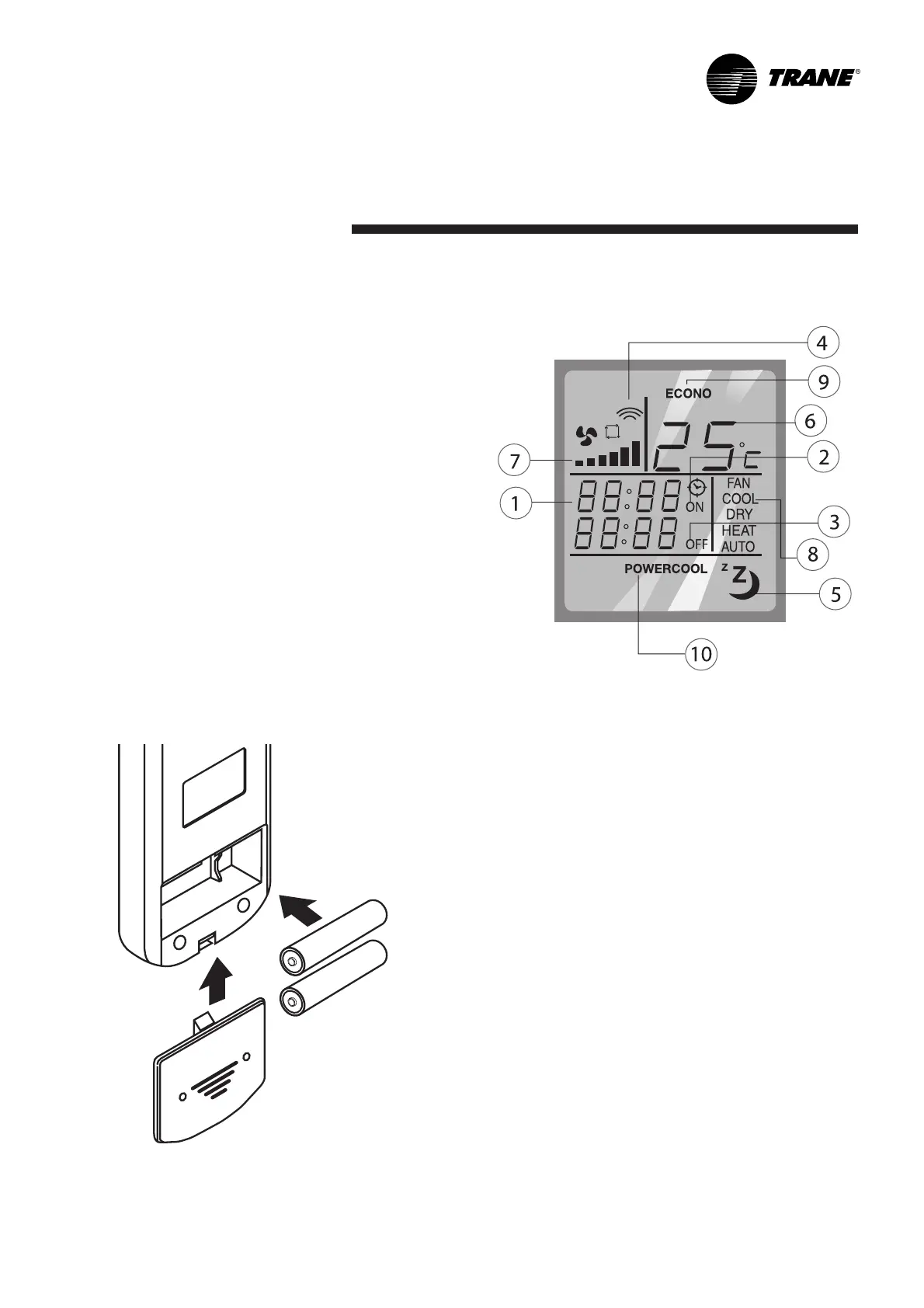

Indicators on Infrared Remote Control
Handheld Remote Control
Installation of Batteries
1. Slide the back cover of the remote control down to
take it off.
2. Insert two dry batteries into the slot. Be sure that the
+ and - directions are correct.
3. Fix the back cover to the remote control as before.
Attentions
• Batteries can be used approximately for one year
under normal conditions.
• Always replace an identical type of two batteries at
the same time.
• Do not use manganese dry batteries since they may
cause a malfunction.
• Do not use rechargeable (Ni-Cd) batteries, because
such batteries may differ from standard dry cell
batteries in shapes, dimensions, or performance.
• Take out all batteries if you are not going to use the
air-conditioner for a long period of time.
1. CLOCK
Displays present time.
2. ON TIMER
Displays ON TIMER when ON TIMER is set.
3. OFF TIMER
Displays OFF TIMER when OFF TIMER is set.
4. Transmission Indicator
The transmission indicator lights when remote control
transmits signal to the indoor unit.
5. SLEEP Mode
Displays sleep symbol after activating SLEEP mode.
6. Set Temperature
Displays the set temperature (15
O
C to 30
O
C)
When FAN or POWERCOOL mode is selected, the
set temperature will be disappeared until FAN or
POWERCOOL mode is cancelled or complete.
7. FAN Speed
Displays the selected fan speed level: Auto, Low,
Medium, or High.
8. Operation Mode
Displays the current operation mode: FAN, COOL,
or DRY.
9. ECONO Mode
Displays “ECONO” when ECONO mode is activated.
10. POWERCOOL Mode
Displays “POWERCOOL” when POWERCOOL mode is
activated.
A
