Routine Maintenance
CLCH-SVX009L-EN 71
For unit sizes 8 and 14 to 30, see Figure 74.

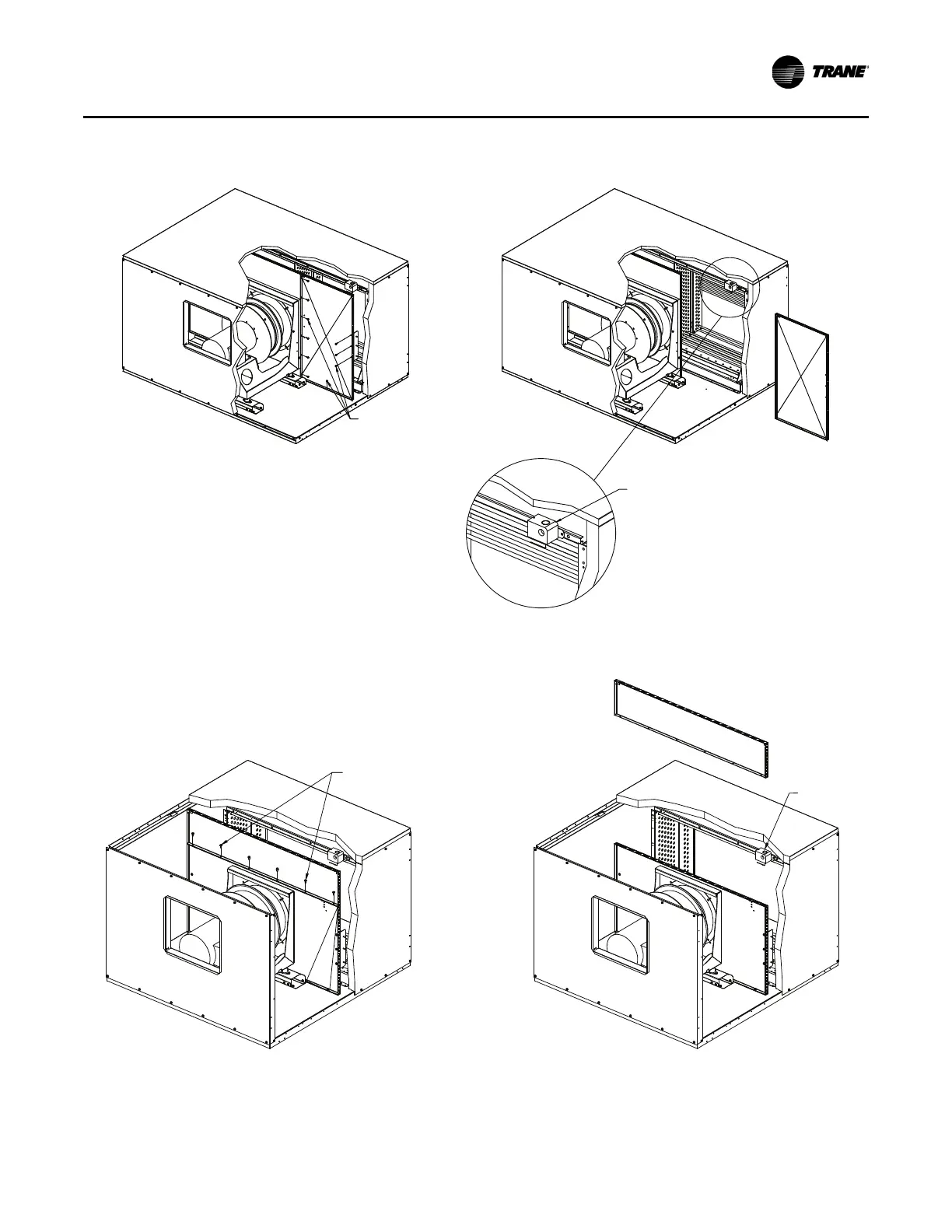

Figure 73. Resetting low limit switch for horizontal DDP fan units sizes 3, 6, 10, and 12
Removable
access
panel
Screw: 10-16 x 0.750 self-driller
Remove all from perimeter panel
Panel
removed
from unit
Low limit freeze stat
Detail A
Figure 74. Resetting low limit switch for horizontal DDP fan units sizes 8 and 14 to 30
Removable
access panel
Low limit
freeze stat
Panel removed
from unit
Screw: 10-16 x 0.750 self-driller
Remove all from perimeter of panel
