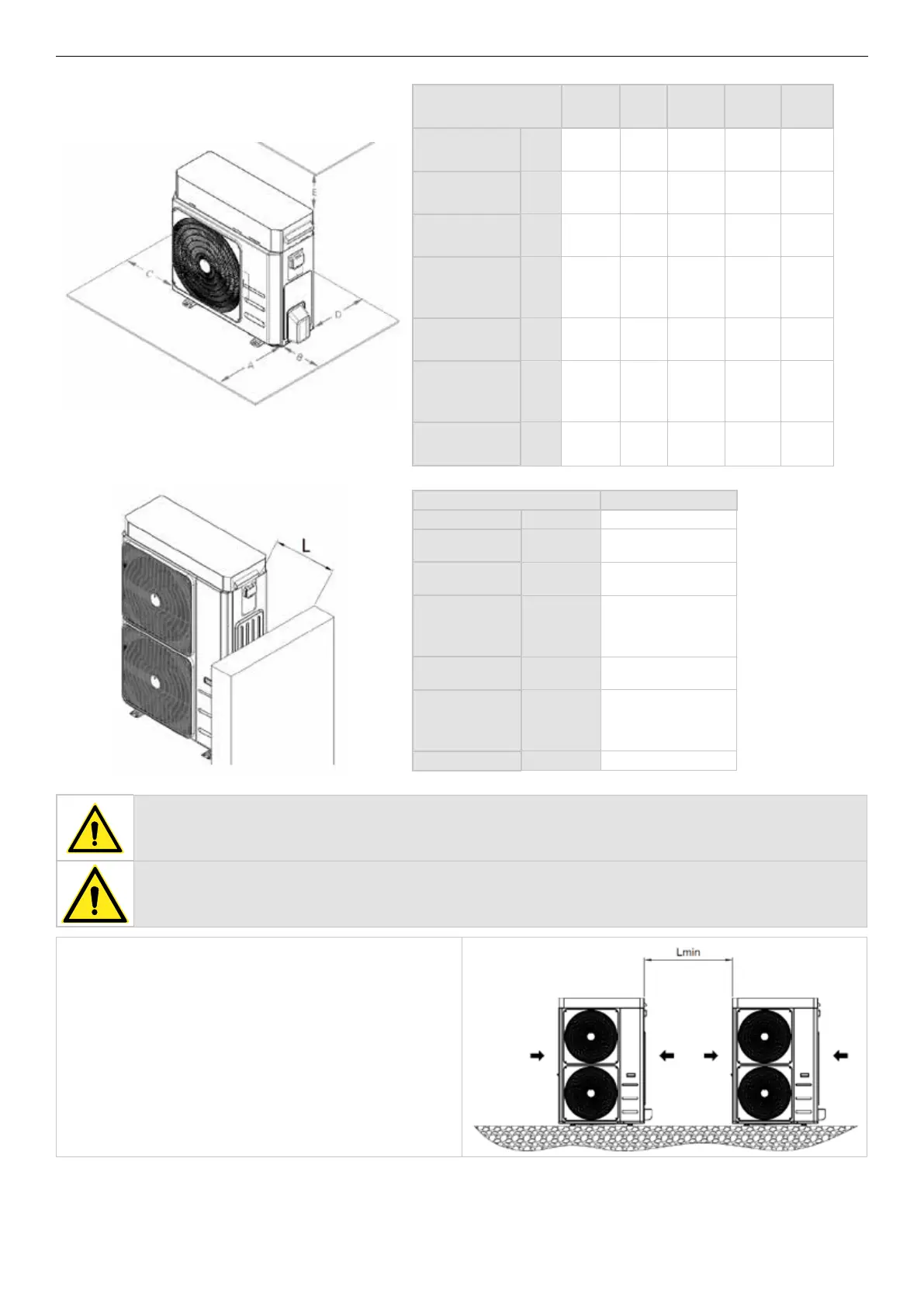

Trane Picco R32-SL16T - Dimensions; Dimensions for Picco R32 06 A;08 A;SL08 A; Dimensions for Picco R32 10;10 T;12;SL12;12 T;SL12 T

Picco R32 Air/Water heat pumps with axial fans
14
Model A B C D E
Picco R3206A mm 1500 500 400 400 500

Picco R32SL08A
mm 1500 500 400 400 500
Picco R3210/
Picco R3210T
mm 1500 500 400 400 500

Picco R32-SL12/

Picco R32-SL12T
mm 1500 500 400 400 500
Picco R3214/
Picco R3214T
mm 1500 500 400 400 500

Picco R32-SL16/

Picco R32-SL16T
mm 1500 500 400 400 500
Picco R3218T mm 1500 500 400 400 500
Model L
Picco R3206A mm 500

Picco R32SL08A
mm 500
Picco R3210/
Picco R3210T
mm 500

Picco R32-SL12/

Picco R32-SL12T
mm 500
Picco R3214/
Picco R3214T
mm 500

Picco R32-SL16/

Picco R32-SL16T
mm 500
Picco R3218T mm 500
Do not obstruct or cover the vents on the top cover.



In the event of side-by-side units, the minimum Lmin distance be-
tween them is 1 m.
