Trane Picco R32-SL16T User Manual

Picco R32 Air/water inverter heat pumps with axial fans
27
TERMINAL CONNECTION TYPE
X-9.1/X-9.2 Exchanger heater (KAS)
Output in single phase voltage 230Vac, 50Hz,
5A resisve, 1A inducve.
Can be used in versions without KA
X-10.1/X-10.2 Base heater (KAB)
Output in single phase voltage 230Vac, 50Hz,
5A resisve, 1A inducve.
X-11.1/X-11.2 Domesc hot water valve outlet (VS1)
Changeover contact, single phase voltage
230Vac, 50Hz, 5A resisve, 1A inducve.
X-14.1/X-14.2 Double set-point valve output (VDIS1)
Changeover contact, single phase voltage
230Vac, 50Hz, 5A resisve, 1A inducve.
X-16.1/X16.2
Summer/winter mode change input from remote (to ac-
vate the funcon, see the relevant paragraph in the MCO
manual)
Voltage-free digital input
X-15.1/X15.2
Remote on/o input
(closed=machine on / open=machine o)
Voltage-free digital input

X-10.1
X-10.2
X-9.1
X-9.2
X-6.2
X-11.1
X-11.2
X-6.1
X-14.1
X-14.2
X-4.1
X-5.1
X-5.2
X-16.1
X-16.2
X-15.1
X-17.1X-19.1
X-19.2
X-20.1
X-20.2
X-22.1
X-22.2
X-15.2X-17.2
F1
X-1.1
X-1.1
L
N
L
N
X-10.2
X-9.2
X-6.2
X-11.2
X-14.2
X-10.1
X-9.1
X-11.1
X-6.1
X-14.1
X-4.1
X-5.2
X-16.2
X-19.2
X-20.2X-22.2
X-15.2X-17.2
X-5.1
X-16.1
X-15.1X-17.1
X-19.1
X-20.1
X-22.1
X12-1
X12-2
X12-2
X12-1

X-10.1
X-10.2
X-9.1
X-9.2
X-6.2
X-11.1
X-11.2
X-6.1
X-14.1
X-14.2
F1
N
PE
X-4.1
X-5.1
X-5.2
X-16.1
X-16.2
X-15.1X-17.1
X-19.1
X-19.2
X-20.1
X-20.2
X-22.1
X-22.2
X-15.2X-17.2
X12-1
X12-2
X12-2
X-4.1
X-5.2
X-16.2
X-19.2X-20.2 2.51-X2.22-X
X-17.2
X-5.1
X-16.1
X-15.1X-17.1
X-19.1X-20.1
X-22.1
X12-1
X-10.2
L2
X-9.2
L3
X-6.2 X-11.2
PE
X-14.2
K2
X-10.1
X-9.1
X-11.1
X-6.1
X-14.1
L1
L2 L3
L1
N

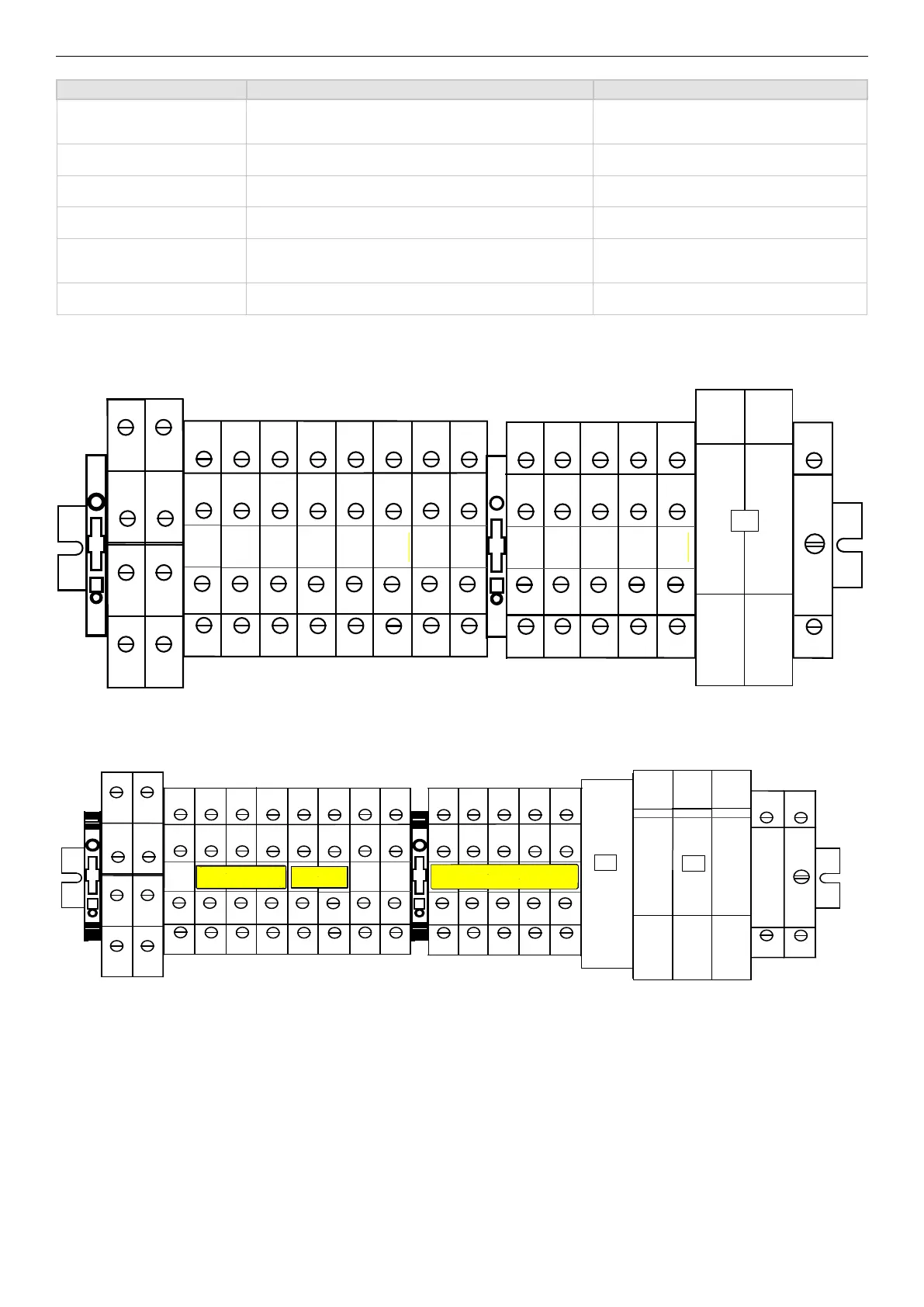

Terminal board GI
