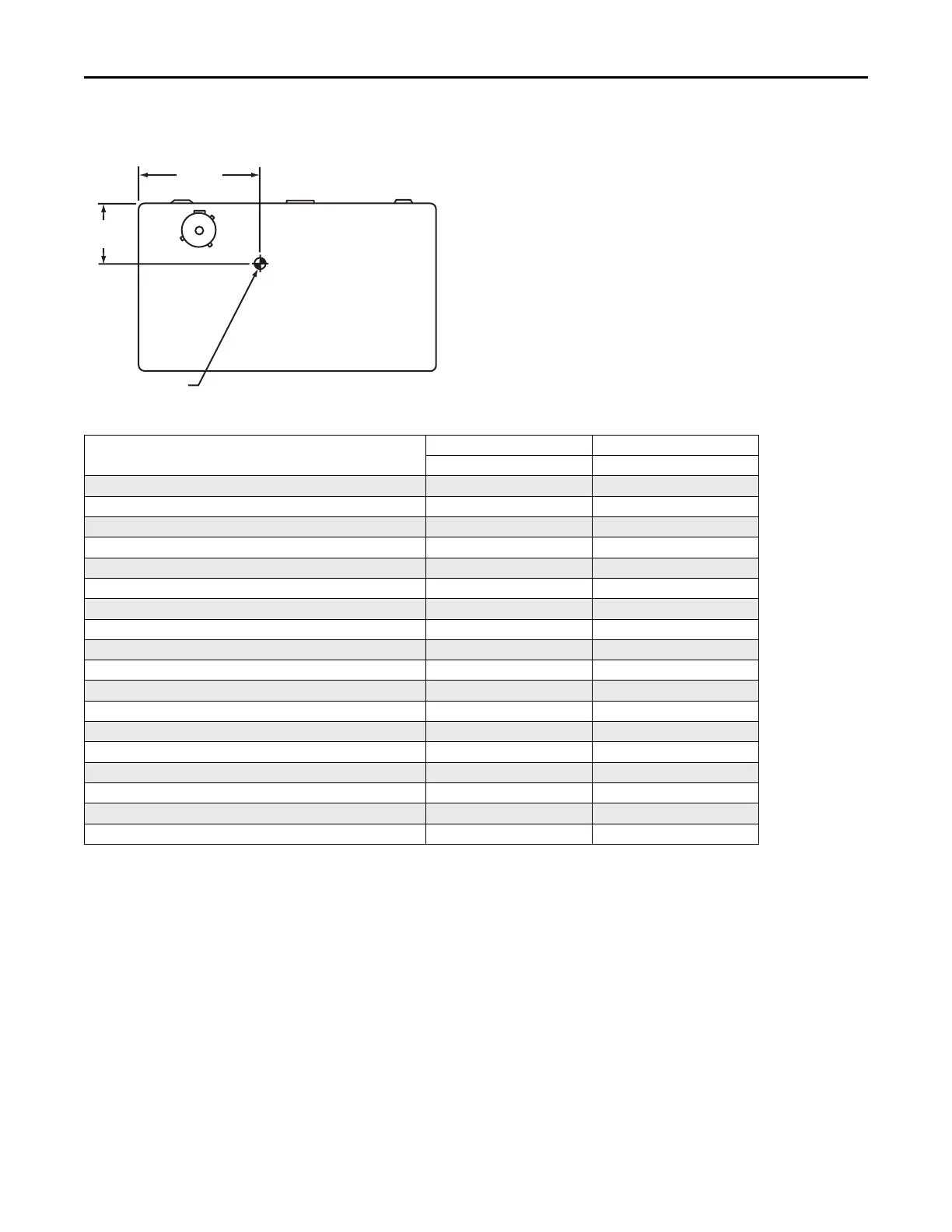

Figure 10. Corner weights
Center of Gravity
Length
Center of
Gravity
Width
Center of Gravity
A
B
C
D
Table 2. Factory installed options (FIOPS)/accessory net weights (lb)
Accessory
WSJ150-180 WSJ240-300
12.5, 15 Tons 20, 25 Tons
Barometric Relief 40 40
Economizer 91 91
Electric Heaters 75 75
Hinged Doors
20 30
Low Leak Economizer - Downflow 150 150
Low Leak Economizer - Horizontal 180 180
Manual Outside Air Damper
15 15
Motorized Outside Air Damper
82 82
Oversized Motor – 30
Powered Convenience Outlet 50 50
Powered Exhaust 110 110
Reheat Coil 100 100
Roof Curb 235 235
Smoke Detector, Supply
5 5
Smoke Detector, Return
5 5
Through-the-Base Electrical
10 10
Unit Mounted Circuit Breaker 10 10
Unit Mounted Disconnect 10 10
Notes:
1. Weights for options not listed are less than 5 pounds.
2. Net weight should be added to unit weight when ordering factory-installed accessories.
3. Weights are approximate.
