Trane Precedent YHJ072 User Manual

36
RT-SVX075C-EN

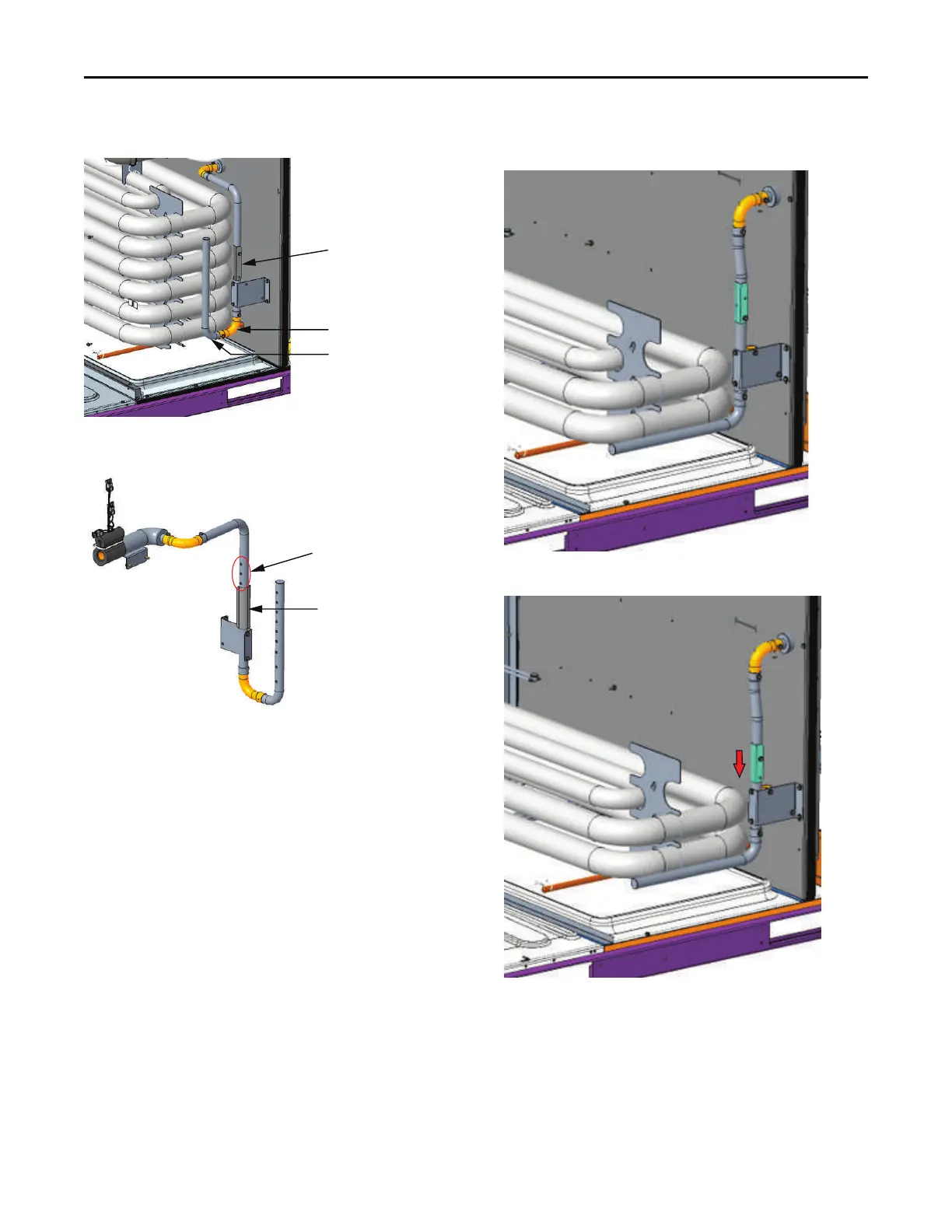

Figure 49. DAS tubing after conversion to horizontal
Vertical slide bracket -
new position
Pickup tube - new
poisition
90 degree elbow
installation location
Figure 50. DAS tubing after conversion to horizontal -
detail
Vertical hole(s) available
for horizontal
Vertical slide bracket -
new position
Conversion to Horizontal — Model
YHJ072***BL
Note: An elbow is not required for this conversion.
1. Remove vertical slide bracket screw.
2. Slide the vertical slide bracket down to expose the
holes in the vertical tube. See and Figure 52, p. 36, and
Figure 53, p. 37.
3. Reattach bracket screw to secure vertical slide bracket
in new position.
Figure 51. DAS tubing factory installation for
downflow
Figure 52. DAS tubing after conversion to horizontal
Installation
