Dimensions and Weights
RT-SVX46G-EN 15
.
WARNING
Heavy Objects!
Failure to follow instructions below or properly lift unit
could result in unit dropping and possibly crushing
operator/technician which could result in death or
serious injury, and equipment or property-only damage.
Ensure that all the lifting equipment used is properly
rated for the weight of the unit being lifted. Each of the
cables (chains or slings), hooks, and shackles used to
lift the unit must be capable of supporting the entire
weight of the unit. Lifting cables (chains or slings) may
not be of the same length. Adjust as necessary for even
unit lift.
WARNING
Improper Unit Lift!
Failure to properly lift unit could result in unit dropping
and possibly crushing operator/technician which could
result in death or serious injury, and equipment or
property-only damage. Test lift unit approximately 24
inches to verify proper center of gravity lift point. To
avoid dropping of unit, reposition lifting point if unit is
not level.

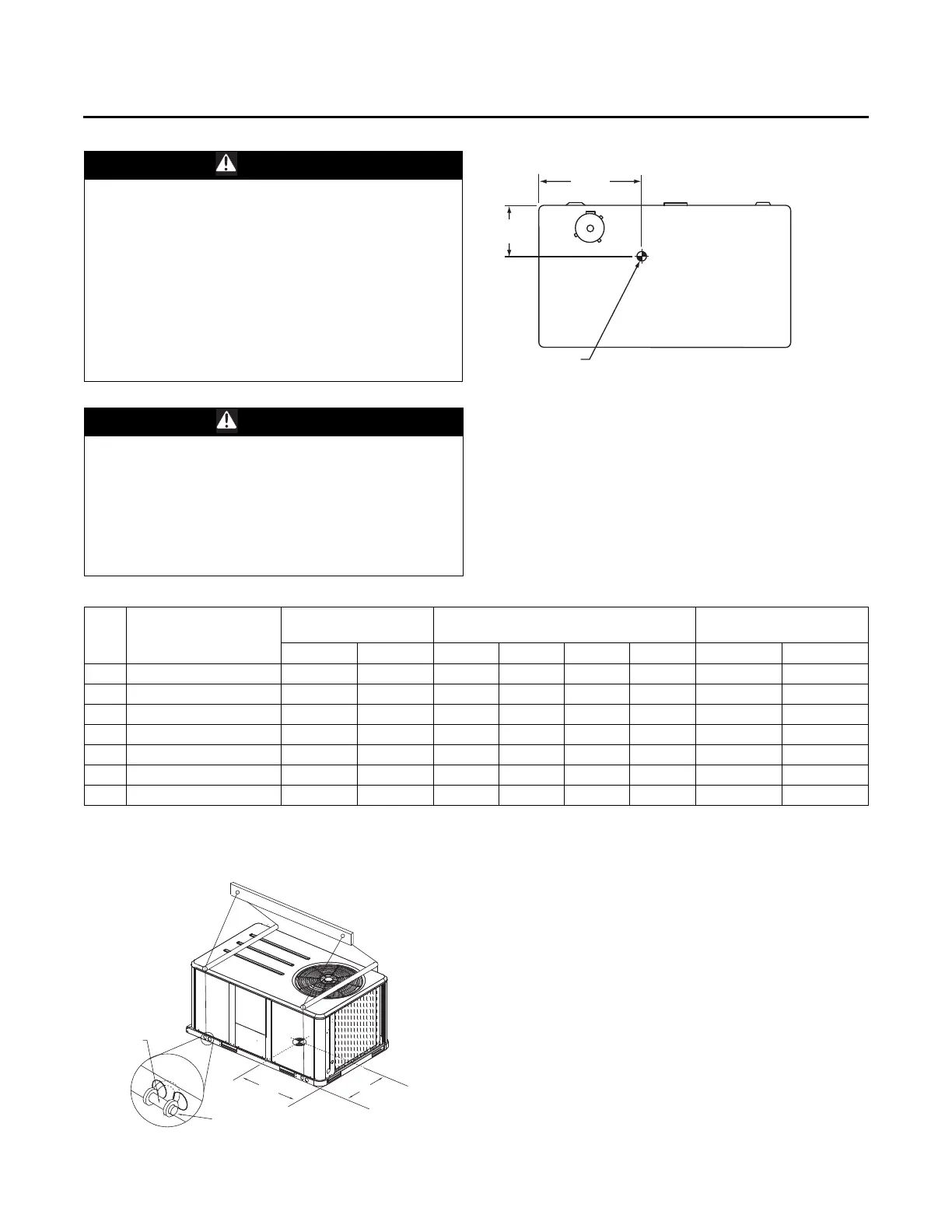

Figure 2. Corner weights
Center of Gravity
Length
Center of
Gravity
Width
Center of Gravity
A
B
C
D
Table 1. Maximum base unit & corner weights (lbs) and center of gravity dimensions (in.) - gas/electric models
Tons
Unit
Model No.
Maximum Base Model
Weights
(a)
Corner Weights
(b)
Center of Gravity (in.)
Shipping Net A B C D Length Width
3 YZC036E 690 615 154 196 73 192 33 19
4 YZC048F 848 753 196 258 126 173 40 23
5 YZC060E 949 854 200 293 121 240 40 23
6 YZC072F 966 868 321 184 262 101 64 22
7.5 YZC090F 1007 909 248 210 261 190 51 26
8.5 YZC102F 1007 909 248 210 261 190 51 26
10 YZC120F 1428 1234 346 344 306 238 56 28
(a) Weight are approximate for 1st 10 digit model number.
(b) Corner weights are given for information only.
Figure 3. Rigging and center of gravity
Attach chain or
cable to clevis
Clevis
Center of Gravity Length Center of Gravity
Width
A
B
C
D
To Next Page
