Dimensions and Weights
RT-SVX46G-EN 23

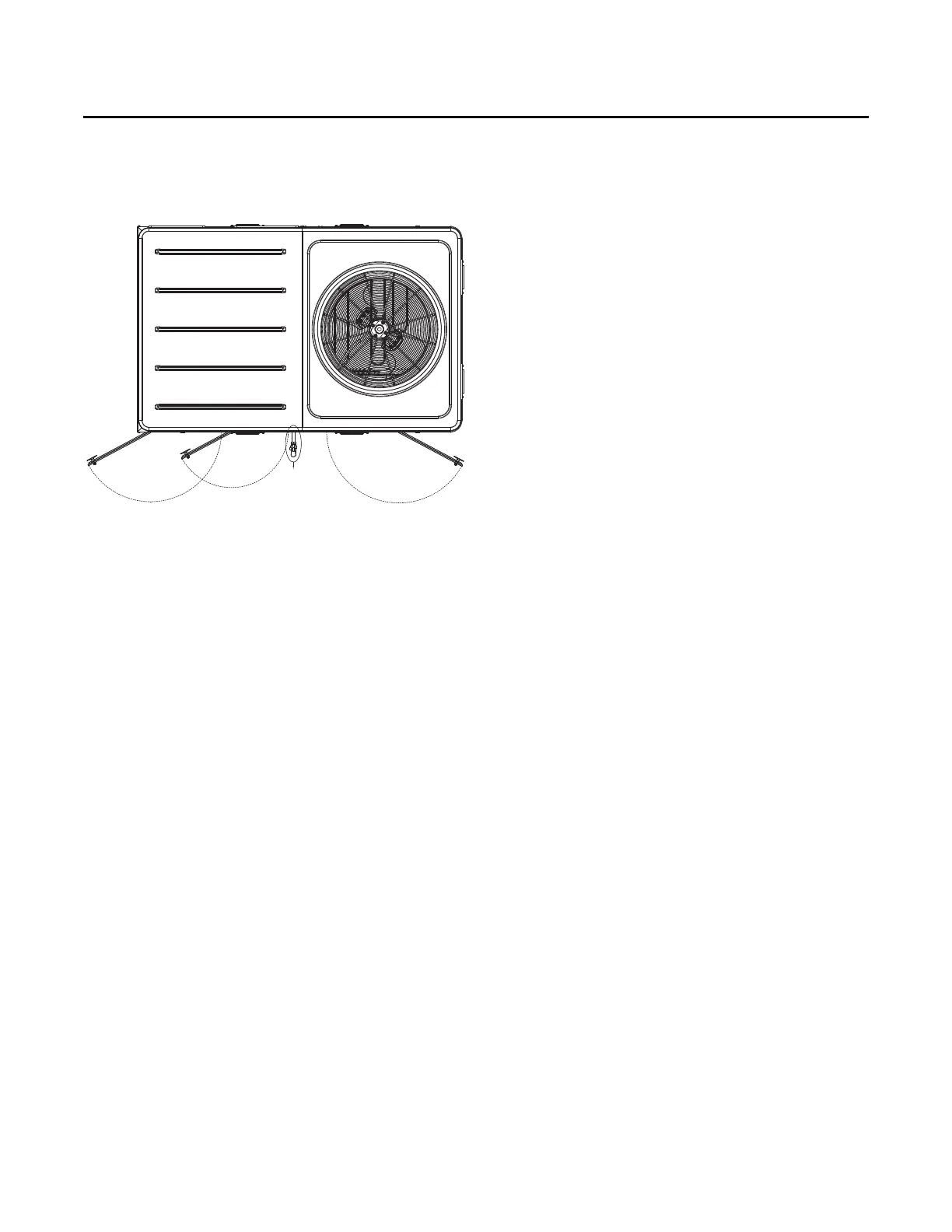

Figure 37. Cooling and gas/electric - 10 tons ultra high
efficiency - swing diameter for hinged door(s)
option
Note: All dimensions are in inches/millimeters.
Applicable to
Y_C models only
22 1/2”
572 MM
17 13/16”
451 MM
22”
559 MM
