12
PTAC-SVX002A-EN
Voltage Supply
Check voltage supply at outlet. For satisfactory results, the voltage range must always be within
the ranges specified on the data information plate. Power cord does not ship with the unit. The
cord to order is determined by the unit voltage and the desired electric heat capacity.
Cord/Connected Units
The 250 Vac field supplied outlet must match the plug for standard 208/230V units and be within
reach of the service cord.
NNoottee:: Do NOT use 30 amp cord with size 07 units.

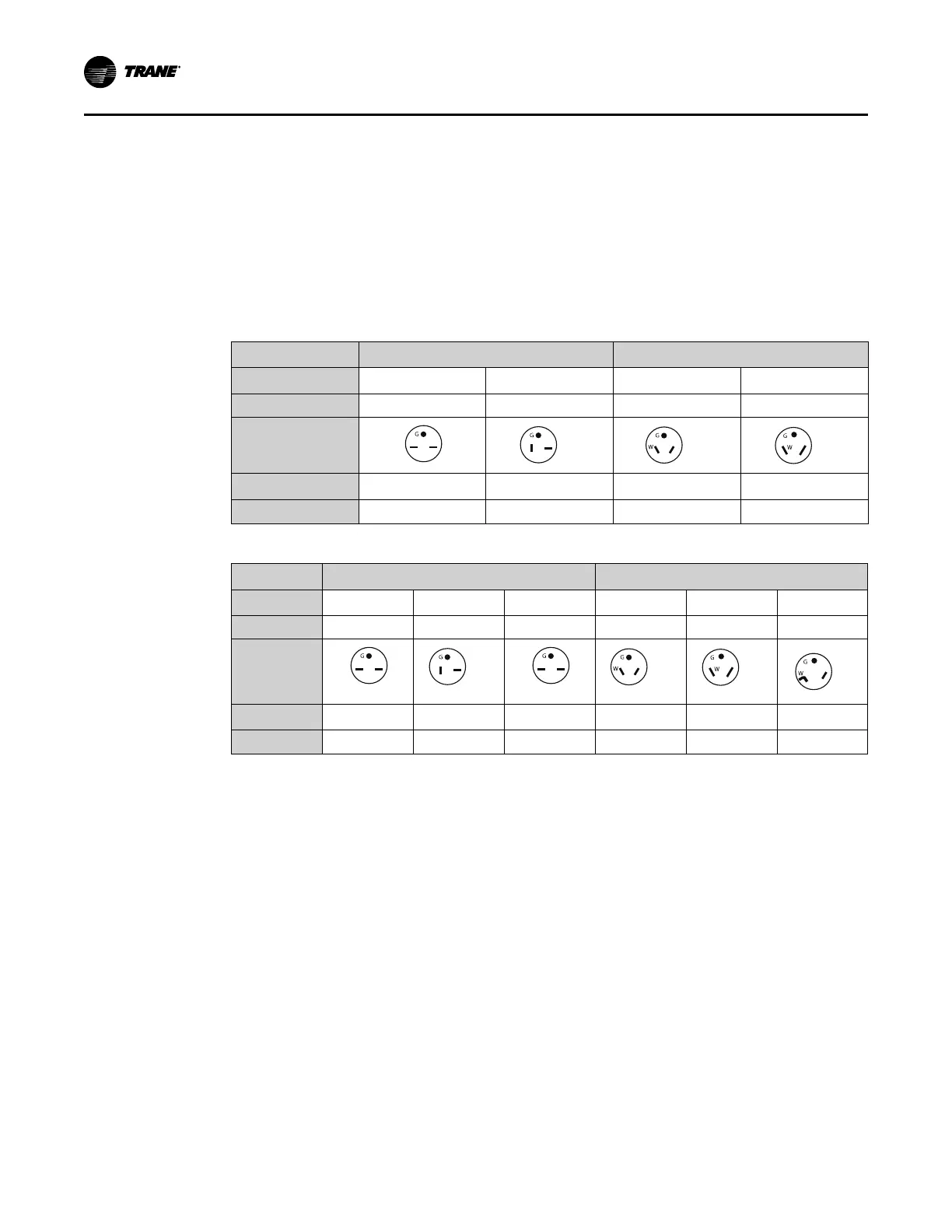

Table 2. Electric Heater and Cord Information, PTEF07xxx and PTHF07xxx
Voltage 230 Vac 265 Vac
Amps 15 20 15 20
Heater Size 2.5 kW 3.5 kW 2.5 kW 3.5 kW
Plug Layout
NEMA Plug 6-15P 6-20P 7-15P 7-20P
Cord # PWR00286 PWR00288 PWR00287 PWR00289
Table 3. Electric Heater and Cord Information, PTEF and PTHF Size 09, 12, and 15
Voltage 230 Vac 265 Vac
Amps 15 20 30 15 20 30
Heater Size 2.5 kW 3.5 kW 5.0 kW 2.5 kW 3.5 kW 5.0 kW
Plug Layout
NEMA Plug 6-15P 6-20P 6-30P 7-15P 7-20P 7-30P
Cord # PWR00286 PWR00288 PWR00290 PWR00287 PWR00289 PWR00291
Power Cord Protection
NNoottee:: Power cord does not ship with the unit.
The power cord for 230/208V units provide protection from fire. The unit power automatically
disconnects when unsafe conditions are detected. Power to the unit can be restored by pressing
the reset button on plug head. Upon completion of unit installation for 230/208V models, an
operational check should be performed using the TEST/RESET buttons on the plug head.
NNoottee:: Models with 265V do not incorporate this feature because they require use of an electrical
sub-base accessory. Connection to a wall socket is not permitted for 265V units. All 265V
units must be hard wired using the hard wire kit or make use of the plug-in receptacle in
the standard sub-base.
EElleeccttrriiccaall
