SS-SVX11K-EN
83

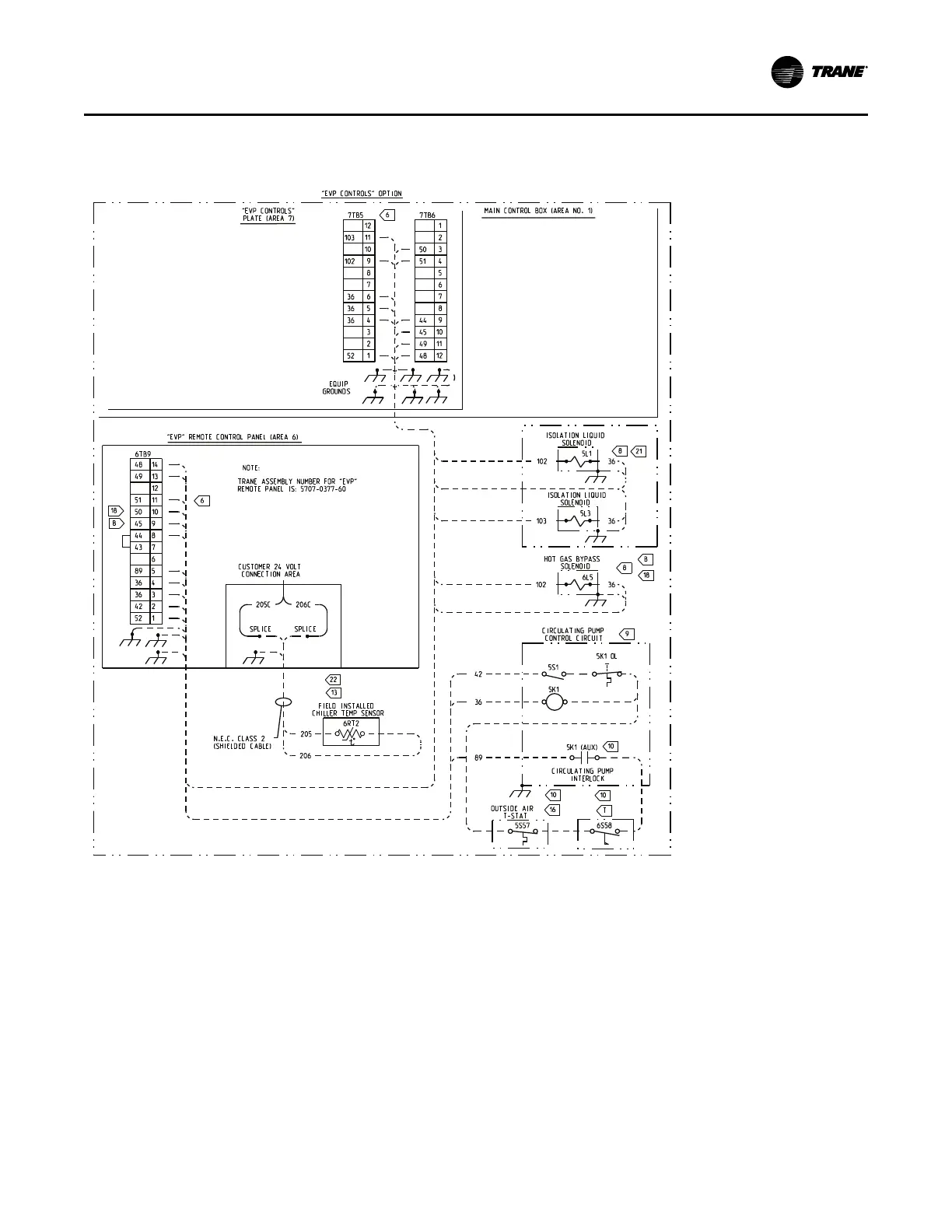

Figure 57. Field connection diagram - RAUJ-C20-60 - EVP chiller applications
2307-9122
NNoottee:: See wiring notes on previous figure “Field
Connection Diagram Notes RAUJ 20 to 60 tons
— No System Controls”.
IInnssttaallllaattiioonn EElleeccttrriiccaall
