84
SS-SVX11K-EN

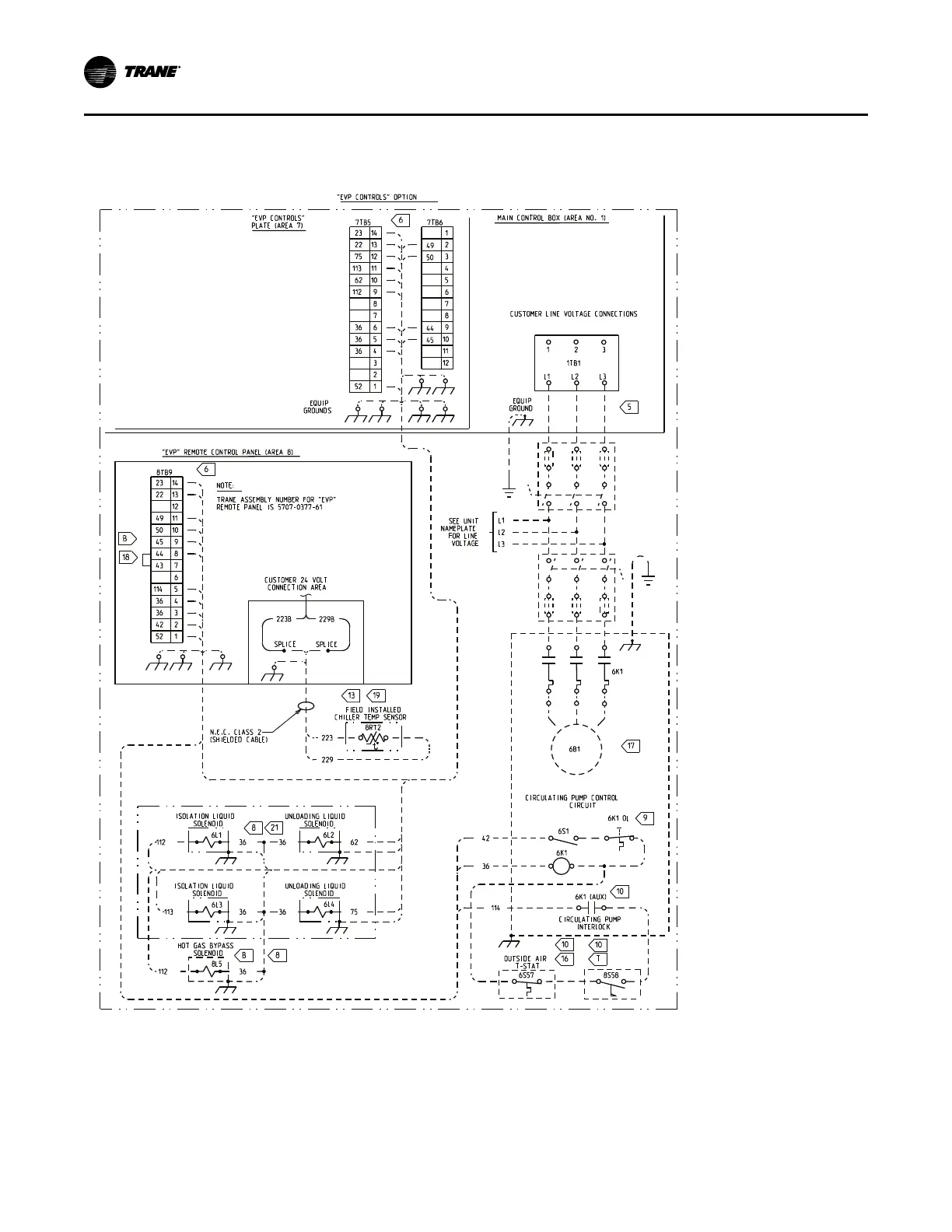

Figure 58. Field connection diagram, RAUJ 80 to 120 tons — EVP chiller applications
2307-9144
NNoottee:: See wiring notes on previous figure “Field
Connection Diagram Notes RAUJ 80 to 120 tons
— No System Controls”.
IInnssttaallllaattiioonn EElleeccttrriiccaall
