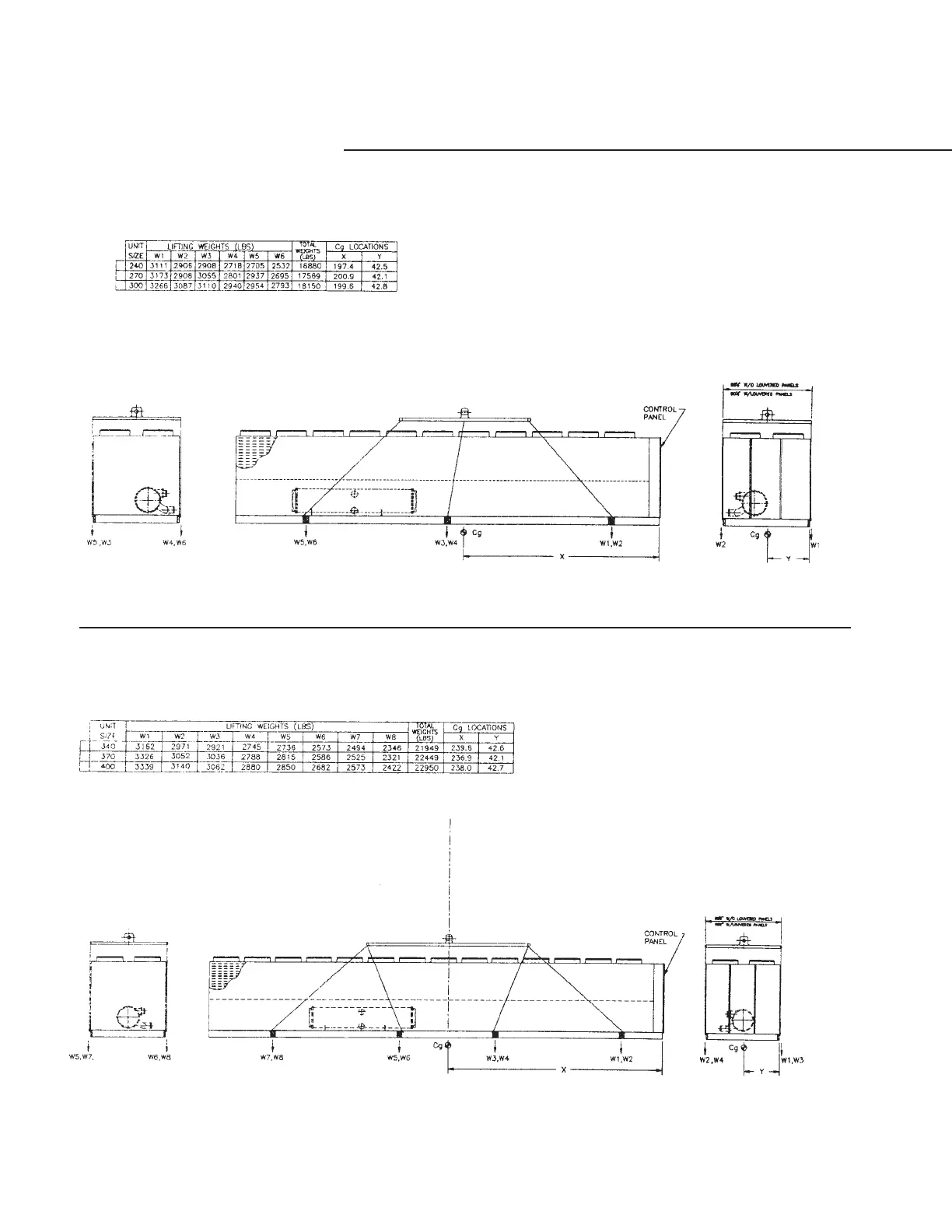

Figure 15
Rigging and Lifting Weights for
RTAA Packaged Unit – 240-300 Tons
NOTES:
1. LIFTING CHAINS (CABLES) WILL NOT BE THE SAME LENGTH.
ADJUST TO KEEP UNIT LEVEL WHILE LIFTING.
2. DO NOT FORK LIFT UNIT.
3. WEIGHTS ARE TYPICAL FOR UNITS WITH R-22 CHARGE.
4. DEDUCT 1166 FROM TOTAL WEIGHT FOR UNITS WITHOUT
ARCHITECTURAL LOUVER PANELS.
NOTES:
1. LIFTING CHAINS (CABLES) WILL NOT BE
THE SAME LENGTH. ADJUST TO KEEP
UNIT LEVEL WHILE LIFTING.
2. DO NOT FORK LIFT UNIT.
3. WEIGHTS ARE TYPICAL FOR UNITS
WITH R-22 CHARGE.
4. DEDUCT 1480 FROM TOTAL WEIGHT
FOR UNITS WITHOUT ARCHITECTURAL
LOUVERED PANELS.
Figure 16
Rigging and Lifting Weights for RTAA
Packaged Unit – 340-400 Tons
RTAA-SA-2005B
RTAA-SA-2006B
