A. The line sizes established in this
installation manual are to be used only
for 40-50 F leaving water temperature
and full-load ice-making applications.
B. The evaporator can be mounted
only on the SAME PLANE OR LOWER
PLANE than the outdoor unit. Figure 28
illustrates what not to do. The elevation
difference is to not exceed 100 feet.
C. Piping between evaporator and
outdoor unit is to not exceed 200
(linear) feet or an equivalent length
(includes equivalent length pressure
drop of fittings) of 300 feet.
D. The suction line must never cross or
be above a plane that is 1’8" above the
bottom of the outdoor unit. Figure 29
illustrates what not to do.

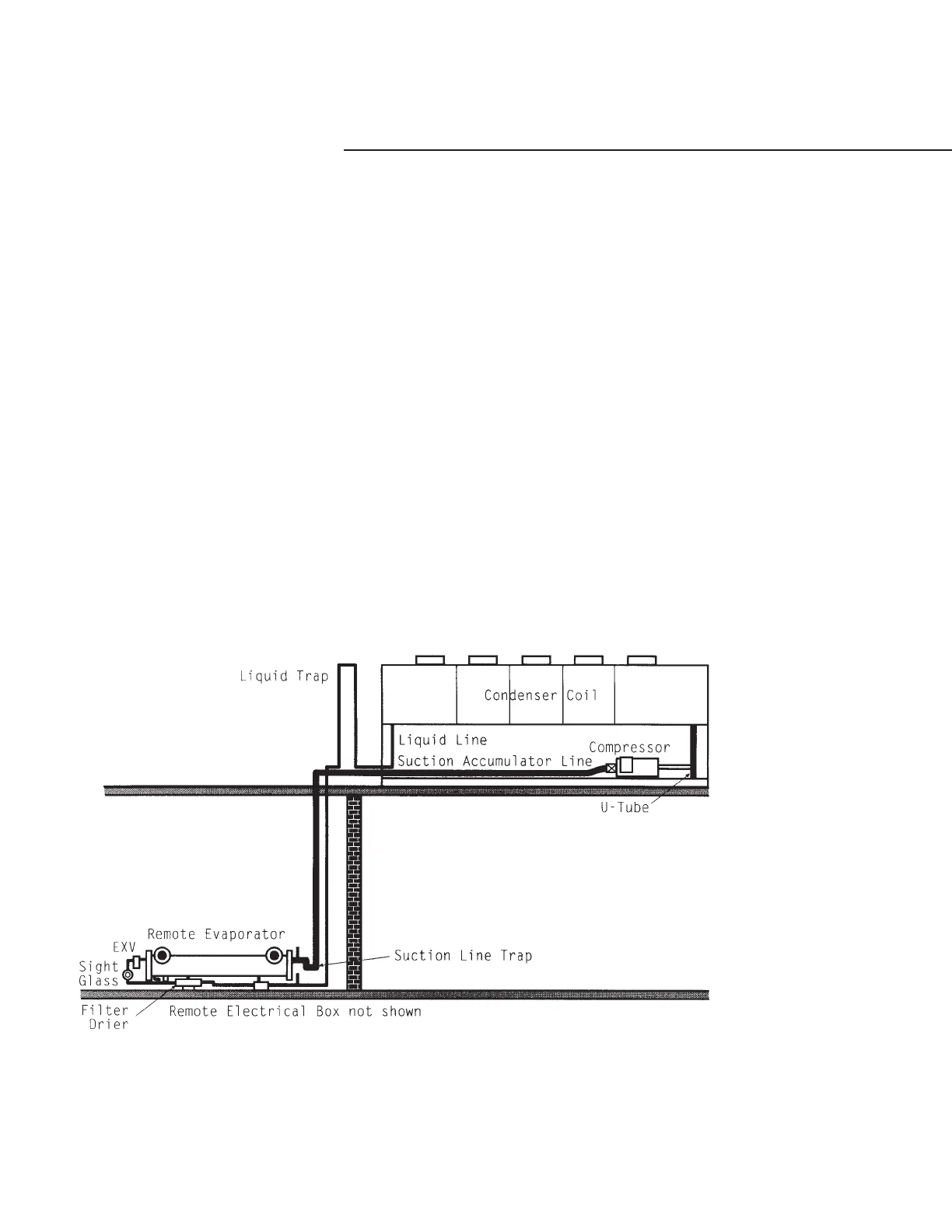

Figure 27
Remote Evaporator Installation –
Condenser and Compressor
above Evaporator
