Installation - Mechanical

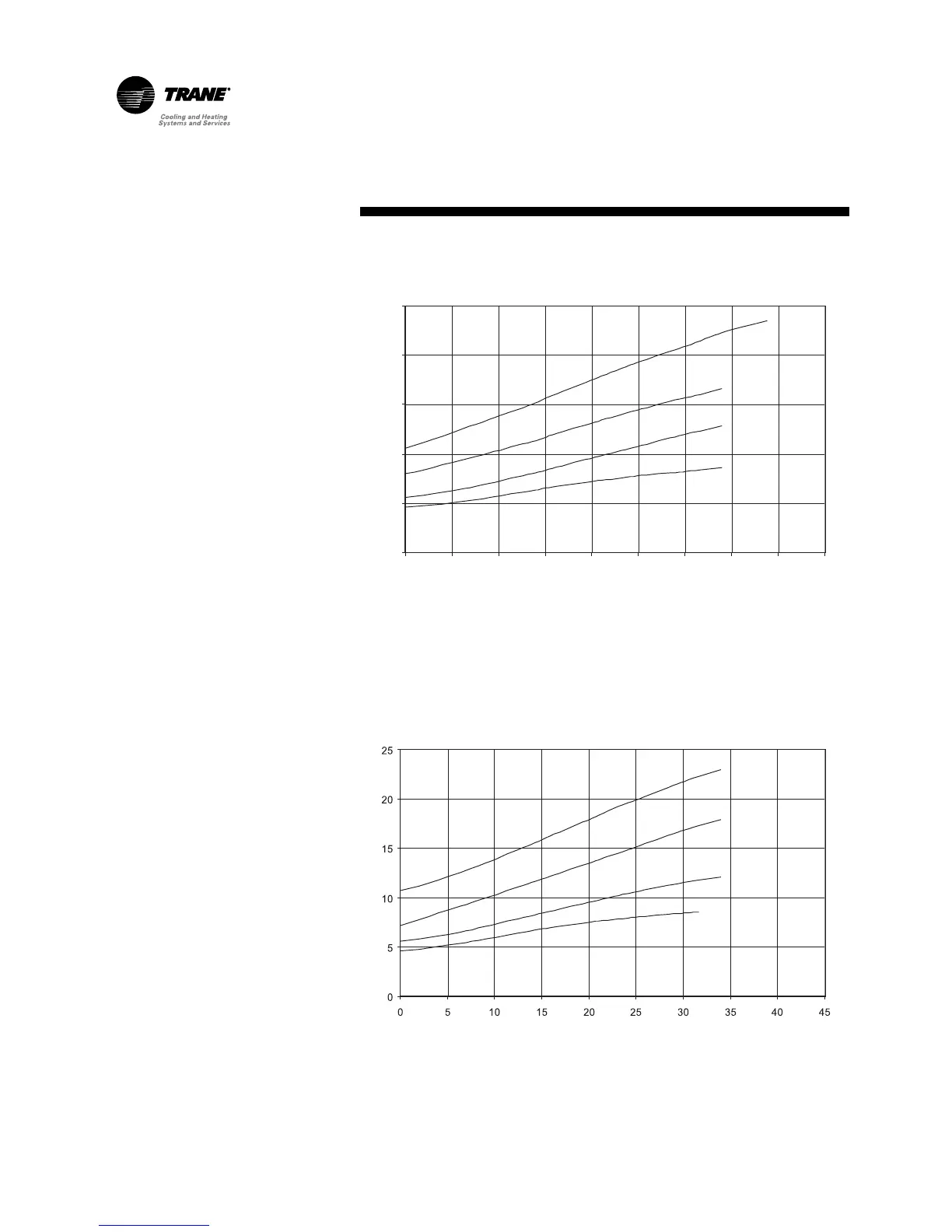

Figure 11 - RTAD 145HE - 150HE - 165SE - 180SE
Pump Current Curve Single Pump
1 = JRN 208-13/5.5
2 = JRN 208-14/7.5
3 = DIL 208-16/11
4 = DIL 208-17/15
Figure 12 - RTAD 145HE - 150HE - 165SE - 180SE
Pump Current Curve Dual Pump
1 = JRN 208-13/5.5
2 = JRN 208-14/7.5
3 = DIL 208-16/11
4 = DIL 208-17/15
A
1
2
3
4
A
l/s
0
5
10
15
20
25
0 5 10 15 20 25 30 35 40 45
A
1
2
3
4
A
l/s
