RTAD-SVX01F-E4 35
Installation - Mechanical

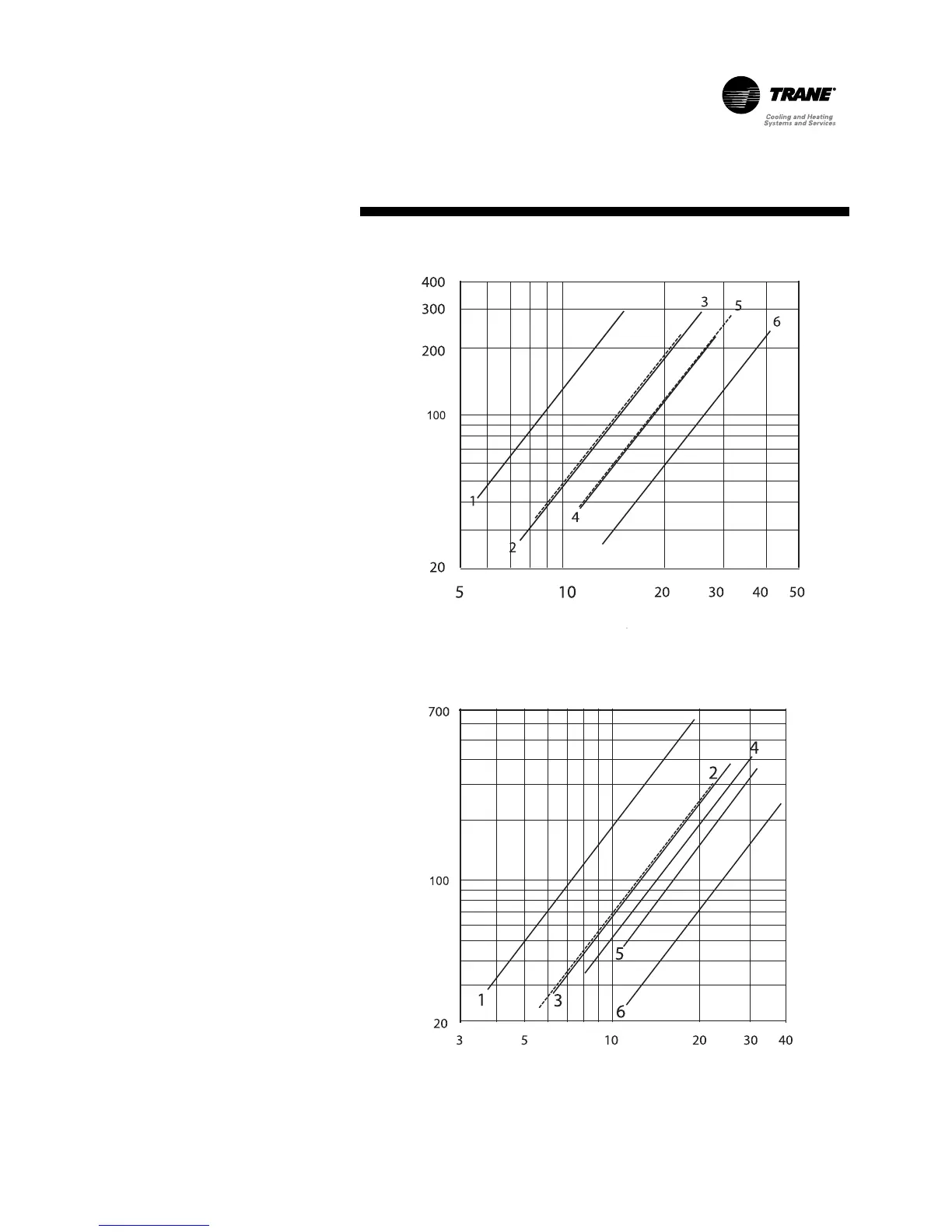

Figure 13 - Water Pressure Drop RTAD Free Cooling - Compressor Mode
Figure 14 - Water Pressure Drop RTAD Free Cooling - Free Cooling Mode
1 = 085 STD
2 = 085 HE, 100 STD
3 = 100 HE, 115 STD
4 = 115 HE, 125 HE, 145 STD, 150 STD
5 = 125 STD
6 = 145 HE, 150 HE, 165 STD, 180 STD
kPa
l/s
kPa
l/s
