which are placed inside the control panel for shipment. Also check for optional components, such as flow
switches and isolators. If optional isolators are ordered, they are shipped mounted on the base of the unit.
Notify any apparent damage or material shortage to the carrier
and TRANE local offices.
Storage
Extended storage of the unit prior to installation requires the following precautions:
• Store the unit in a ventilated, dry and secure area. Allowed environmental temperature range from -25°C to
60°C
• At least every three months, attach a gauge and manually check the pressure in the refrigerant circuit to
verify no refrigerant charge leakage. If the refrigerant leakage occurred, call a qualified service organization
and the appropriate Trane sales office
Note: Pressure will be approximately 200kPa gauge (29 psig) if shipped with a refrigerant “waiting charge”.
Nameplate
The RTXC XE unit nameplates are applied to the exterior surface of the top cover above the control panel
door. A compressor nameplate is located on each compressor. The evaporator nameplate is located on the
shell. And the insulation over the nameplates is intentionally left unglued, for ease in viewing the nameplate.
The receiver and oil separator nameplate are on their shells respectively.
Unit nameplate
The unit nameplate provides the following information:
• Unit model number
• Unit serial number
• Unit nominal cooling,heating capacity
• Quantity of compressor, fans
• Unit electrical requirements and input power
• Correct operating charges of refrigerant and oil
• Unit shipping weight
• Unit dimension

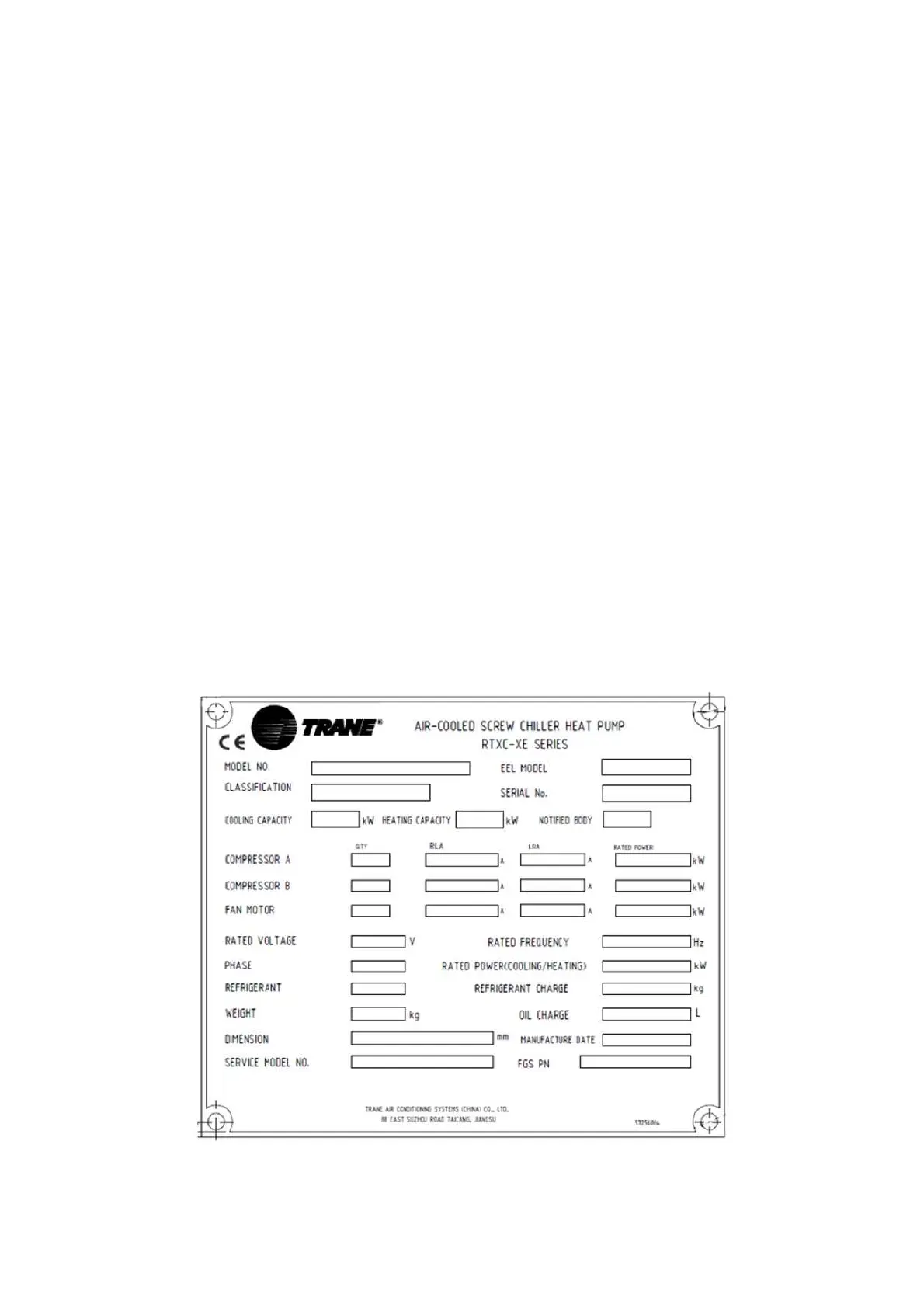

Figure 1 Unit Nameplate
