Note: Low ambient damper is field-installed.

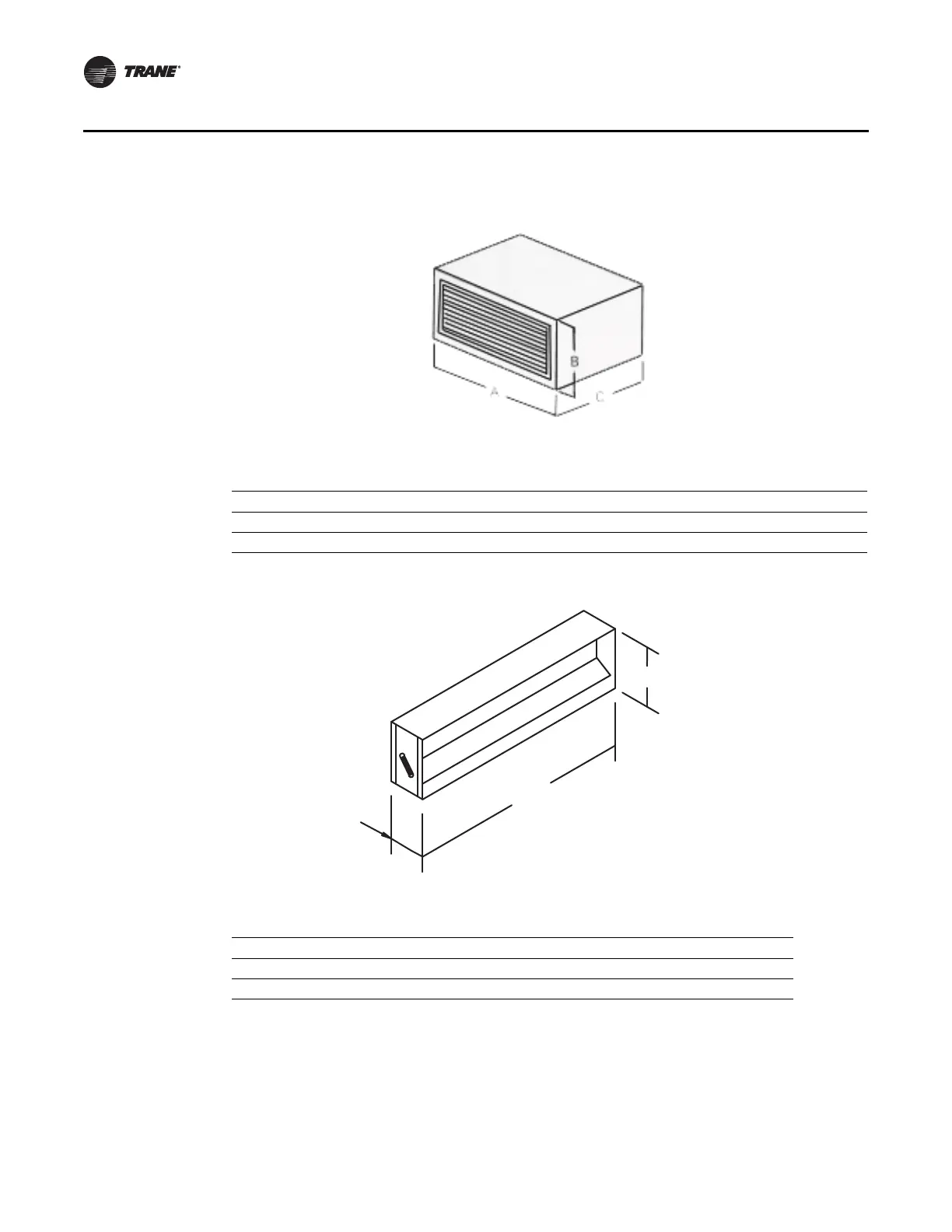

Figure 4. SCIH/SCIJ accessories plenum
Table 2. SCIH/SCIJ plenum dimensions & weight, in-lbs.
Unit Size A B C Grill Size (W x H) Weight
5 & 7.5 ton 56¾ 16¼ 31½ 52¾ x 12¾ 95
10 & 15 ton 85 7/8 16¼ 31½ 81 7/8 x 12¾ 141
Figure 5. Low ambient damper
Table 3. SCIH/SCIJ low ambient damper dimensions & weight, in-lbs.
Unit Size A B C Weight
5 & 7.5 ton 19 1/8 7 7/8 11 20
10 & 15 ton 52¾ 7 7/8 11 40
C
A
B
dimensions and weights
