SXIH-SVX01C-EN 15
Installation

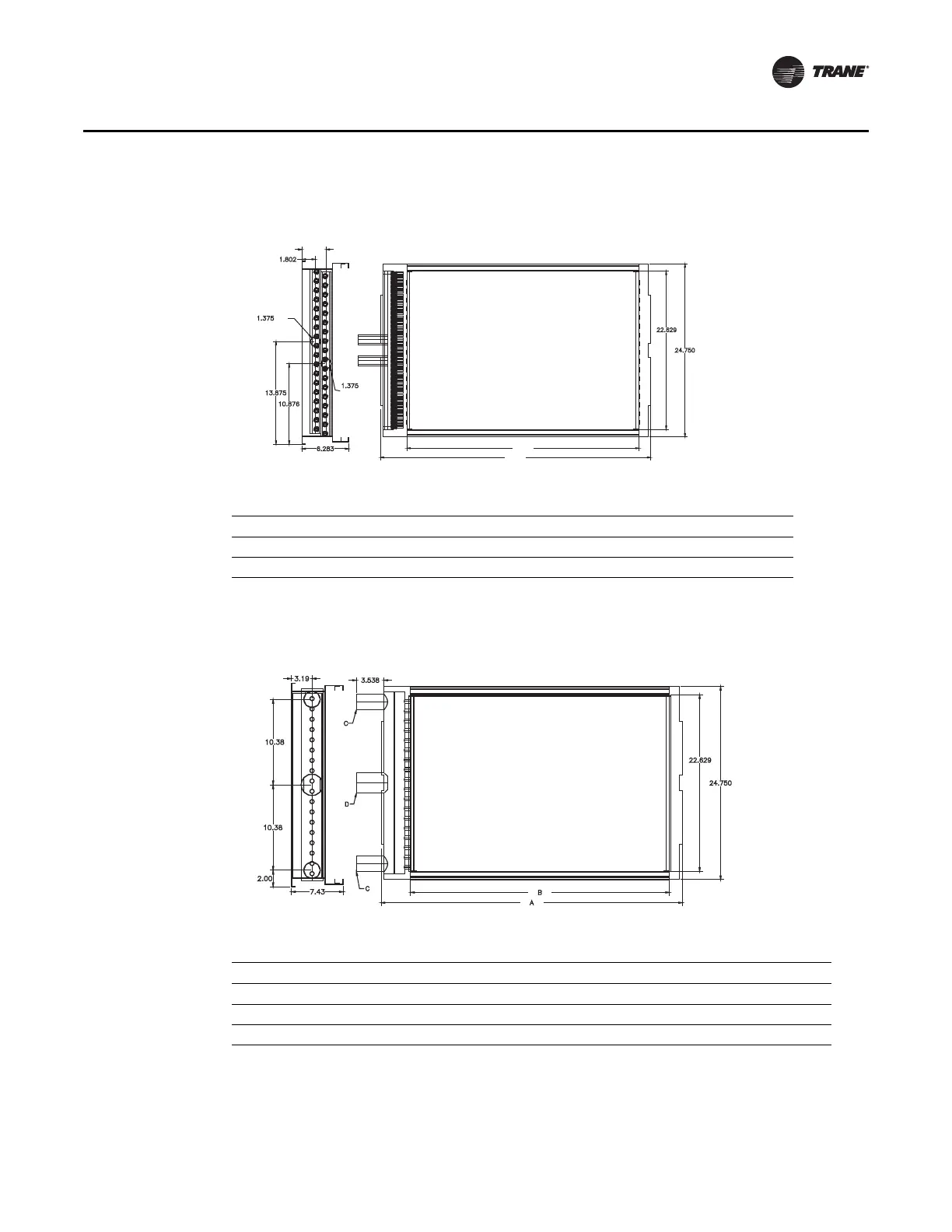

Figure 6. Hot water coil
Table 4. SCIH/SCIJ hot water coil dimensions & weight, in-lbs.
Unit Size A B Wet Coil Weight Dry Coil Weight
5 & 7.5 Ton 52 1/2 47 1/16 63 50
10 & 15 Ton 81 5/8 76 1/4 96 75
Notes:
1. Coils are field installed
2. Coil connections are mirror-image and can be mounted with either left or right hand connections.
Figure 7. Steam coil
Table 5. SCIH/SCIJ steam coil dimensions & weights, in-lbs.
return supply
Unit Size A B C D Weight
5 & 7.5 Ton 52½ 45 7/8 1½ 2 68
10 & 15 Ton 81 5/8 74 2 3 93
Notes:
1. Coils are field-installed.
2. Coil connections are mirror-image and can be
mounted with either left or right-hand connections.
3.239
OD
CONNECTION
CONNECTION
OD
A
B
