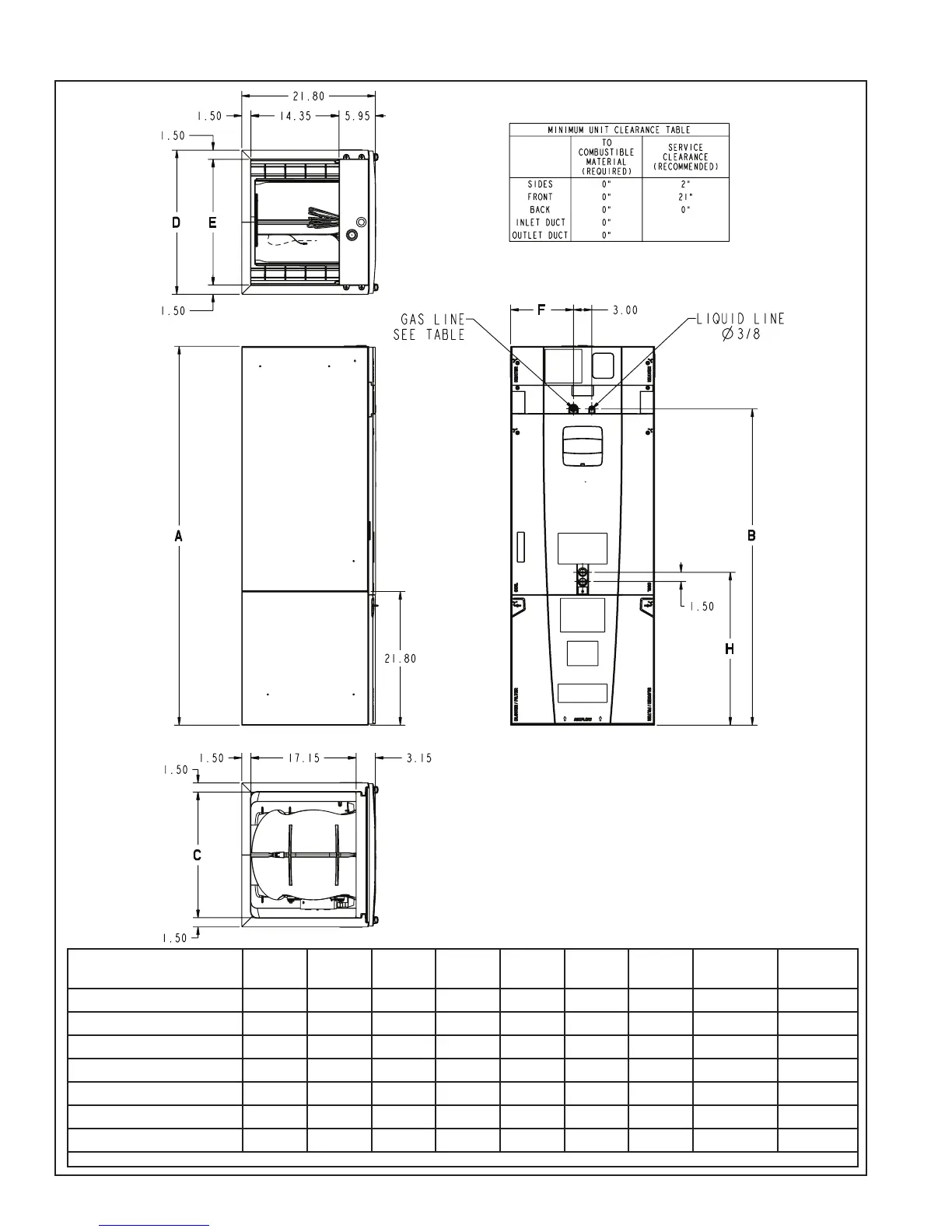

Section 16. Unit Outline Drawing
MODEL NO. A B C D E F H FLOW
CONTROL
GAS LINE
BRAZE
TAM4A0A18, *AM4A0A18 49.9 39.6 14.5 17.5 14.5 7.3 26.7 EEV/24V 3/4
TAM4A0A24, *AM4A0A24 49.9 39.6 14.5 17.5 14.5 7.3 26.7 EEV/24V 3/4
TAM4A0A30, *AM4A0A30 49.9 39.6 14.5 17.5 14.5 7.3 26.7 EEV/24V 3/4
TAM4A0A36, *AM4A0A36 49.9 39.6 14.5 17.5 14.5 7.3 24.4 EEV/24V 3/4
TAM4A0B42, *AM4A0B42 55.7 45.5 18.4 21.3 18.4 9.2 24.8 EEV/24V 7/8
TAM4A0C48, *AM4A0C48 56.9 46.7 20.5 23.5 20.5 10.3 24.2 EEV/24V 7/8
TAM4A0C60, *AM4A0C60 61.7 51.5 20.5 23.5 20.5 10.3 27.0 EEV/24V 7/8
* May be “A” or “T”
