74 CLCH-SVX07C-EN
Component Installation Requirements

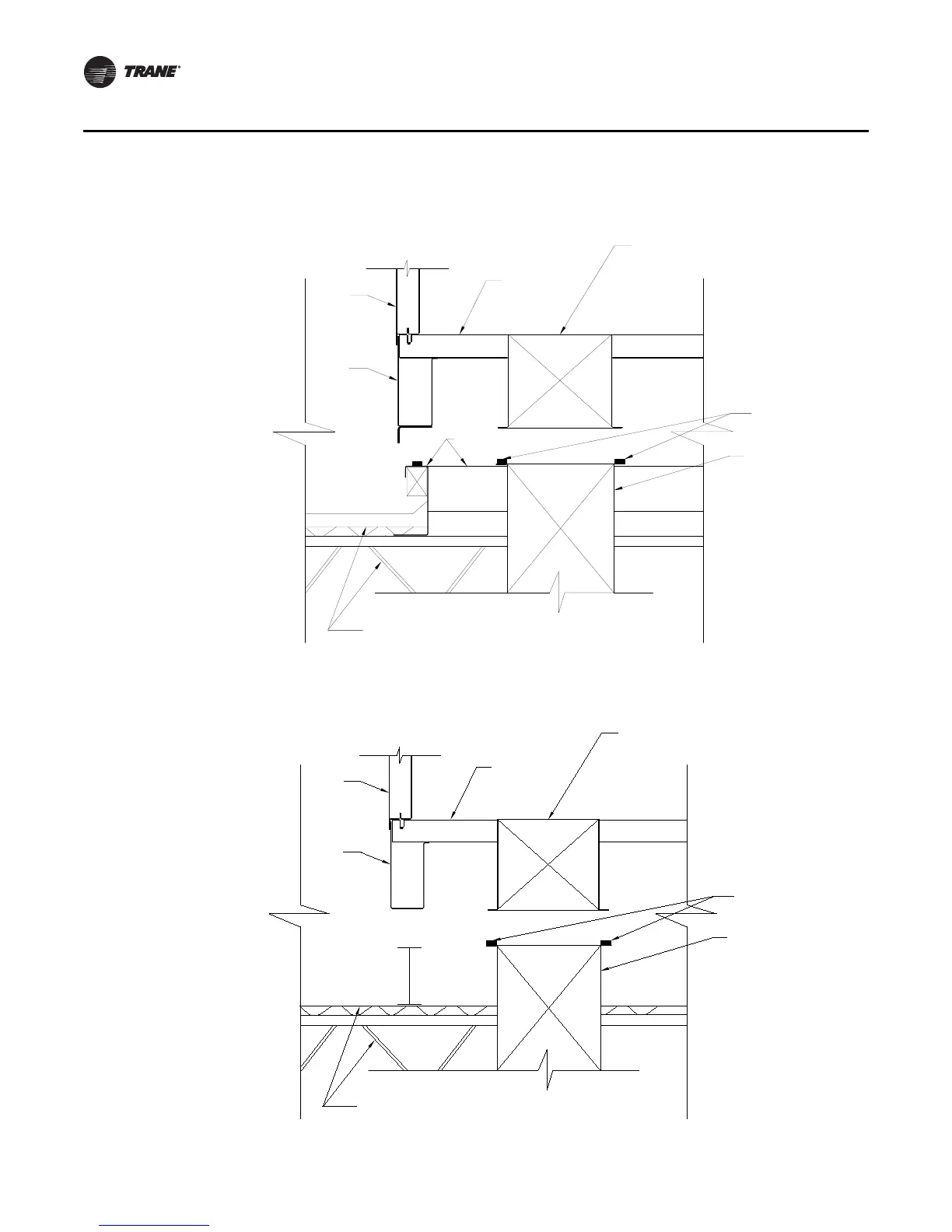

Figure 61. Field-supplied duct connection details - curb mount
Figure 62. Field-supplied duct connection details - pier mount
Field-supplied
duct
Gasket
Supply opening
in floor
Roof Curb
Unit
base
Unit
wall
Unit floor
Building roofing
and structure
may vary per job
Field Supplied Duct
Gasket
Supply opening
in oor
Unit
Base
Unit
Wall
Unit
Floor
Building roong
and structure
may vary per job
