Trane WTK507 - Dimensional Data

14
WTK-SVN001-EN

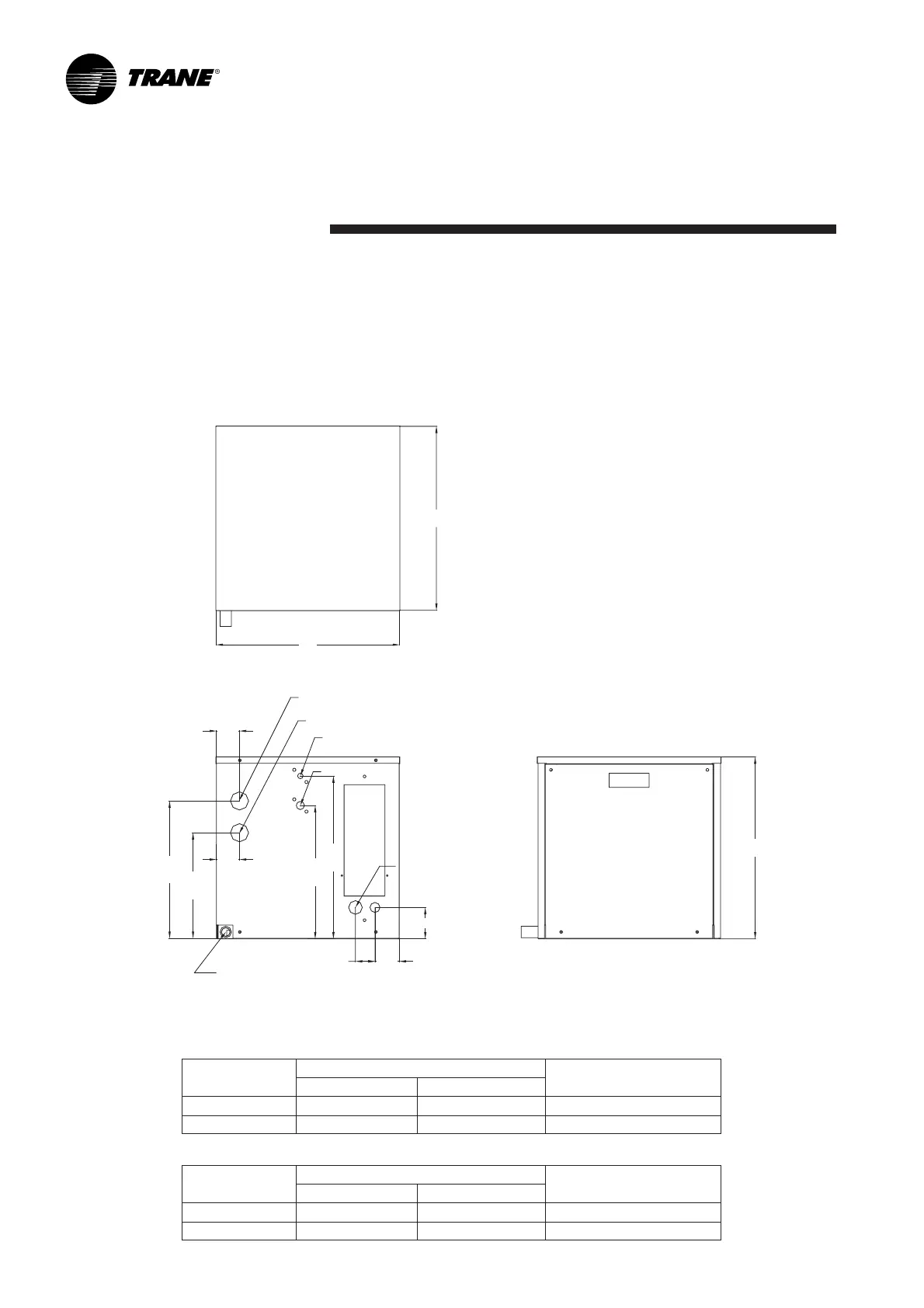

Dimensional Data
WATER INLET
WATER OUTLET
400
50.8
50.8
53.543
400
400
302.2
232.2
293.2
358.2
69
LIQUID LINE
SUCTION LINE
POWER SUPPLY
Ø3/4 In.
Ø3/4 FTP DRAIN PIPE
DOMESTIC
MODEL
REFRIGERANT CONNECTION SIZE (In.) WATER
LIQUID SUCTION CONNECTION SIZE (In.)
WTK507-509 1/4 3/8 3/4
WTK512-518 3/8 5/8 3/4
EXPORT
MODEL
REFRIGERANT CONNECTION SIZE (In.) WATER
LIQUID SUCTION CONNECTION SIZE (In.)
WTK507-509 1/4 3/8 3/4
WTK512-518 1/4 1/2 3/4
WTK507-518
