16 Wireless Sensors • BAS-SVX04C-EN
Installation

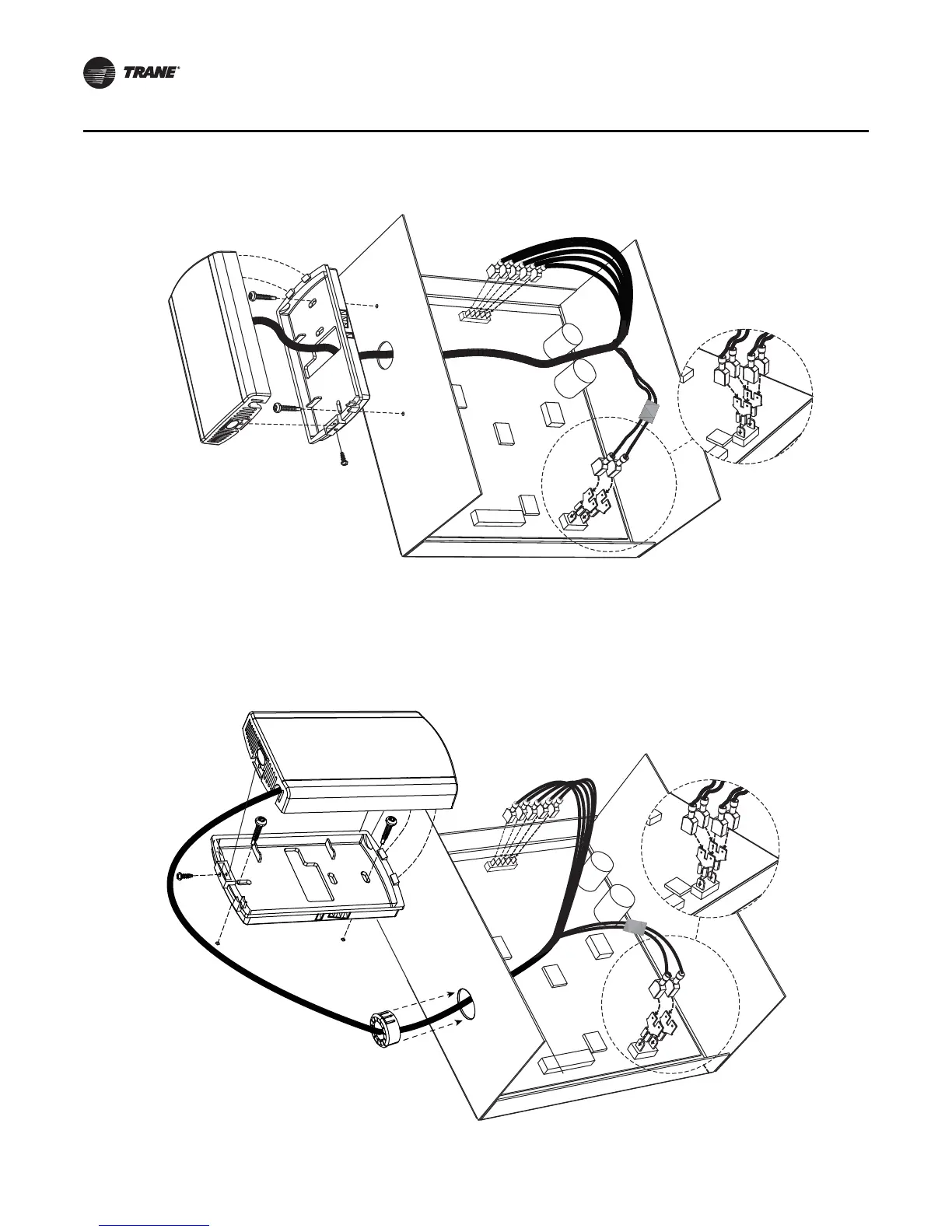

Figure 3. Wiring a receiver to a unit controller through the opening in the back of the receiver back plate
Figure 4. Wiring a receiver to a unit controller through the bottom slot in receiver cover
