Unit Dimensions
16 RT-SVX21K-EN

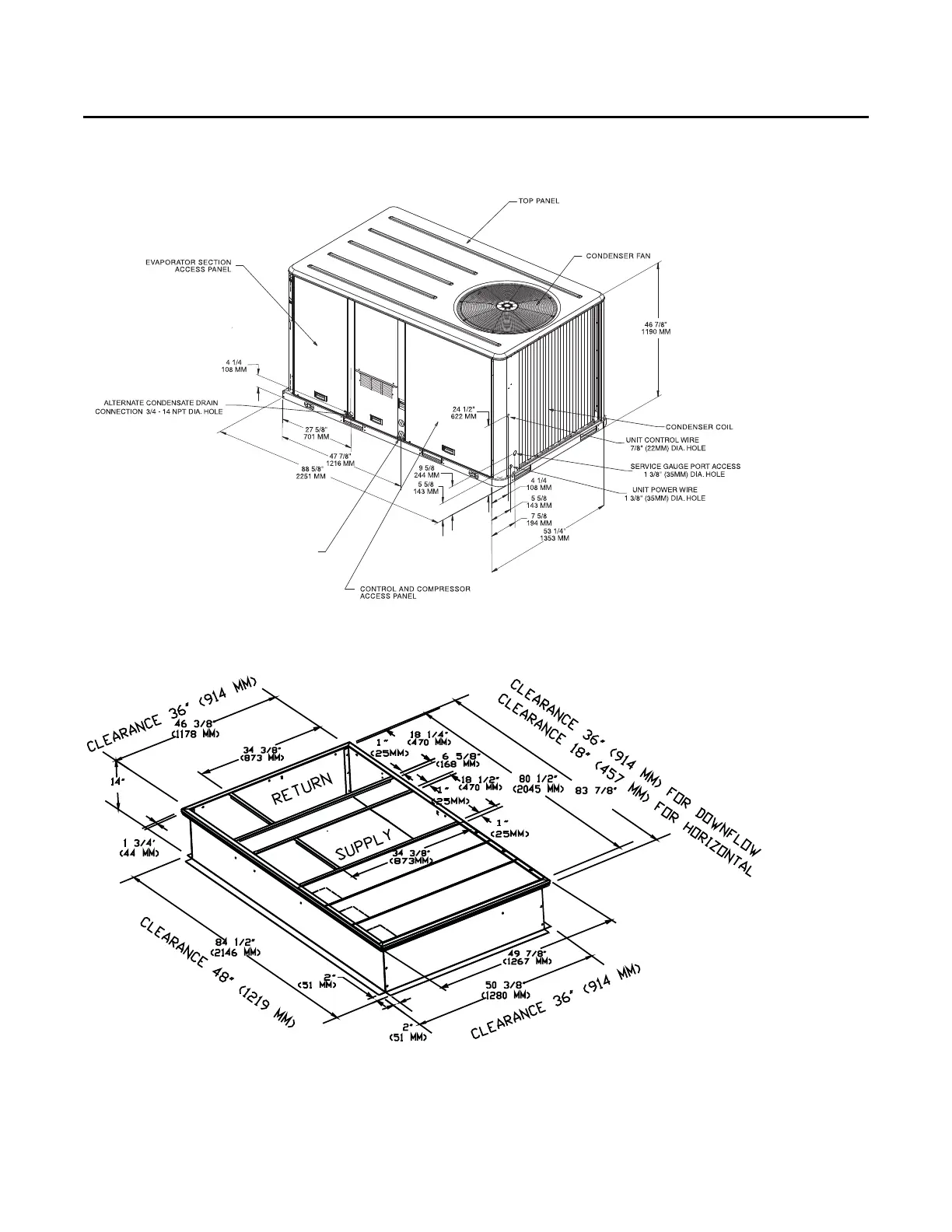

Figure 8. 7½ ton (dual) - 10 ton standard efficiency, 6 - 7½ (MCHE) ton high efficiency
Note: All dimensions are in inches/millimeters.
(TC MODELS)
2” ELECTRICAL CONNECTION
(SINGLE POINT POWER
WHEN HEAT INSTALLED)
1/2 NPT GAS CONNECTION
(80 mbh, 120 mbh)
3/4 NPT GAS CONNECTION
(150 mbh, 200 mbh, 250 mbh)
(YC MODELS)
Figure 9. 7½ ton (dual) - 10 ton standard efficiency, 6 - 7½ (MCHE) ton high efficiency - roof curb
Note: All dimensions are in inches/millimeters.
