Installation

RT-SVX21K-EN 35

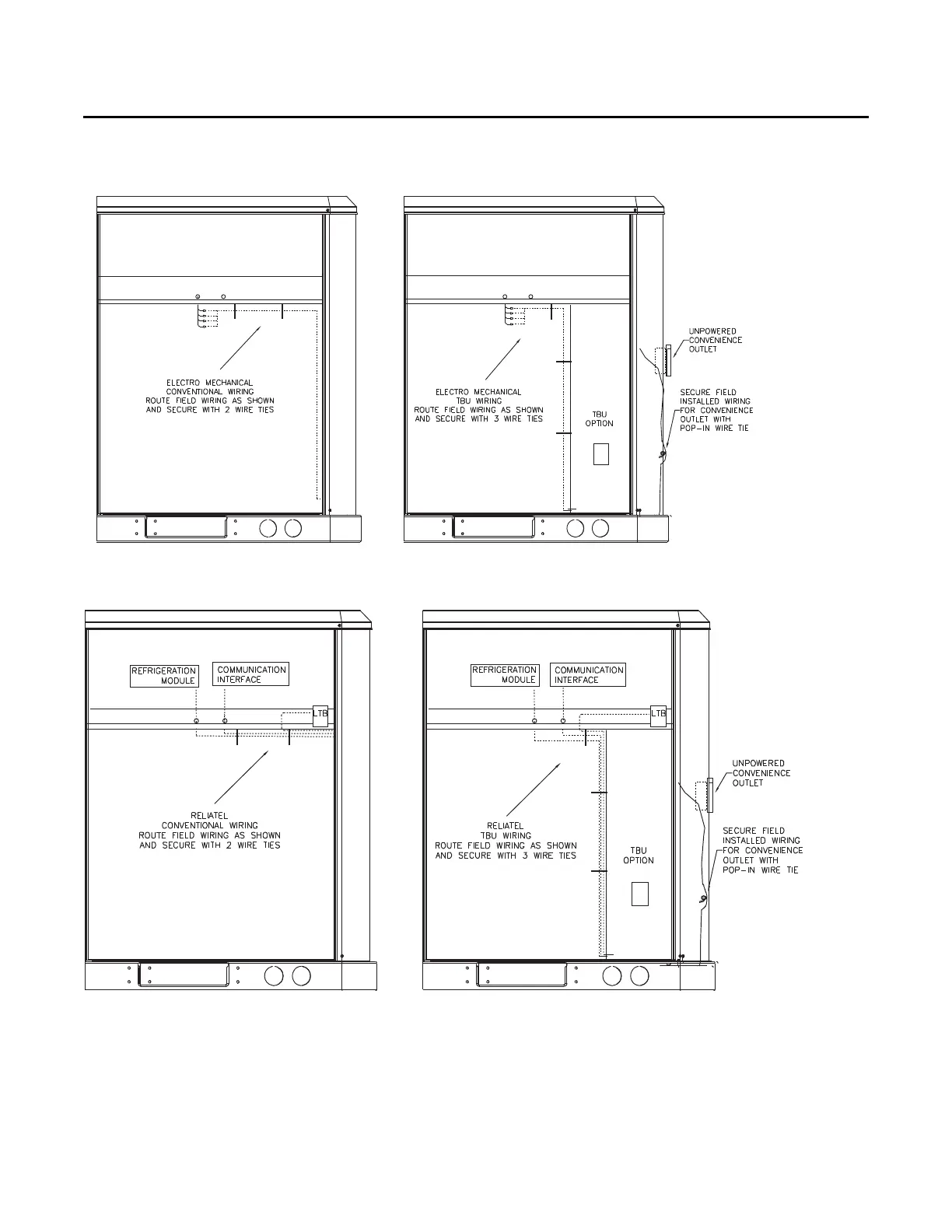

Figure 45. Electromechanical control customer low voltage routing (all units except 7½ (dehumidification) - 10 ton

high efficiency)

Figure 46. ReliaTel control customer low voltage routing (all units except 7½ (dehumidification) - 10 ton high

efficiency)
