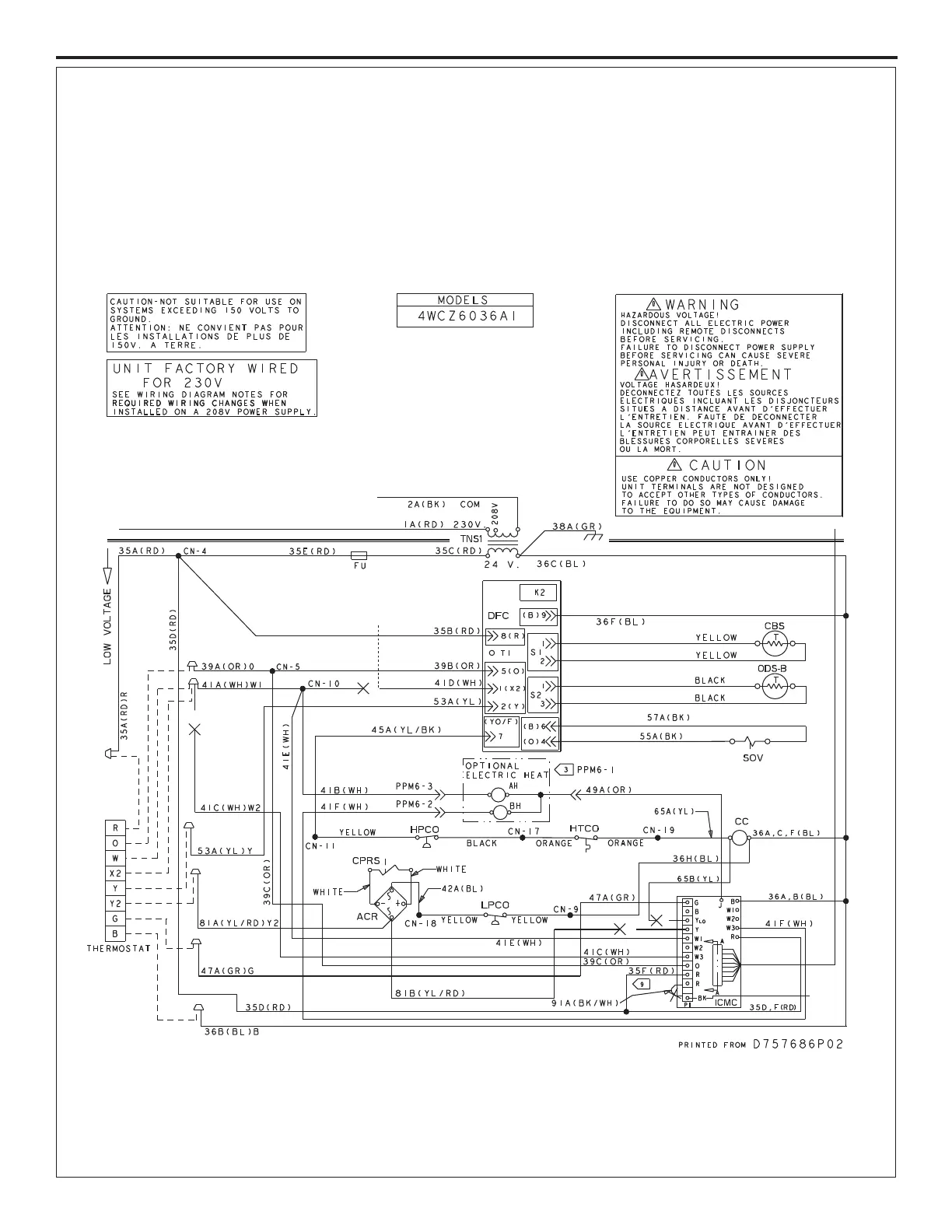

Trane ZSASSMAL012 - 4 WCZ6 Packaged Unit Wiring Diagram; Unit Safety, Model, and Voltage Information; Low Voltage Wiring and Component Layout

INSTALLER'S GUIDE
18-HH08D10-2Page 18
4WCZ6 PACKAGED UNIT
Figure 18
CAP
REDIRECT
41C TO "W2"
ON TB2
REDIRECT
41D TO "D"
ON TB3
TO "BK"
ON TB2
REMOVE
CAP
CAP
FIELD SUPPLIED WIRE
