TransAct EPIC 950 - Firmware Download and Testing; Required Download Hardware; Hardware Connection Guide

Download and Test Hardware
14
Required Download Hardware:
TodownloadprinterrmwareintoanEpic950printerrequires
some additional hardware available for purchase from TRANS-
ACT or our distributors. 100-06693L “Single-download Kit” in-
cludes the items below whereas 100-06935L includes an Outer
Chassis with a Serial interface needed to dock and power the
printer.
imPort™:
The Epic 950 printer features an imPort™
rmwareandgraphicsdownloadport.This
port uses a 4-pin Molex connector with an
RS-232 interface for connecting with a PC at
axedBaudRateof115,200bps.
Warning: Do not plug power into imPort™
Making the connections:

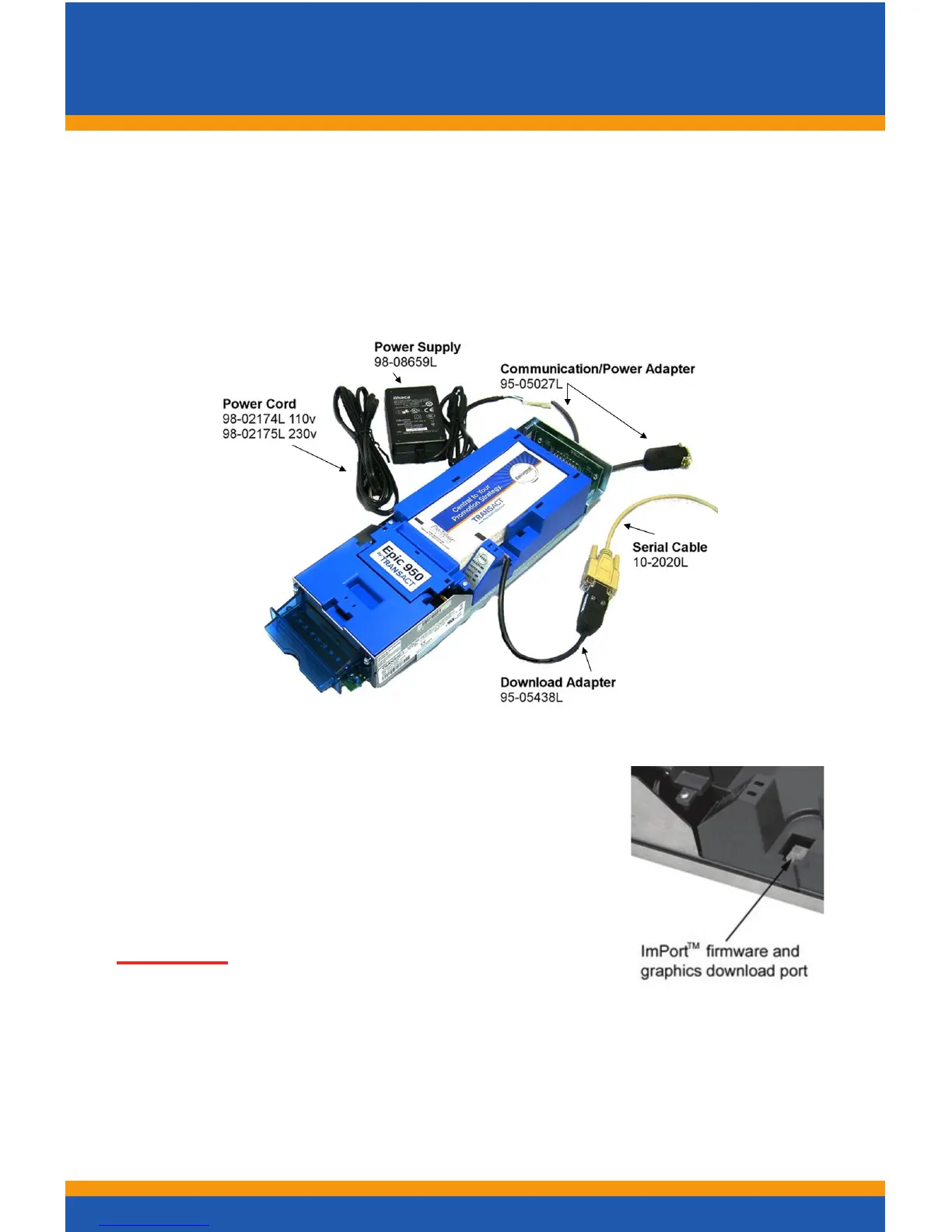

Attach the hardware included in the Single Download Kit as
shown above. Note: Power can be supplied to the printer from;
a slot machine, form the 4-pin power connector into a USB I/F
PCB, or via the Communication/Power Adaptor when attached
to an Outer Chassis with a 14-pin Serial Interface connector.
