Transpak Atlantis TP-701 - SQ5 Sensor Status; Start Switch and M5 Motor

TP-701 / TP-701P Q&A
Confidential TO: FROMM HOLDING AG Page 21 of 23 8/19/2008
4. SQ5 (TF-007) is broken or poor connection (check if the 5
th

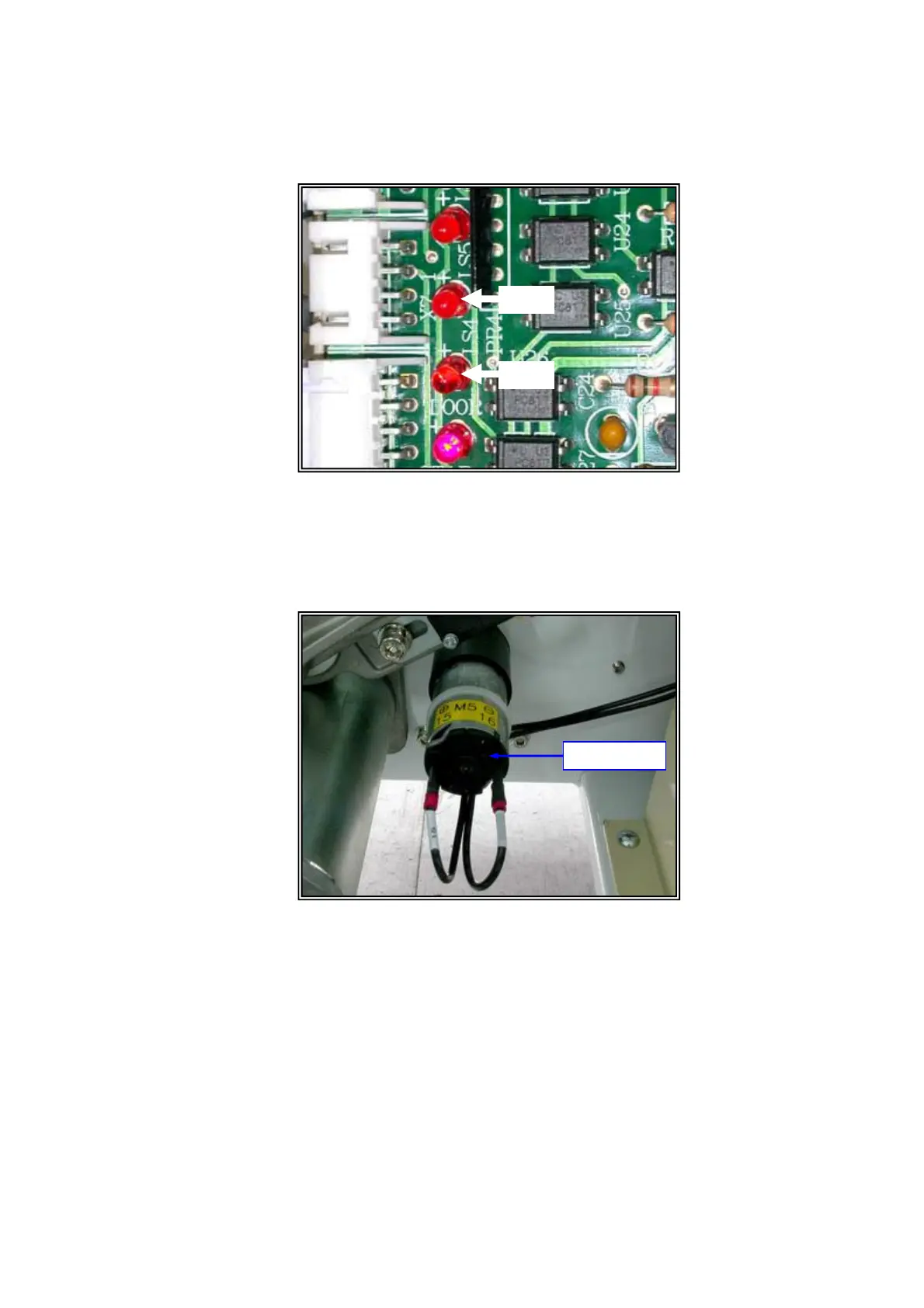

LED (LS5) from bottom
on upper left corner on PCB, LED is on, LED is on when SQ5 is trigged)
5. Problems with Start Switch (T6-6-10301), please refer to Q&A Question I. 5
6. M5 motor (T6-1-61210) is broken or poor connection makes Balance Bar (T7-3-10140
/ T7-3-10141) not able to move..
LS4
LS5
T6-1-61210
