Semi-Auto Strapping Machine TP-201/202/203/202L
Q&A
Confidential TO: FROMM HOLDING AG
Page 6 of 7 8/19/2008
(i) The heater is deformed so that it cannot slide in between the upper and lower straps.
XV. Incomplete cutting
(a) Move TA-239 Cutter Holder to the right to touch the TA-069 Press Bar slightly.
(b) Replace TA-069 Press Bar or reverse and re-insert the old one.
(c) Replace TA-079 Front Bar.
(d) Check if the BR635ZZ Bearing of TA-069 Press Bar or TA-079 Front Bar is broken.
(e) Check if the TA-078 Spring of TA-069 Press Bar is overstretched.
XVI. Misaligned strap joint or insufficient strap joint
(a) Adjust the heater so that it slides horizontally into the upper side of TA-069 Press Bar.
(b) Adjust TB-197 Guide Front and TB-208 Front Plate to align the upper p.p. strap with
the lower p.p. strap.
(c) Replace TA-080 Slide.
(d) Replace the TB-114 Return Spring of TB-102 Heater Arm.
XVII. After one complete cycle, the machine continues feeding or reverses a little
bit
(a) wipe out the debris inside the holder (TB-123) and the Bracket (TB-158).
(b) Use hands to move the Feed Arm (TB-165) up and down, check if the gap between

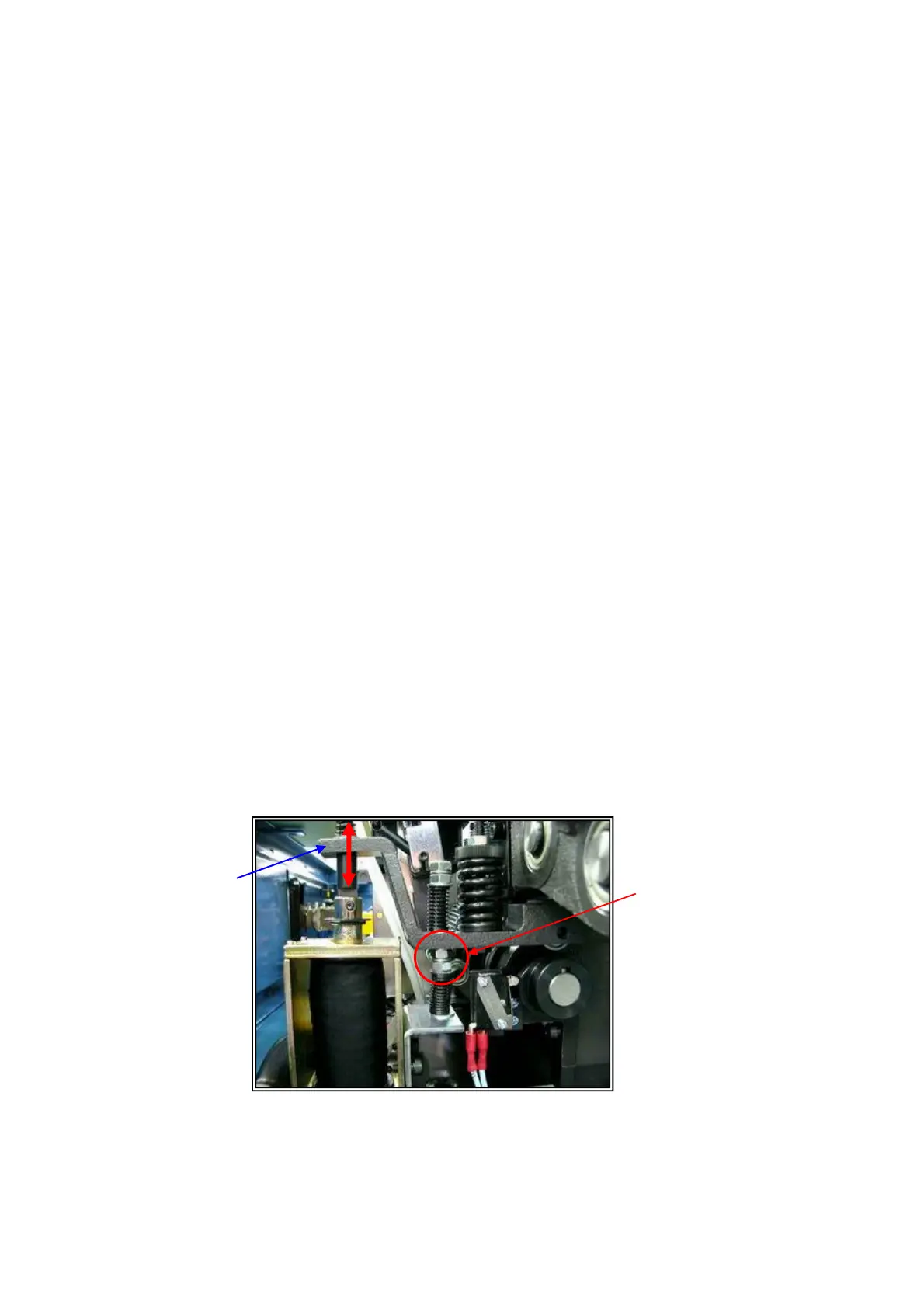

roller (TB-117) is even. If not so, please adjust the HN06 Bolt which indicated in the
picture below.
HN06 Bolt
Feed Arm
