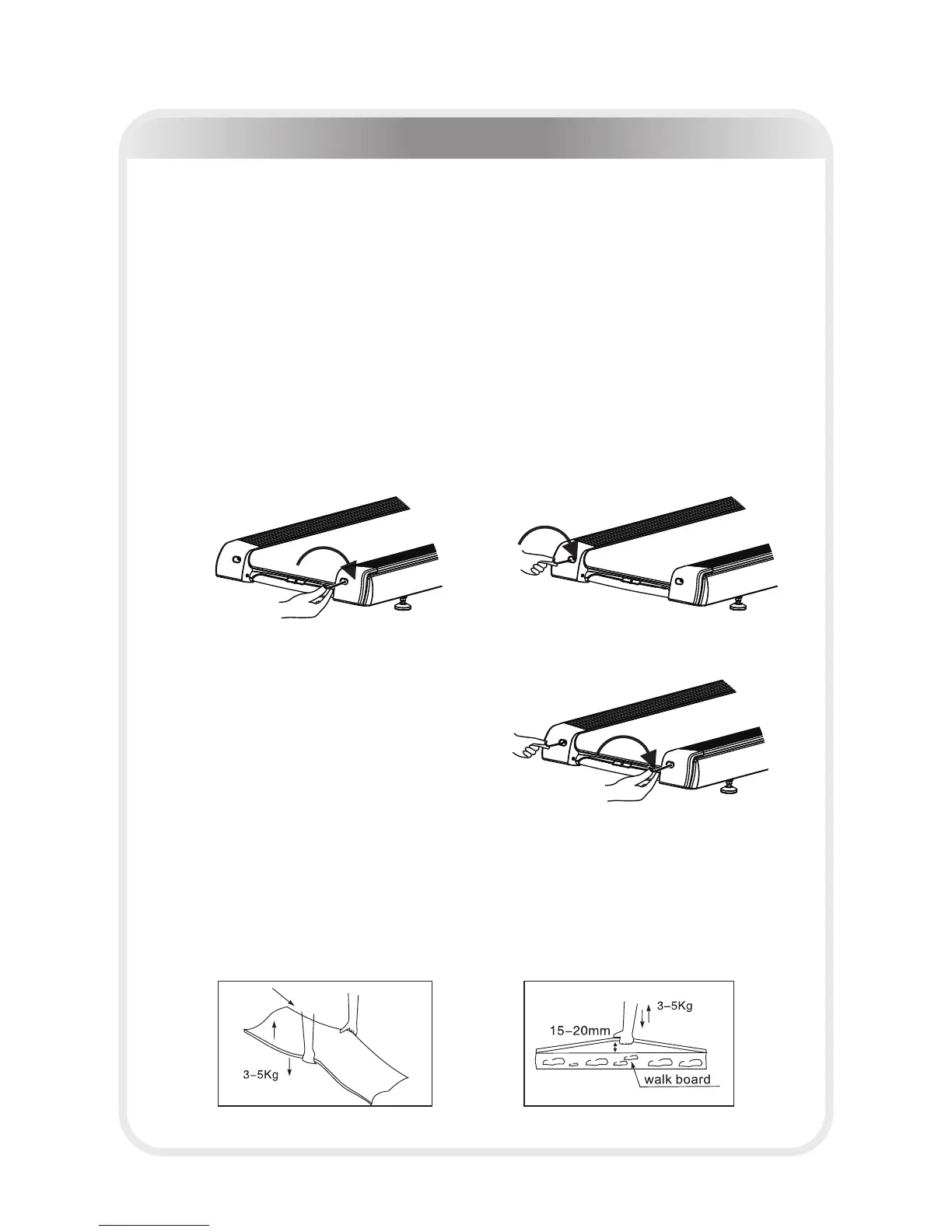

Belt Adjustment and Maintenance
A
B
1. Belt Adjustment:
Belt adjustment and tension performs two functions:
*The distance between belt and motor cover from left to right within +/-5MM,
then needed to be adjusted.
*Adjust belt by speed not more than 4KMH.
A. Running Belt is shifting to the right:
Using hex key provided, turn the right rear roller adjustment bolt turn in the
clockwise direction shown as below or on the contrary direction.
B. Running Belt is shifting to the right:
Using hex key provided, turn the right rear roller adjustment bolt turn in the
clockwise direction shown as below or on the contrary direction.
Running belt is Slipping during use:
Slight running belt slipping is on normal
while using for a period using the hex key
provided, turn both left and right rear roller
adjustment bolts in the same distance.
See the correct running belt shown as below:
A. The distance between running belt and board is within
15-20mm----Normal
Over 20mm----needed to be adjustded
Under 15mm----needed to be adjustded
