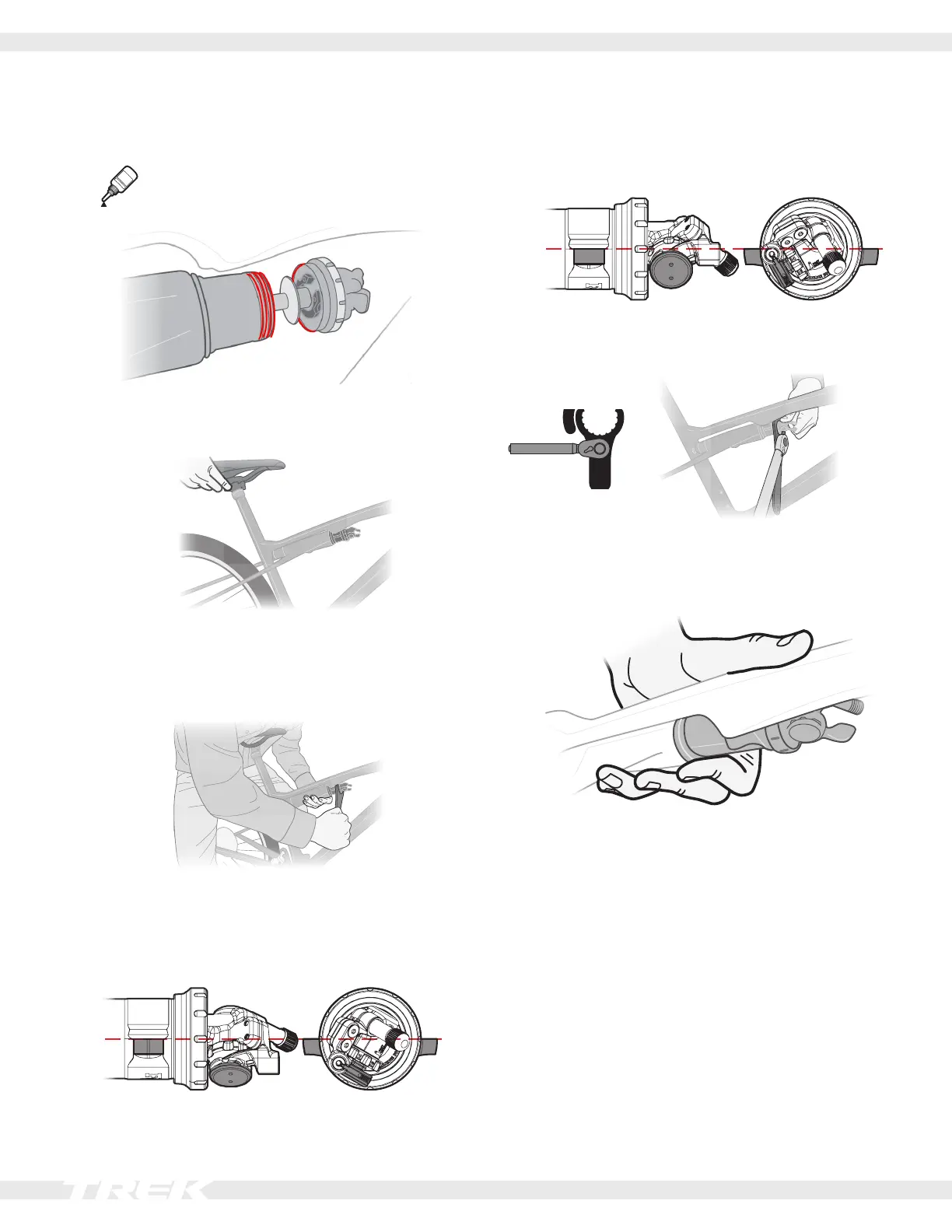

Air volume spacer (continued)
Tighten the lockring
1. Add Loctite Blue 243 threadlocker or similar to
a minimum of 2 threads covering 60-90°of
threads.
2. Standbehindtheseatandpulltheseatuptoextend
thesuspension.Thiswillbringthelockringincontact
withthestrut.
3. UsetheBSA30wrenchtoturnthelockringontothe
strut.
Tip: For best results, sit on the rear tire for this step
tobalancethebike.
4. As you tighten the lock ring, orient the upper air cap
asshownbelow.
Size small frame: theairllvalvealignswiththe
mountingtab.
Size medium, large and extra large frames: the
cablehangeralignswiththemountingtab.
5. PlacethetorquewrenchintheholeintheBSA30
wrench.Torquethelockringto17Nm.
6. Verifytheshockispositionedtoacceptashock
pumptotheairvalve.Ifthereisinterference,reposi-
tiontheshock.
7. Install the washers and bolts at the front of the
shock.Torquetheboltsto5Nm.
8. Torquetherearshockaxleto10Nm.
9. Usetheshockpumptore-inatetheshockairpres-
sure to the PSI noted prior to beginning the air spacer
procedure.
10. Perform the sag procedure to determine the proper
ridersettingforthestrut.
