Trek 2022 E-CALIBER - Suspension

2022 E-Caliber Service Manual
21
Suspension
Therststepinsuspensionsetupistosetthesag.Allothersettingsshouldbeadjustedaftersettingthesag.
For instructions on how to set the sag, please view the Suspension setup video at trekbikes.com/manuals.
Refer to the suspension setup card included with your bike or the online suspension calculator at suspension.trekbikes.com.
For recommended rebound settings refer to the suspension calculator at suspension.trekbikes.com.

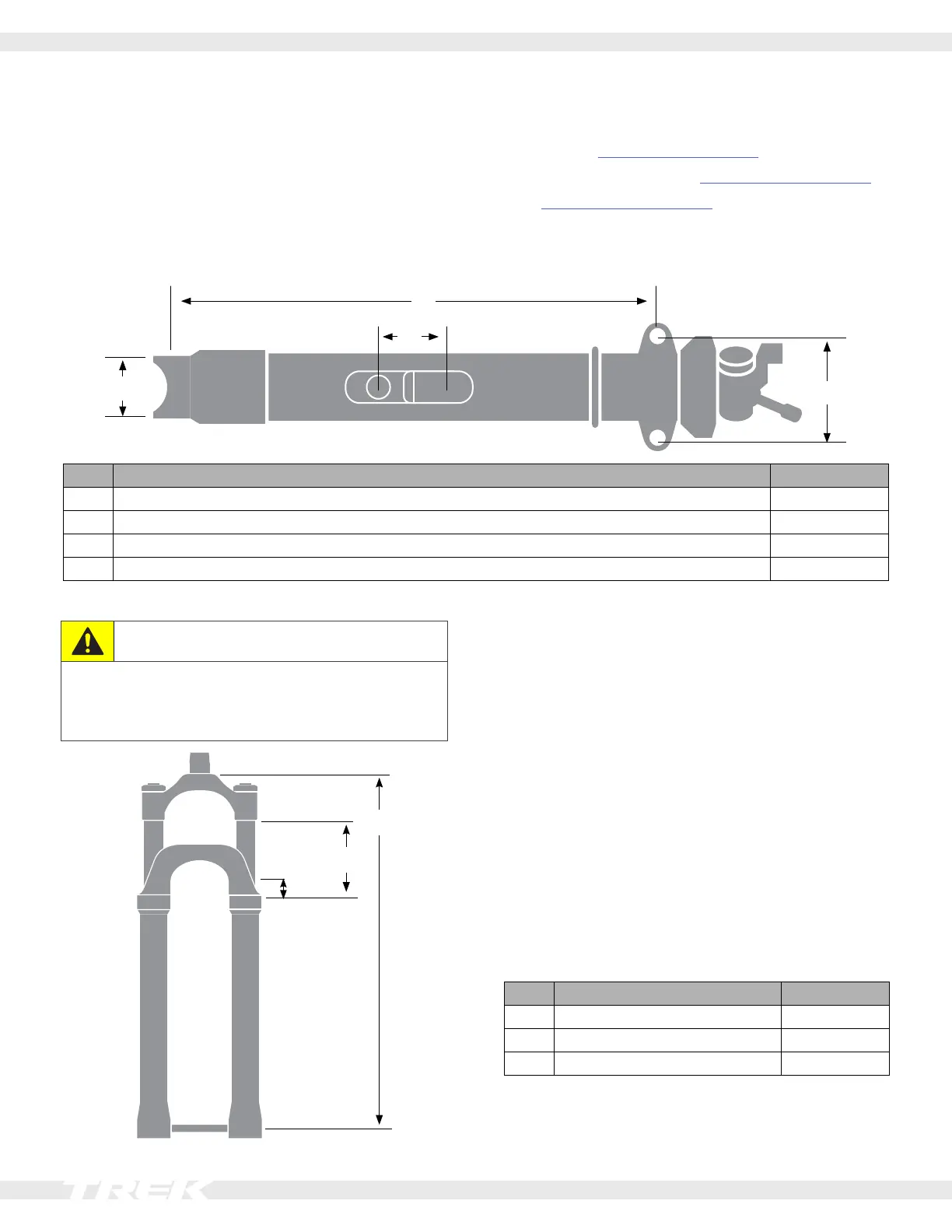

IsoStrut
• Recommended sag: 20-25%
1
2
4
3
Item Description Dimension
1 Shock eye-to-eye length 235mm
2 Stroke length 32.5mm
3 Rear mount width 31mm
4 Front mount width 48mm
Fork
WARNING
Maximumforklengthismeasuredaxletocrown.
Exceedingtherecommendedmaximumforklengthcould
damage the bicycle and could cause severe injury to the
rider.
2
1
3
Item Description Dimension
1 Recommended sag 18mm/15%
2 Travel 120mm
3 Maximumforklength 531mm
