Trek 2022 E-CALIBER - Cabling Overview

2022 E-Caliber Service Manual
8

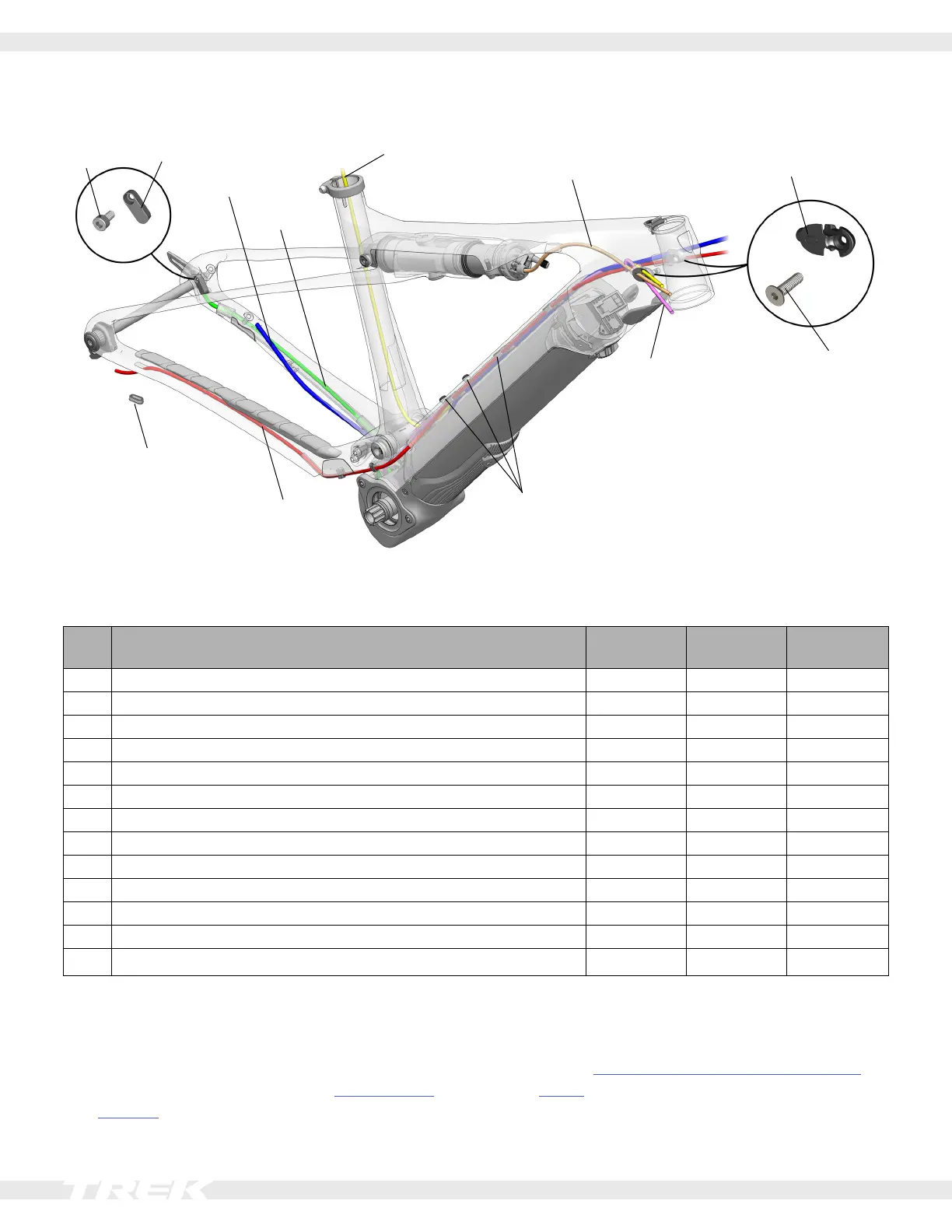

Cabling overview








1
4
5
6
9
10
11
12
7
8
2
3
Item Description Quantity in
Assembly
Part Number Torque (Nm)
1 Bolt 1 W562831 3
2 Speed sensor 1 W581396 —
3 Rear brake cable 1 — —
4 Speed sensor cable 1 — —
5 Dropper post cable 1 — —
6 IsoStrut lockout cable 1 — —
7 Head tube cable guide 2 W519232 —
8 Head tube cable guide fastener 2 W532763 1
9 Controller cable 1 — —
10 Down tube cable guide 3 W591416 —
11 Rear derailleur cable 1 — —
12 Grommet, for use with wireless derailleur only 1 5259425 —

Zip tie location 4 — —
Routeandziptiethecablesasshownintheillustrationabove.
Dropper cable
• For detailed dropper remote instructions, please refer
to the Drop Lock Remote manual at trekbikes.com/
manuals.
IsoStrut cable
• See the IsoStrut remote lockout cable section on
page 9.
