Trek 2022 E-CALIBER - Main Pivot

2022 E-Caliber Service Manual
6

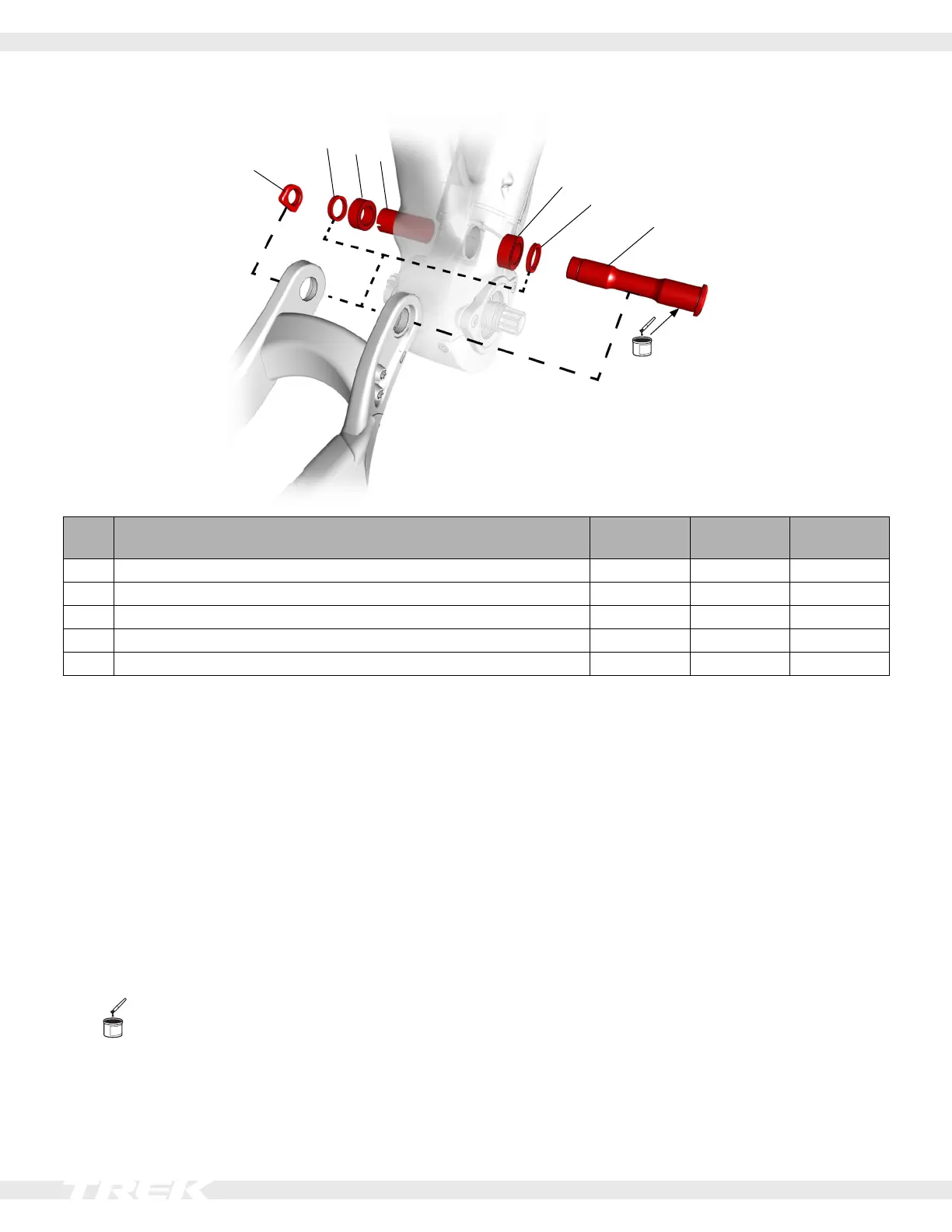

Main pivot
1
2
3
4
3
2
5
Item Description Quantity in
Assembly
Part Number Torque (Nm)
1 Main pivot nut 1 W584134 —
2 Washer 2 W440921 —
3 Main pivot bearing 2 W302025 —
4 Main pivot sleeve 1 W600642 —
5 Main pivot bolt 1 W600628 30
Tools
• Bearing press
• 8mmhextool
• Torquewrenchwith8mmhexbit
• Grease
1. Pressinthedrivesidebearing(3).
2. Insertthesleeve(4)fromthenon-driveside.
3. Press-inthenon-drivesidebearing(3).
4. Position the chainstay over the seat tube, making
surethemainpivotholesarealigned.
Tip: Slidethelongarmofthehextoolfromthenon-
drivesideandthroughthealignedpivotholes.For
eachstep,slidethecomponentontothehextoolto
alignthecomponentsoneachsideofthemainpivot.
5. Apply grease to the shoulder of the main pivot
bolt(5).
6. Insert the driveside washer (2) between the bearing
thechainstay.
7. Partially insert the main pivot bolt (5) from the drive
side.
8. Insert the non-driveside washer (2) bewtween the
bearingthechainstay.
9. Fullyinsertthemainpivotbolt(5).
10. Installthenut(1).
11. Torquethemainpivotbolt(5)to30Nm.
