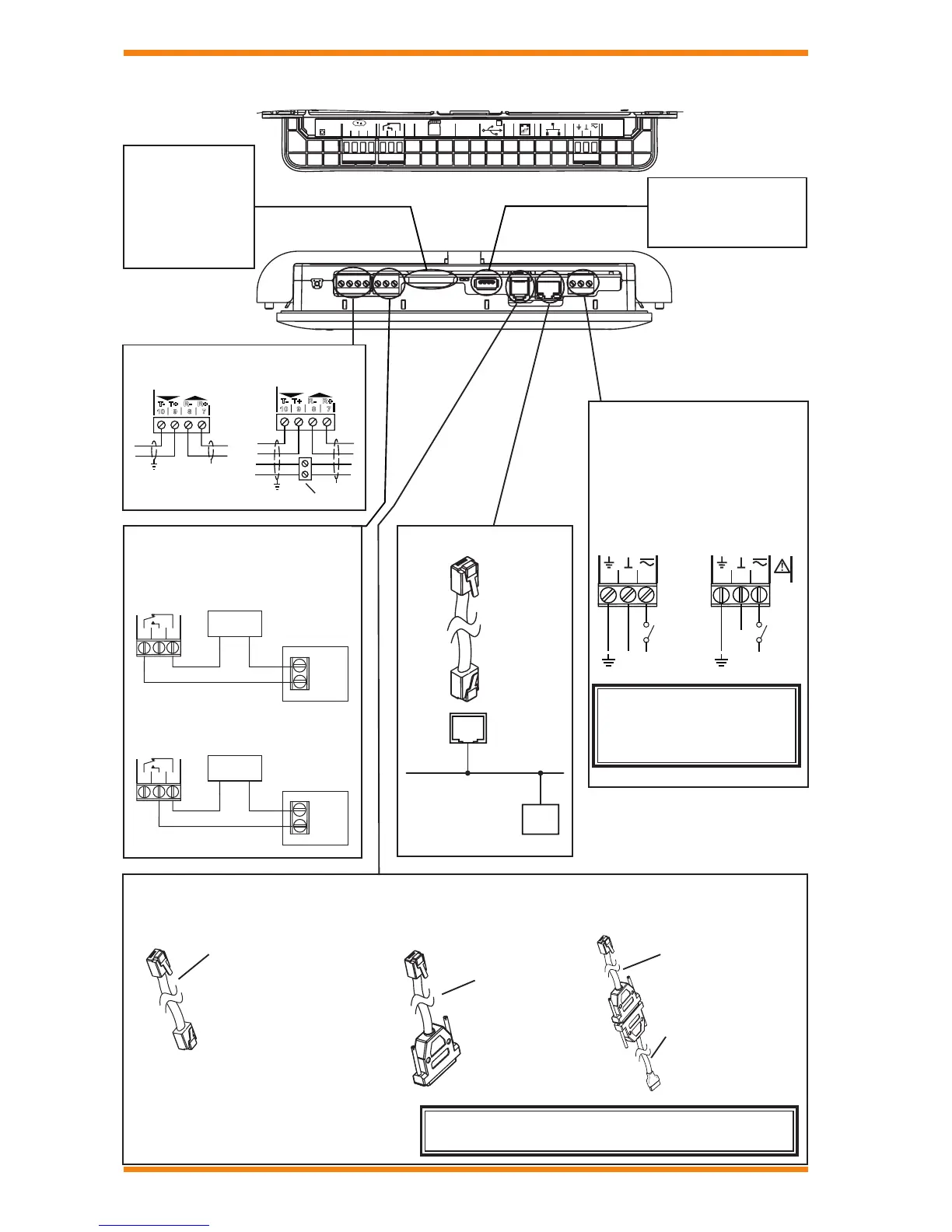

CONNECTIONS
Input Power Connector
For UL compliance the input power
connections must be made using 18
AWG or larger wire rated at least 90°C.
For USA/Canada use a UL Listed, Class
2, 24 Vac transformer
24Vac 24Vdc
RS232 Connector
USB A Connector
Used for connection of USB
memory stick.
Memory Card
Slot
Supplied with 2 Gbyte
memory card used
for conguration data.
Memory card must be
left inserted.
Current Loop Lan Connector
X
T
T
R
R
10 9 8 7
T- T+ R- R+
2 wire
X
T
T
R
R
T
T
R
R
10 9 8 7
T- T+ R- R+
4 wire
additional terminals
Ethernet Connector
Standard Ethernet cable
(Cat 5e unshielded)
100 m, 109 yds (max)
Ethernet
SERVICE
654
10 98 7
RS232
24 Vac/dc
321
A
RX+ RX- TX+ TX-
For IQ4, IQ3, IQ2xx, and some IQ1xx For CNC, IQ1xx with 25 way D
type socket
For IQ1xx with 5 in line plug
25 way D type to 5
in line socket cable
CAB LE /78 -1172
RJ11 to RJ11 crossover cable
CABLE/EJ105650
RJ11 to 25 way D type
male crossover cable
CABLE/EJ105651
WARNING: Do not attempt to supply power through the RS232
connector. This will cause damage to the unit.
RJ11 to 25 way D type
male crossover cable
CABLE/EJ105651
Relay Output Connector
For UL rating CU only cable must be used
Load on when Alarm not present, (Relay
off)
Load on when alarm present, (Relay
energised)
654
power
654
power
load
load
WARNING: This apparatus must
be earthed (grounded). using earth
(ground) terminal.
Do not apply 230V mains
power to this unit.
24 Vdc
24 Vac/dc
0 V
24 Vac
24 Vac/dc
321
