TRENDnet TEW-740APBO User Manual

© Copyright 2017 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide
TEW-740APBO / TEW-740APBO2K
6
Model Differences
TEW-740APBO
Single Unit Model
The single access point requires another TEW-740APBO H/W: v2.XR N300 additional
access point to create a WDS point-to-point wireless link.
Important Note:
Purchasing this model requires the access points to be properly configured to establish
the wireless link/bridged connection to each other and verifying connectivity first before
mounting the access points in their desired locations.
Single Unit Default Settings
LAN IP Address: 192.168.10.100
LAN Subnet Mask: 255.255.255.0
Mode: Access Point (AP) Mode
User: admin
Password: admin
TEW-740APBO2K
Preconfigured Bridge Kit Model
The two access points in the kit model are preconfigured to establish a WDS bridged
connection to each using a unique AES encryption key. For convenience, a unique
predefined administrator password is also assigned. The predefined AES encryption key

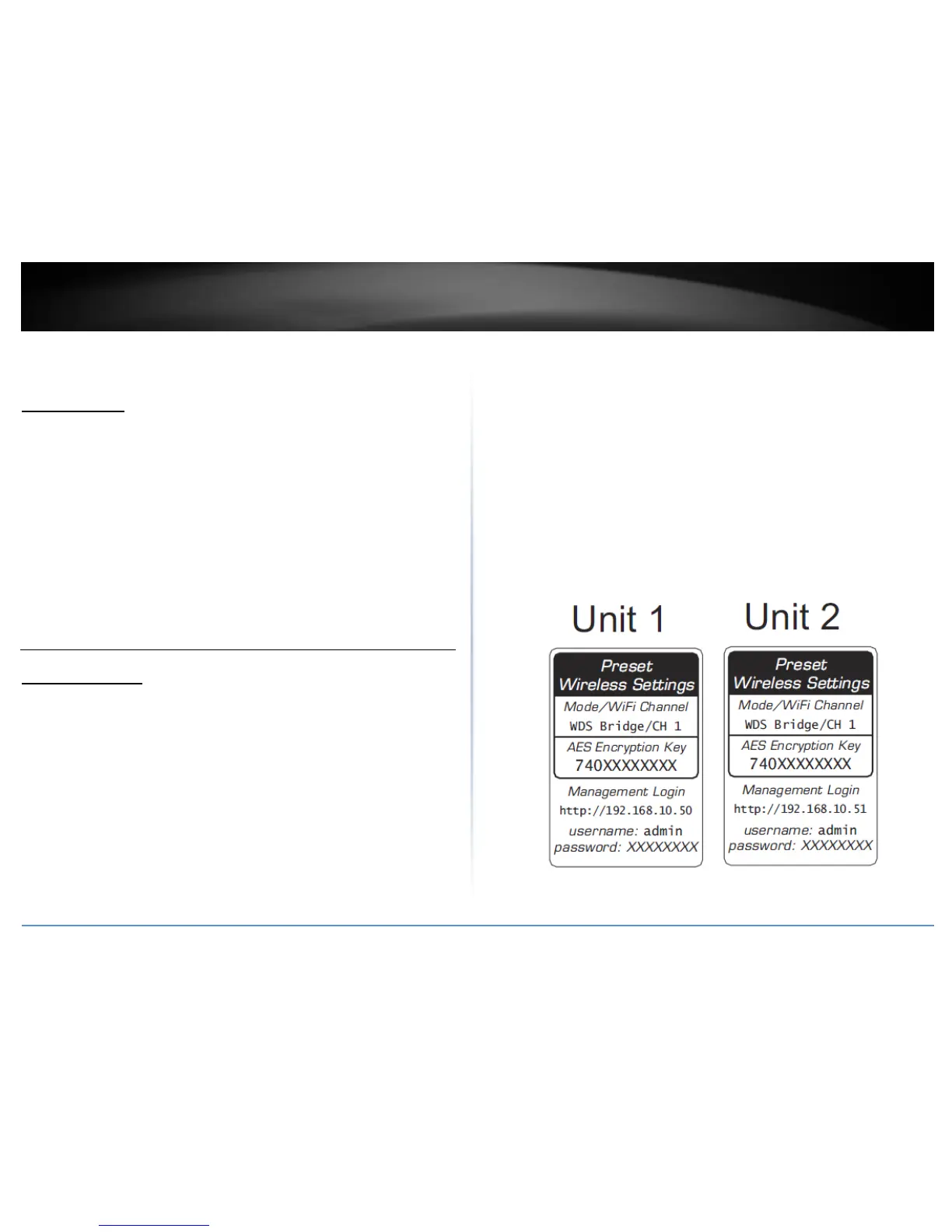

and administrator password can be found on the included wireless settings sticker or on
the device label.
Important Note:
Purchasing this model does not require any additional configuration to establish the
wireless link/bridged connection between the two access points but it is strongly
recommended that you verify connectivity first between the two access points first
before mounting them in their desired locations.
Preconfigured Kit Default Settings
TEW-740APBO #1
LAN IP Address: 192.168.10.50
LAN Subnet Mask: 255.255.255.0
Mode: WDS Bridge Mode
WDS AES Encryption Key: <predefined>
User: admin
Password: <predefined>
TEW-740APBO #2
LAN IP Address: 192.168.10.51
LAN Subnet Mask: 255.255.255.0
Mode: WDS Bridge Mode
WDS AES Encryption Key: <predefined>
User: admin
Password: <predefined>

TRENDnet TEW-740APBO Specifications

General

5 GHz	No
2.4 GHz	Yes
Modulation	16-QAM, 64-QAM, BPSK, CCK, DQPSK, DSSS, OFDM, QPSK
Networking standards	IEEE 802.11b, IEEE 802.11d, IEEE 802.11e, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i, IEEE 802.11n, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3u
Spread spectrum method	DSSS
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	300 Mbit/s
Placement	Pole, Wall
Certification	CE, FCC
International Protection (IP) code	IP67
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Security algorithms	HTTPS, SSID, WDS, WPA-PSK, WPA2, WPA2-PSK, WPA2-RADIUS
Number of SSID supported	8
Service Set Identifier (SSID) features	SSID broadcast on/off
Antenna features	Integrated antenna
Antenna gain level (max)	10 dBi
Input current	0.6 A
Output current	0.5 A
Output voltage	48 V
AC input voltage	100 - 220 V
AC input frequency	50 - 60 Hz
Power consumption (max)	22 W
Operating temperature (T-T)	-30 - 60 °C
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	54 mm
Width	125 mm
Height	218 mm
Weight	424 g
