7

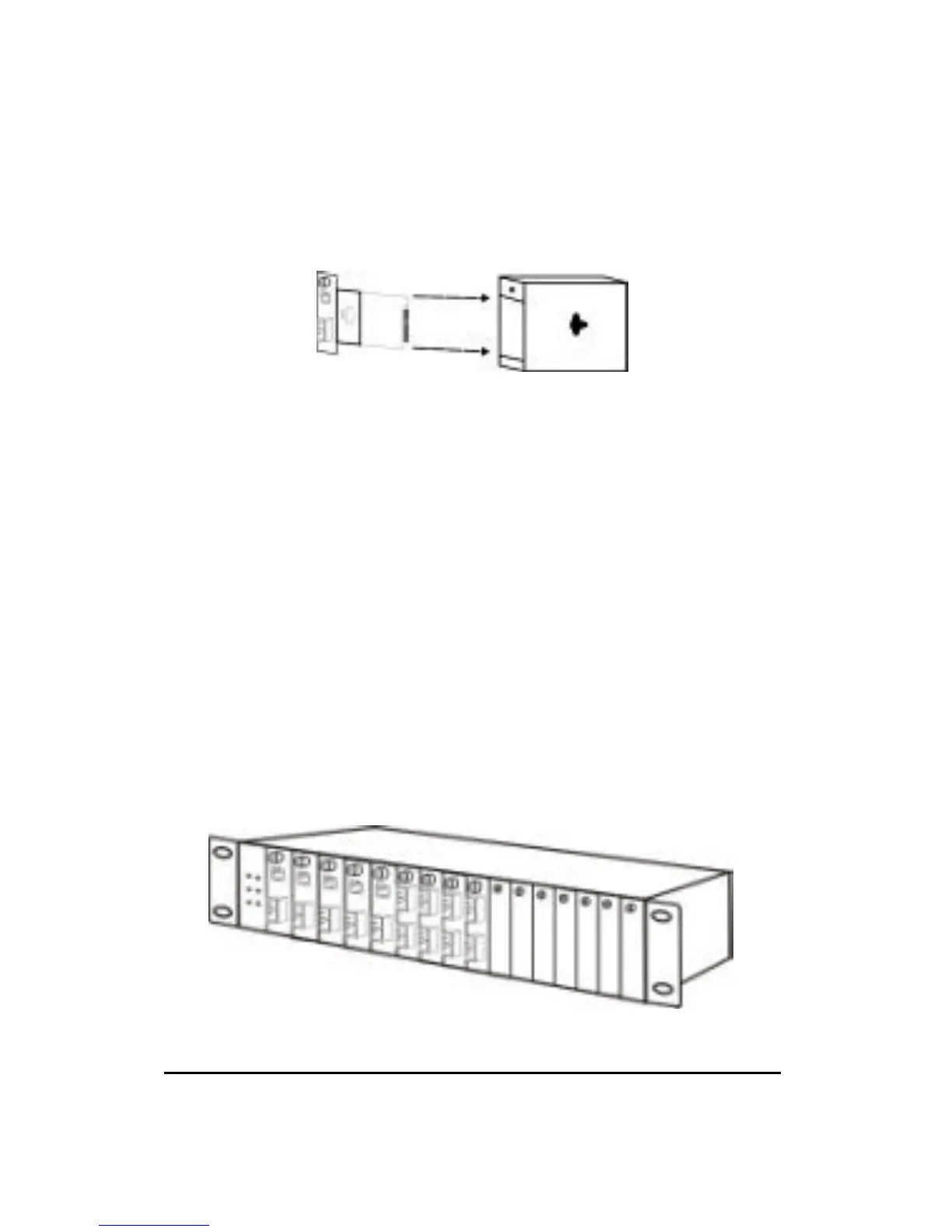

Installing in a Chassis
The Converter can be fit into any of the expansion slots
on a special designed chassis (TFC-1600).
? First, install the converter onto a carrier supplied with
the chassis:
Step 1- Locate a vacant slot on the chassis, unscrew
the thumbscrew, and remove the dust cover
(save the cover).
Step 2- Remove the screw on the converter as shown
above pull put the converter board.
Step 3- Insert the converter board in the empty slot,
make sure it is fully seated to the slot, and
tighten the thumbscrew to secure it on the
chassis.
