TRENDnet User’s Guide
TU-S9
2
Product Hardware Features

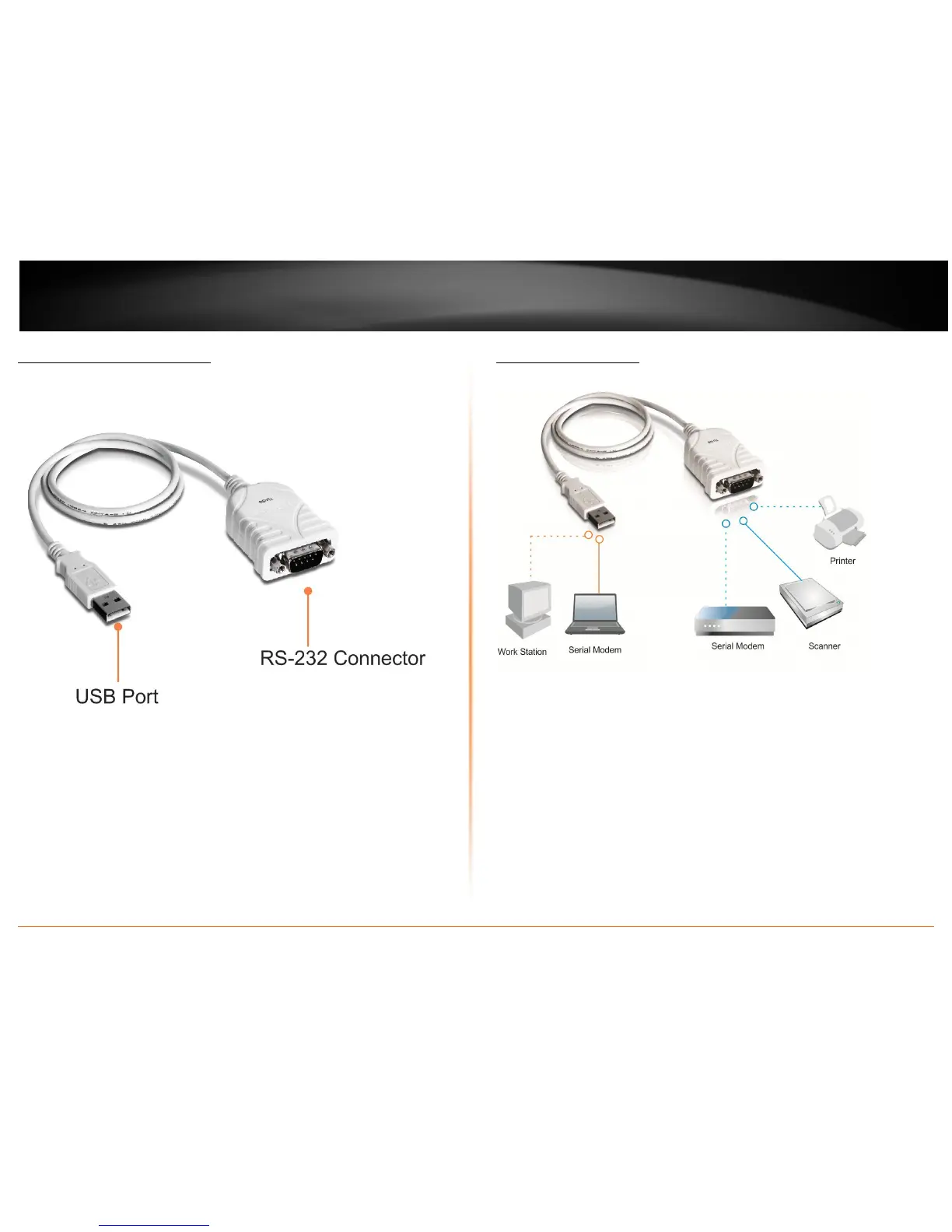

Product View
 USB Port - Connect the USB Port to your computer
 RS-232 Connector– Connect the RS-232 connector to your Series Device.
Application Diagram
