Trevi 106 - FILTRATION SYSTEM ASSEMBLY; Position Motor and Filter; Install Filter Tank and Laterals; Connect Filter Hoses

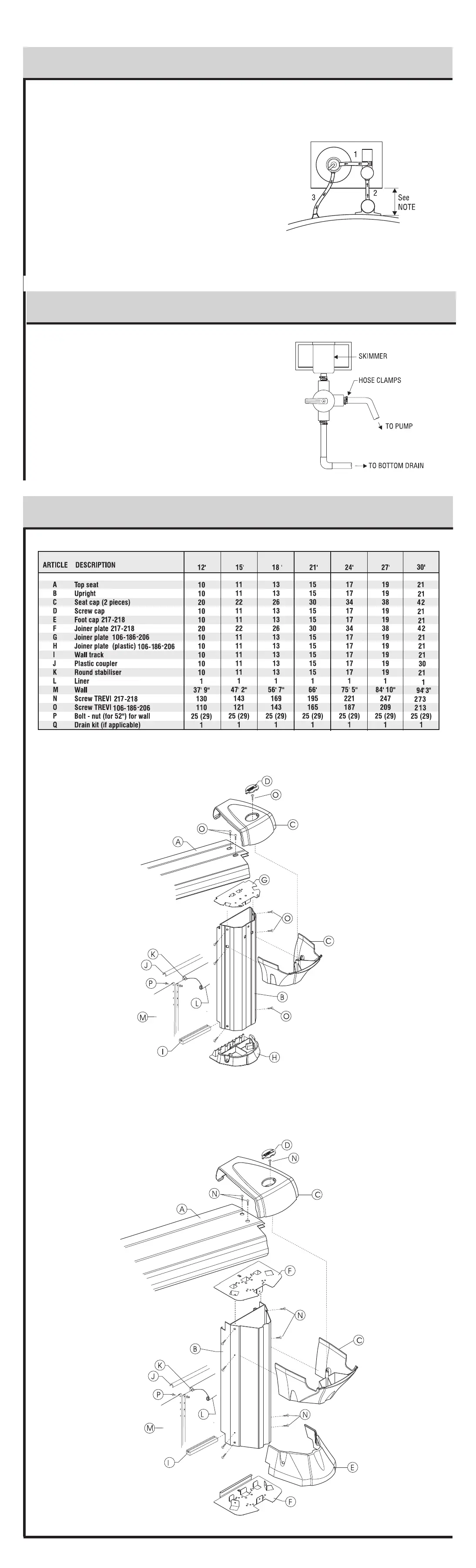

PARTS LIST
14
TREVI 106 / 186 / 206 MODELS
TREVI 217 / 218 MODELS
Install necessary nozzles. Then, connect hoses using col-
l
ars.
1-The first hose goes from the top of the pump to the side
of the filter head.
2
-The second one goes from the motor to the skimmer (or
to the bottom drain valve).
3-The third goes from the front of the filter head to the
water return or from the front of the chlorinator to the
w
ater return.
A back wash hose may be placed behind the filter head.
If there is a chlorinator and/or heat pump, they must be
assembled at the filter exit.
FILTRATION SYSTEM ASSEMBLY (continued)
12
Insert threaded nozzles, if applicable, in order to be able to
s
crew the valve in the skimmer.
Connect the drain hose to the bottom nozzle. Connect the
motor hose to the side nozzle.
The threads on all threaded nozzles must be covered with
teflon tape prior to installing in order to prevent water
l
eaks. Teflon is applied to the threads as follows: little or
none on the first few threads (to facilitate introduction)
and several layers towards the end threads (for better
watertightness).
DRAIN VALVE ASSEMBLY (if applicable)
13
