5.- COMBUSTION PRODUCTS EXHAUSTION
5.1.- Combustion products exhaustion and air intake dual-duct device ø80 / ø100 (typr
C53)
In this type, the combustion products exhaustion and air intake are carried out with
separated pipes of Ø80/100mm, by means of the dual-duct outlet Kits of Ø80/100 code
CGAS000265. It is the default type of exhaustion for boilers TRO Evolution System.
The maximum length of pipe that can be installed is 12 metres (TRO Evolution 40 System) and
15 metres (TRO Evolution 20/30 System) which is the result from adding the pipe metres for the
air intake and those of the combustion products exhaustion. Each elbow of 90°, or two of 45°,
reduces the available length by 1 metre, and 1 metre of horizontal pipe represents 2 metres
of vertical pipe.
It is recommended that the flue gases outlet pipe be fitted slightly upwardly-inclined 2º to 3º
thus preventing water and condensate projections from being ejected outside.

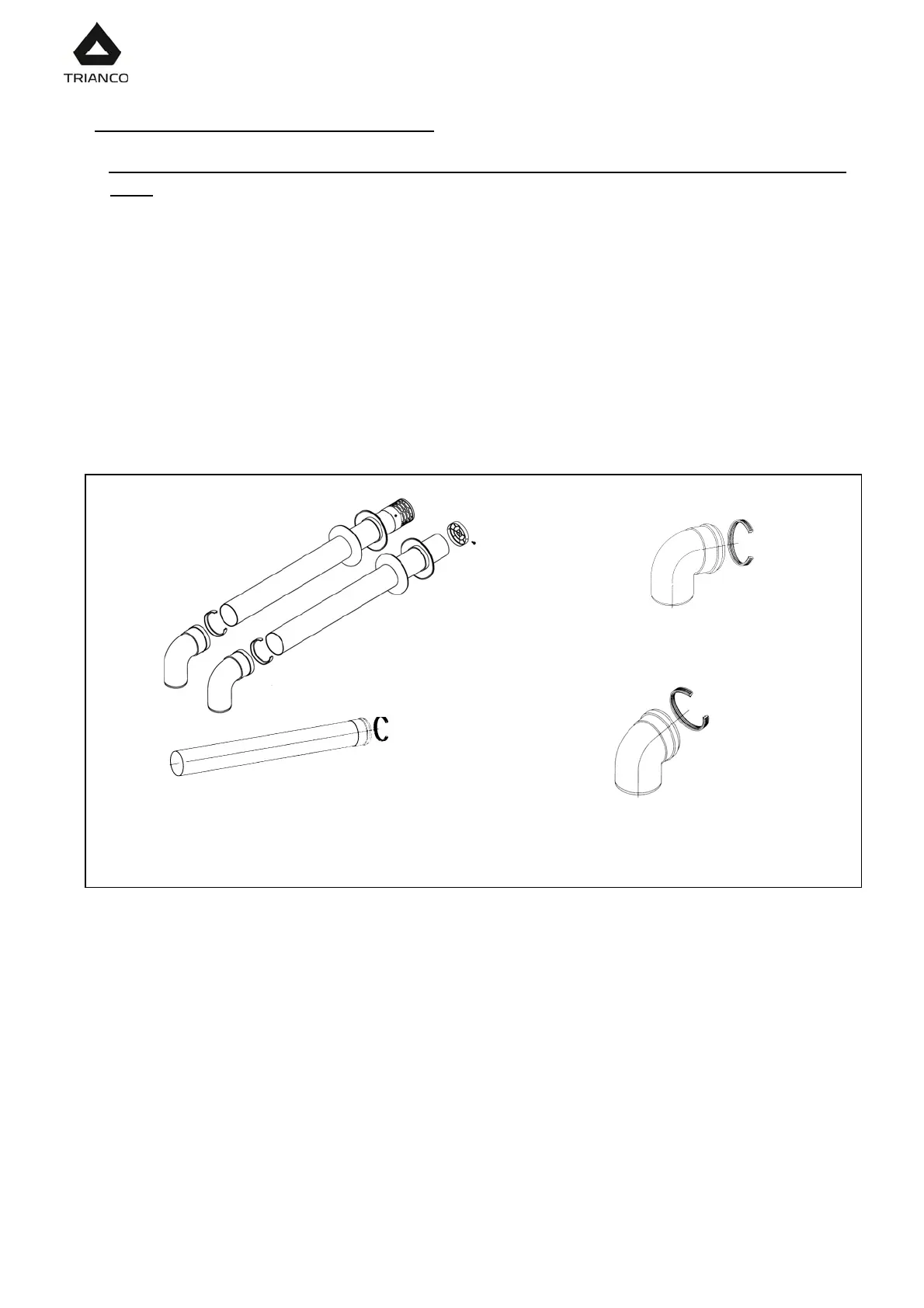

Dual-duct outlet Kit
80/100 inox
Cod. CGAS000 265
1m. duct
80 inox. Cod. CGAS000145
1m. duct 100 inox. Cod. CGAS000 268
1m. duct 100 PP Cod. CGAS0 00355
90º elbow
80 inox Co d. CGAS0 00147
90º elbow 100 inox Cod. CGAS000267
90º elbow 100 P P Cod. CGAS000358
45 º elbow
80 inox. Cod. CGAS000148
45º elbow 100 inox. Cod. CGAS000266
45º elbow 100 P P Cod. CGAS000357
Examples of installation:
