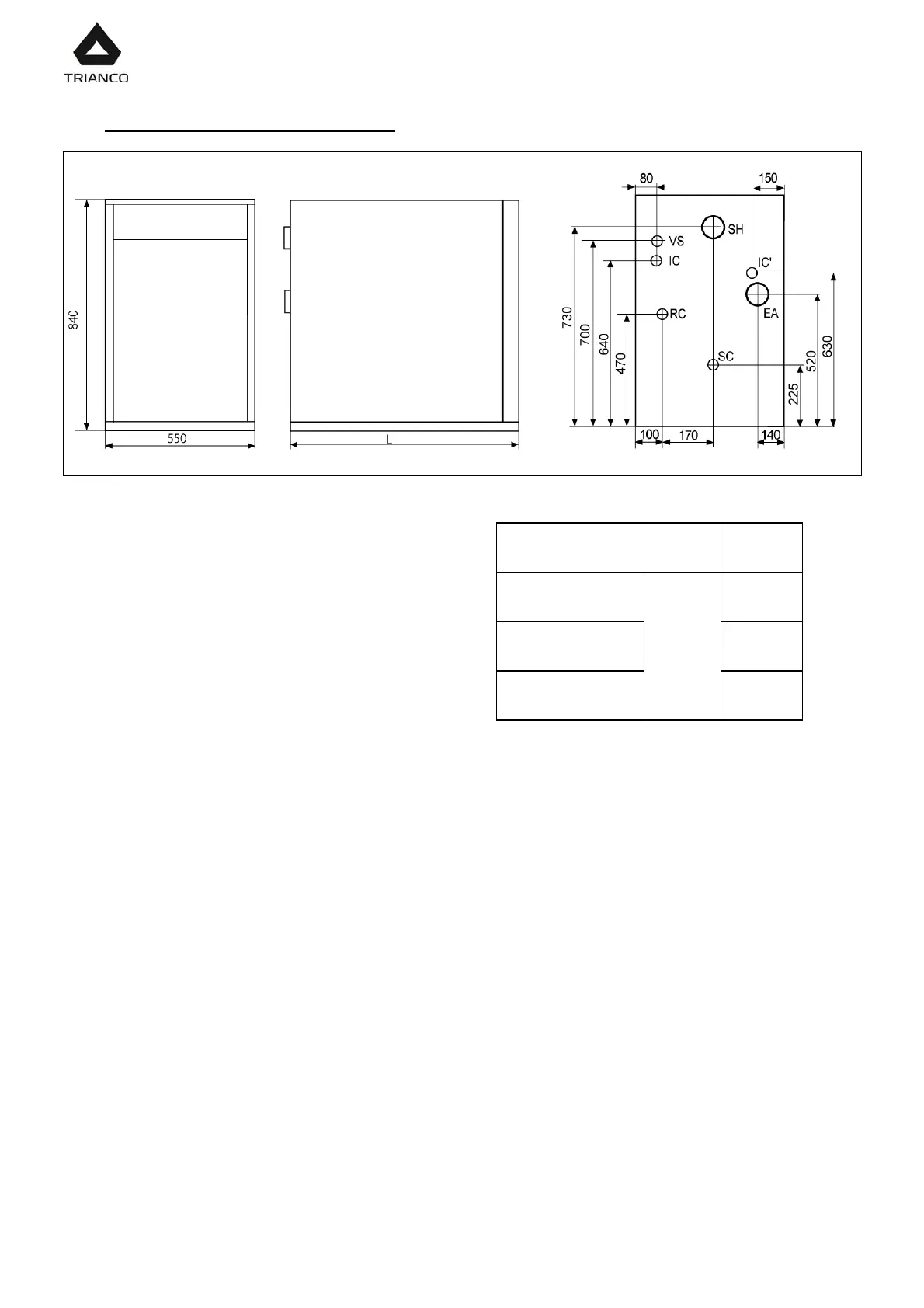

20.- DIAGRAMS AND MEASUREMENTS
IC: Heating outlet.
IC': Optional heating outlet.
RC: Heating return.
MODEL
IC, IC'
RC
L MEAS.
VS: Safety valve.
TRO Evolution 20
System
755
SC: Condensation water outlet, 1" H.
TRO Evolution 30
System
855
SH: Fume exhaustion duct.
TRO Evolution 40
System
1"M
955
EA: Air intake, Ø80.
