Wiring the FMS-2000C controller display to the FMS-2000C controller

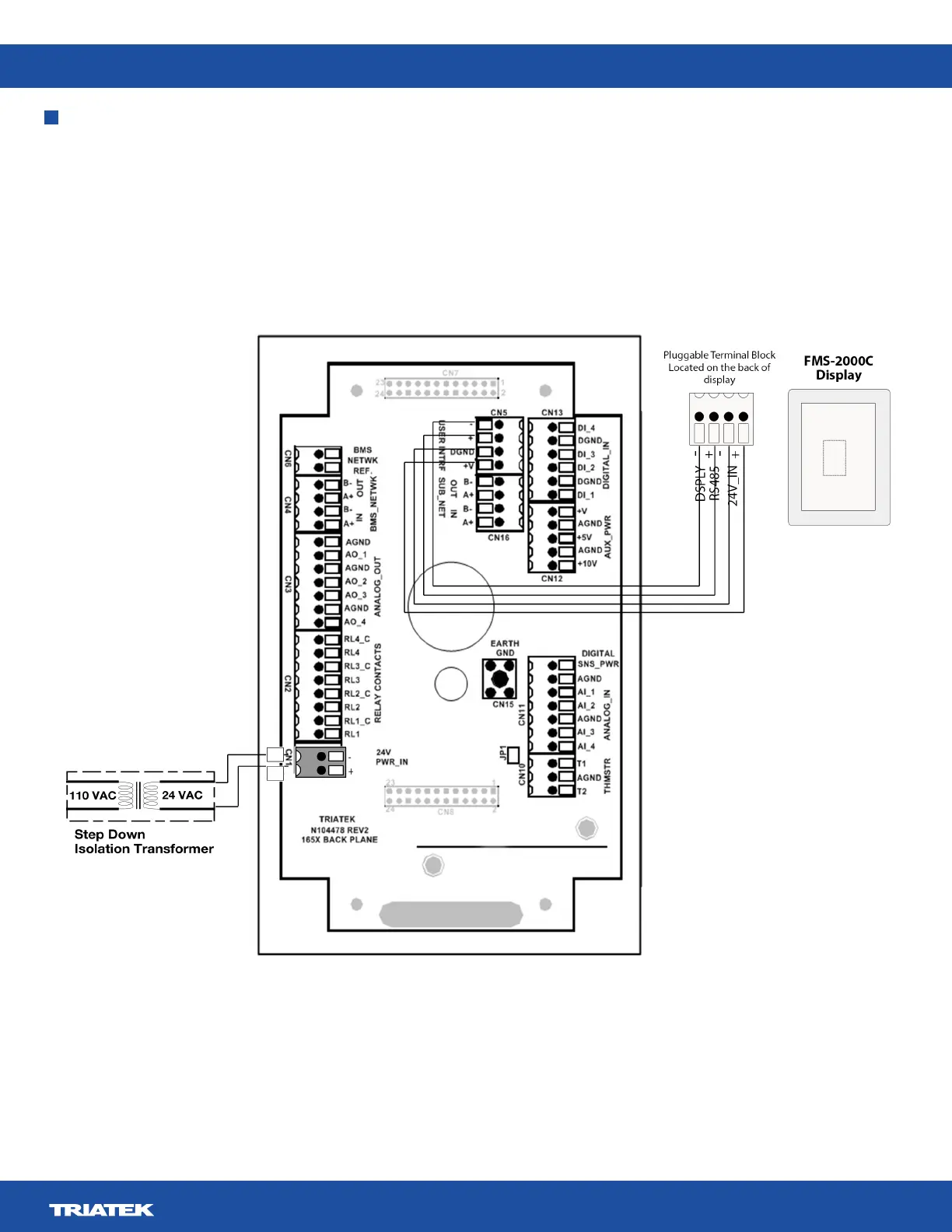

Figure 11: Display to controller wiring diagram
